MHO362FAD67.0000MHZ datasheet, PDF

MHO362FAD67.0000MHZ: DescriptionOscillator,; CategoryPassive components oscillator; File Size53KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

MHO362FAD67.0000MHZ Overview

Oscillator,

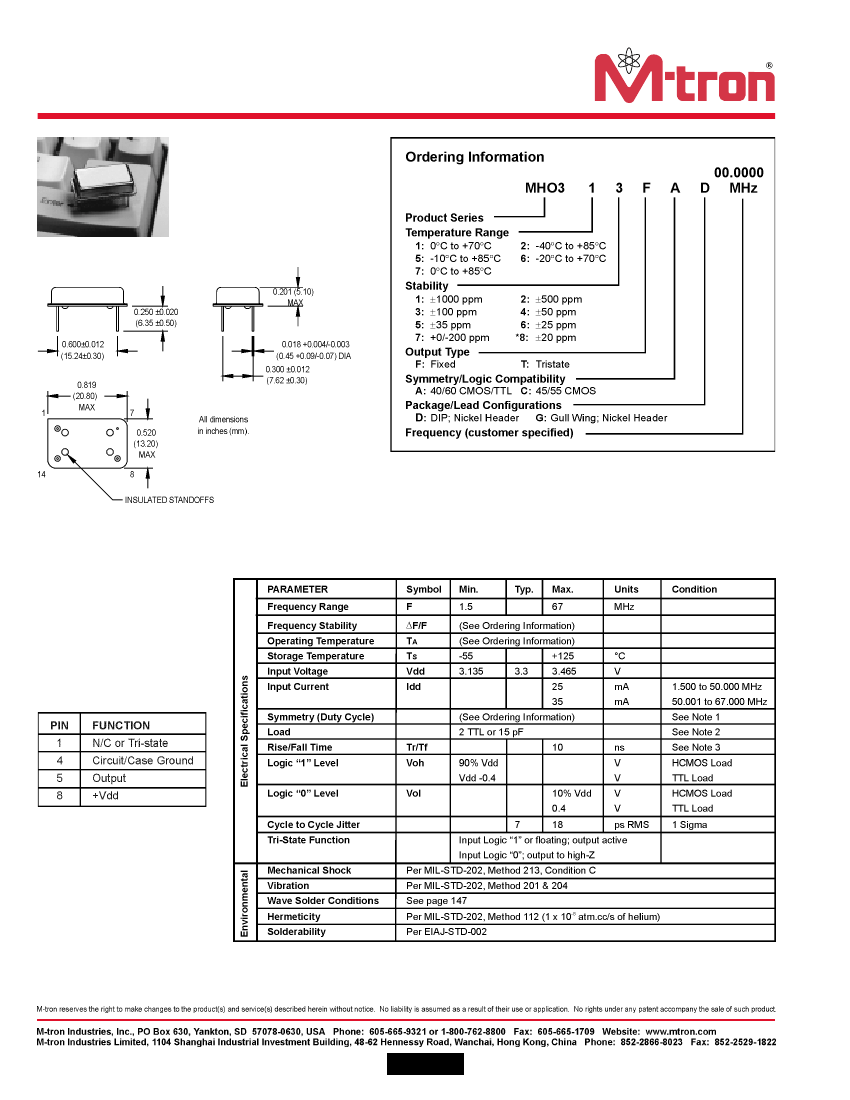

MHO3 Series

14 DIP, 3.3 Volt, HCMOS/TTL, Clock Oscillators

*Contact factory for availability.

See page 146 for gull wing configuration.

Pin Connections

1. Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with HCMOS load.

2. TTL load - See load circuit diagram #1 on page 148. HCMOS load - See load circuit diagram #2 on page 148.

3. Rise/Fall times are measured between 0.4 V and 2.4 V with TTL load, and between 10% Vdd and 90% Vdd with HCMOS load.

120
