QHG-22B Series
90 POWER DIVIDERS / COMBINERS
1 to 300 MHz / 30% Bandwidth Models / Low Insertion Loss / Low Profile Hermetic Package /
SMD
Phasing Diagram - B
1
1
2
3
4
-- 90°
0°
Isol.
Isol.
0°
-- 90°
2
-- 90°
3
0°
Isol.
4
Isol.
0°
-- 90°
PRINCIPAL SPECIFICATIONS
Model
Number
QHG-22B-***B
Center
Frequency, f
o
Frequency
Performance
GENERAL SPECIFICATIONS
Coupling:
Impedance:
Isolation:
-- 3 dB nom.
50
Ω
nom.
20 dB min.,
25 dB typ.
1- 300 MHz
±
15% of f
o
For complete model number replace *** with desired center frequency
General Notes:
1. The QHG-22B series covers 1 to 300 MHz in 30% bandwidth
units using a special lumped element design to minimize size
and cost. The low 0.175" profile surface-mount package which
houses these 3 dB Quadrature Hybrids is ideally suited to
terrestrial and aerospace applications alike where hermeticity
and inherent package reliability are essential.
Insertion Loss:
<75 MHz:
0.5 dB max., 0.3 typ.
>75 MHz:
0.75 dB max., 0.5 typ.
Phase Tolerance: 90°
±
2° max.
Amplitude Balance: 0.5 dB max.,
0.25 dB typ.
VSWR (In/Out):
1.3:1 max.
CW Input:
4 W max.
(1.2:1 VSWRout)
(@ 25°C
;
derated to 1W @ 85°C)
Weight, nominal: 0.1 oz (2.8 g)
Operating Temp: -- 55° to +85°C

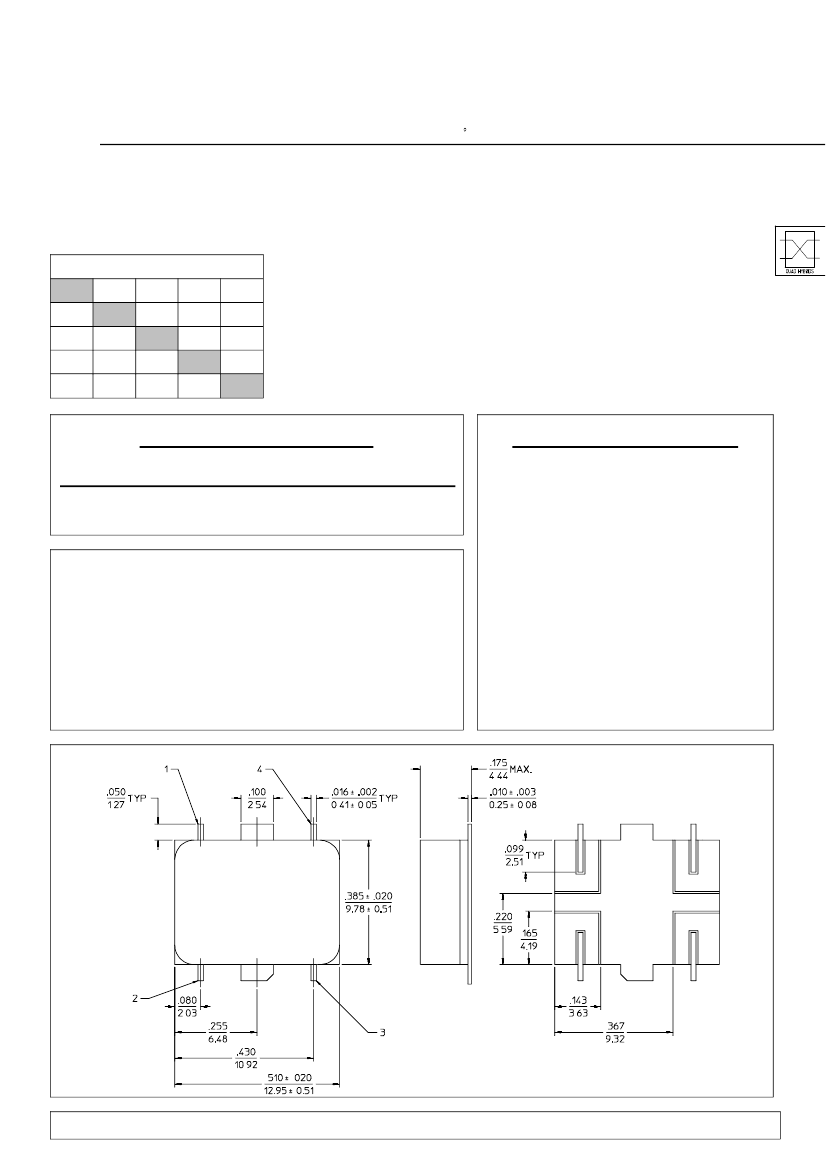

Surface Mount B-Package Outline
NOTES:
1. Tolerance on 3 place decimals
±.010(.25)
except as noted.
2. Dimensions in inches over millimeters.
3. Lead dimensions apply only at body.
20Feb96
For further information contact
MERRIMAC / 41 Fairfield Pl., West Caldwell, NJ, 07006 /
973-575-1300 / FAX 973-575-0531
