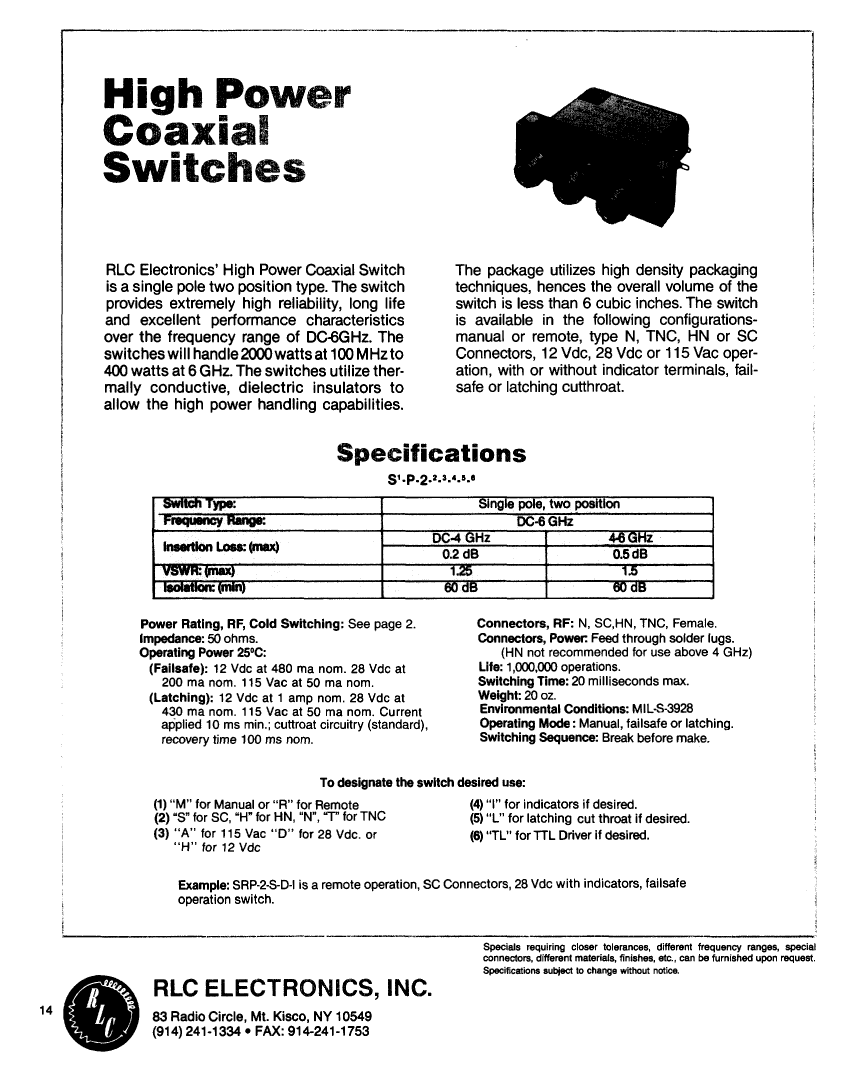

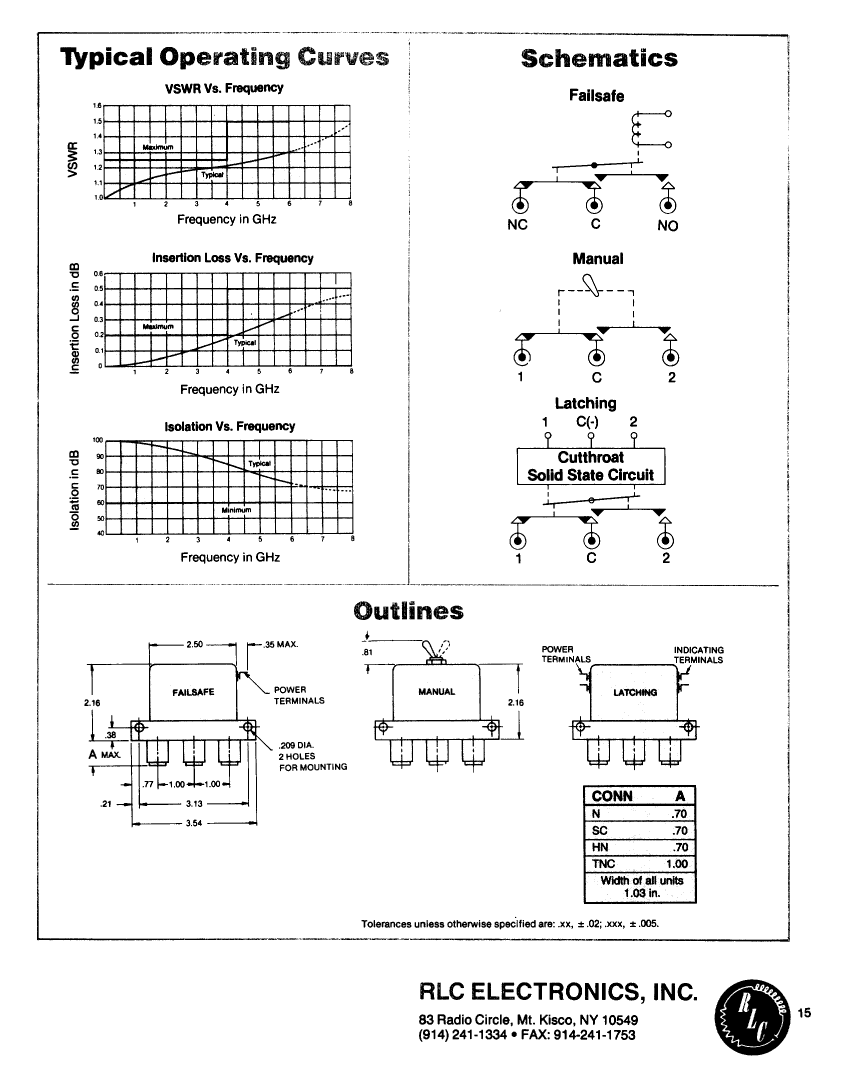

SM-P-2-N-H-L-TL datasheet, PDF

SM-P-2-N-H-L-TL: DescriptionRF Coaxial Relay, SPDT, Latched, 1A (Coil), 12VDC (Coil), 12000mW (Coil), 6000MHz, DC Input, DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size152KB，2 Pages; ManufacturerReliable Capacitors Inc

Download Datasheet Parametric View All

SM-P-2-N-H-L-TL Overview

RF Coaxial Relay, SPDT, Latched, 1A (Coil), 12VDC (Coil), 12000mW (Coil), 6000MHz, DC Input, DC Output, Panel Mount

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TNC, BUILT-IN TTL DRIVER
body width	26.16 mm
body height	54.86 mm
Body length or diameter	89.92 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	1 A
Coil power	12000 mW
Coil resistance	12 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Electrical life	1000000 Cycle(s)
Maximum insertion loss	0.5 dB
Maximum isolation	60 dB
Manufacturer's serial number	SM
Installation features	PANEL MOUNT
Maximum operating frequency	6000 MHz
Minimum operating frequency
physical size	89.92mm X 26.16mm X 54.86mm
Relay action	LATCHED
Relay function	SPDT
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	20 ms
Termination type	CONNECTOR
voltage standing wave ratio	1.5
Base Number Matches	1
