Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> HD61105

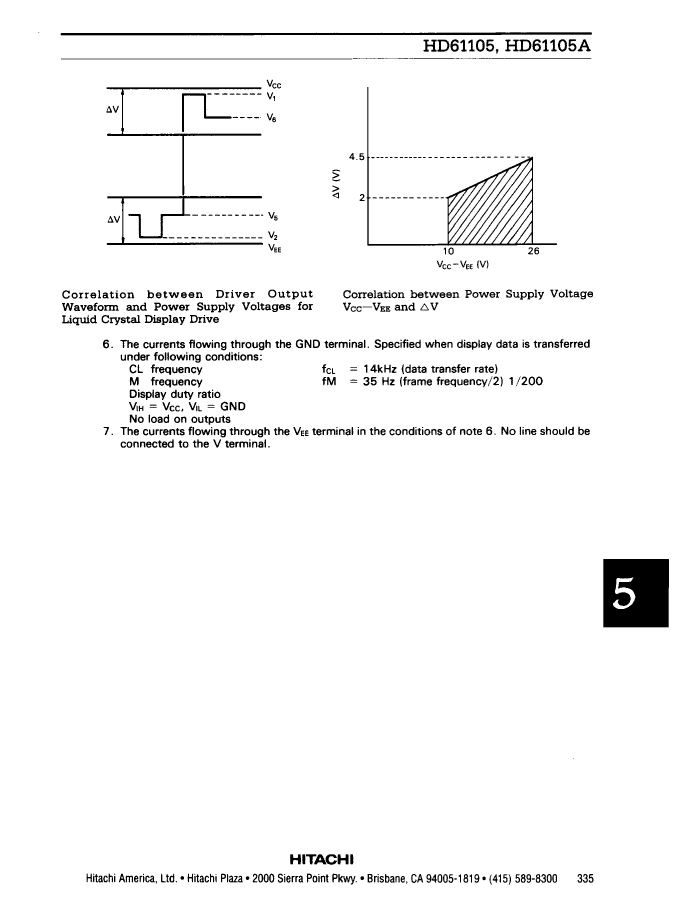

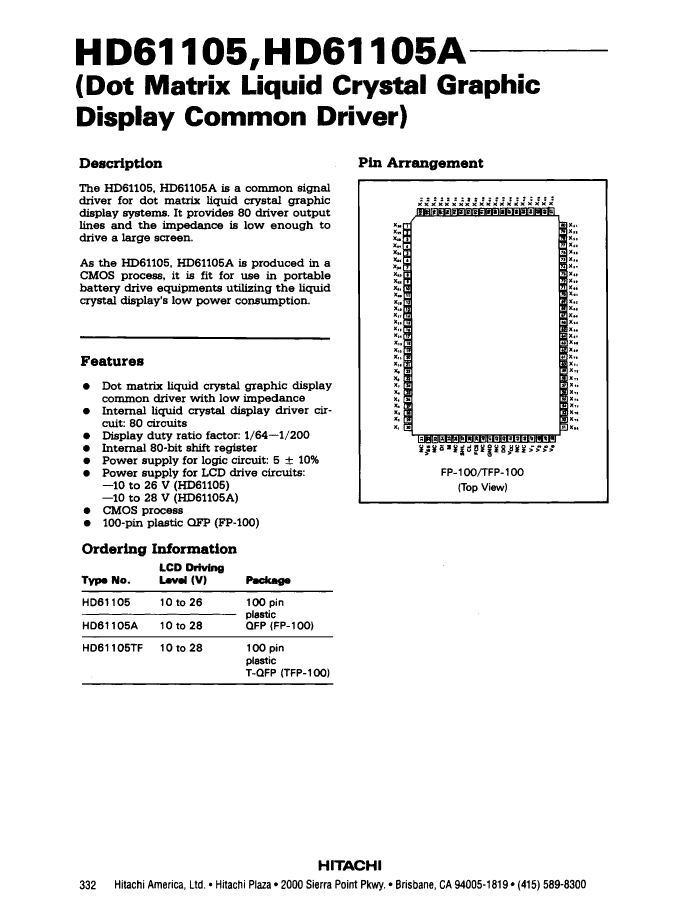

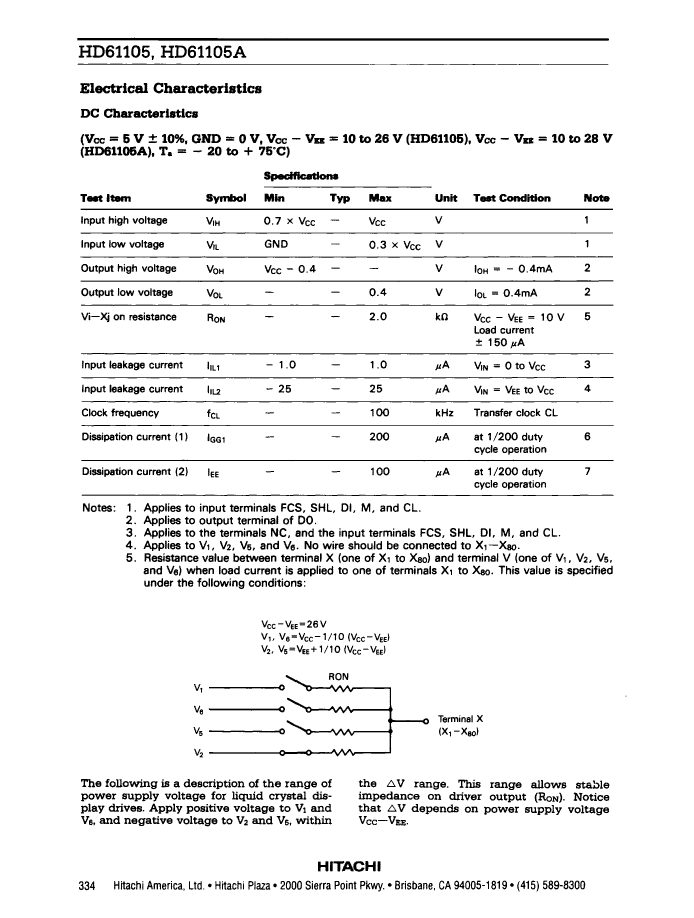

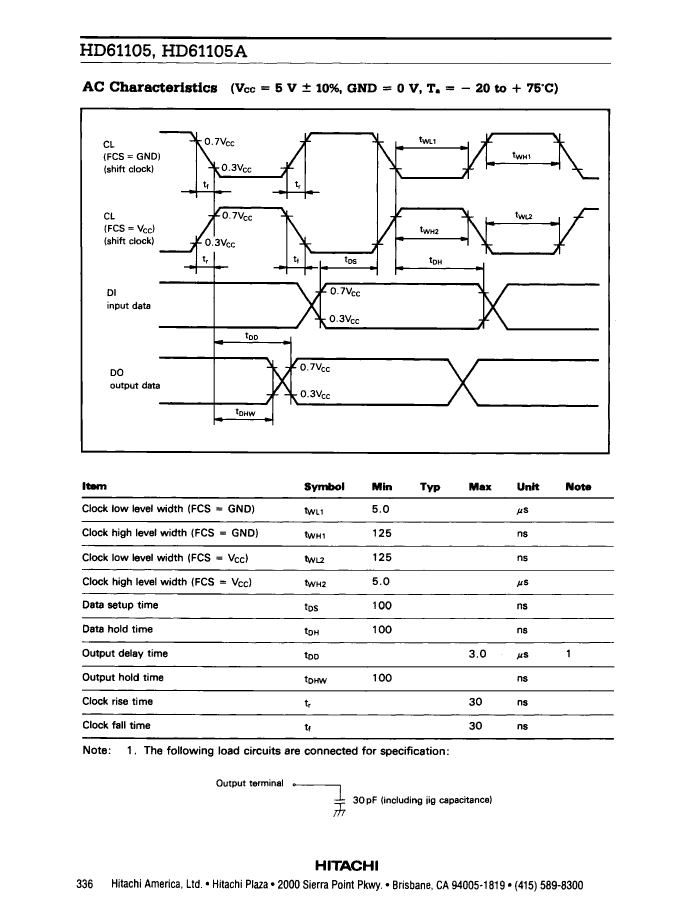

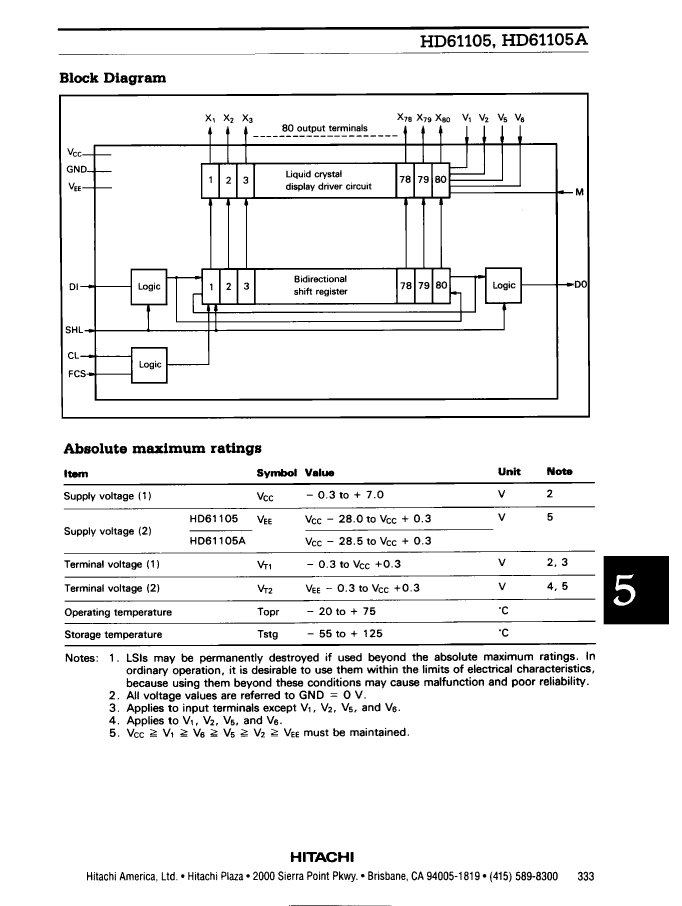

Preview

HD61105: DescriptionLiquid Crystal Driver, 80-Segment, CMOS, PQFP100, PLASTIC, QFP-100; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size370KB，18 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HD61105 Overview

Liquid Crystal Driver, 80-Segment, CMOS, PQFP100, PLASTIC, QFP-100

HD61105 Parametric

Parameter Name	Attribute value
Parts packaging code	QFP
package instruction	QFP,
Contacts	100
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SELECTABLE DISPLAY DUTY RATIO 1/64 TO 1/200
data entry mode	SERIAL
display mode	DOT MATRIX
Input properties	STANDARD
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	R-PQFP-G100
length	20 mm
Multiplex display function	NO
Nominal negative supply voltage	-15 V
Number of functions	1
Number of segments	80
Number of terminals	100
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Output characteristics	TOTEM-POLE
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	3.1 mm
Maximum slew rate	0.2 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	14 mm
minfmax	0.1 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

HD61105 Related Products

	HD61105	HD61105TF	HD61105A
Description	Liquid Crystal Driver, 80-Segment, CMOS, PQFP100, PLASTIC, QFP-100	Liquid Crystal Driver, 80-Segment, CMOS, PQFP100, PLASTIC, TQFP-100	Liquid Crystal Driver, 80-Segment, CMOS, PQFP100, PLASTIC, QFP-100
Parts packaging code	QFP	QFP	QFP
package instruction	QFP,	TFQFP,	QFP,
Contacts	100	100	100
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	SELECTABLE DISPLAY DUTY RATIO 1/64 TO 1/200	SELECTABLE DISPLAY DUTY RATIO 1/64 TO 1/200	SELECTABLE DISPLAY DUTY RATIO 1/64 TO 1/200
data entry mode	SERIAL	SERIAL	SERIAL
display mode	DOT MATRIX	DOT MATRIX	DOT MATRIX
Input properties	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	R-PQFP-G100	S-PQFP-G100	R-PQFP-G100
length	20 mm	14 mm	20 mm
Multiplex display function	NO	NO	NO
Nominal negative supply voltage	-15 V	-15 V	-15 V
Number of functions	1	1	1
Number of segments	80	80	80
Number of terminals	100	100	100
Maximum operating temperature	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
Output characteristics	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	TFQFP	QFP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	FLATPACK	FLATPACK, THIN PROFILE, FINE PITCH	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.1 mm	1.2 mm	3.1 mm
Maximum slew rate	0.2 mA	0.2 mA	0.2 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.5 mm	0.65 mm
Terminal location	QUAD	QUAD	QUAD
width	14 mm	14 mm	14 mm
minfmax	0.1 MHz	0.1 MHz	0.1 MHz
Base Number Matches	1	1	1
