SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SD1459
DESCRIPTION
·With TO-220 package
·High allowable collector dissipation.
·Complement to type 2SB1037
APPLICATIONS
·Color TV vertical output application
·Sound output application
PINNING
PIN
1
2
3
Base
Collector;connected to
mounting base
Emitter
DESCRIPTION
Absolute maximum ratings (Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector current-peak
CONDITIONS
Open emitter
Open base
Open collector
VALUE
150
150
5
1.5
3.0
2.0
P
C
Collector power dissipation
T
C
=25
T
j
T
stg
Junction temperature
Storage temperature
30
175
-55~175
W
UNIT
V
V
V
A
A
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SD1459
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter breakdown voltage
Collector-emitter saturation voltage
Base-emitter saturation voltage
Collector cut-offcurrent
Emitter cut-offcurrent
DC current gain
Transition frequency
CONDITIONS
I
C
=10mA ; I
B
=0
I
C
=0.5A, I
B
=50mA
I
C
=0.5A, I
B
=50mA
V
CB
=120V;I
E
=0
V
EB
=5V;I
C
=0
I
C
=0.3A ; V
CE
=5V
I
C
=0.1A ; V
CE
=5V
70
8
MIN
150
1.5
1.2
10
10
200
MHz
TYP
MAX
UNIT
V
V
V
µA
µA
SYMBOL
V
(BR)CEO
V
CEsat
V
BEsat
I
CBO
I
EBO
h
FE
f
T
h
FE
classifications
Q
70-140
R
100-200
2
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
PACKAGE OUTLINE
2SD1459

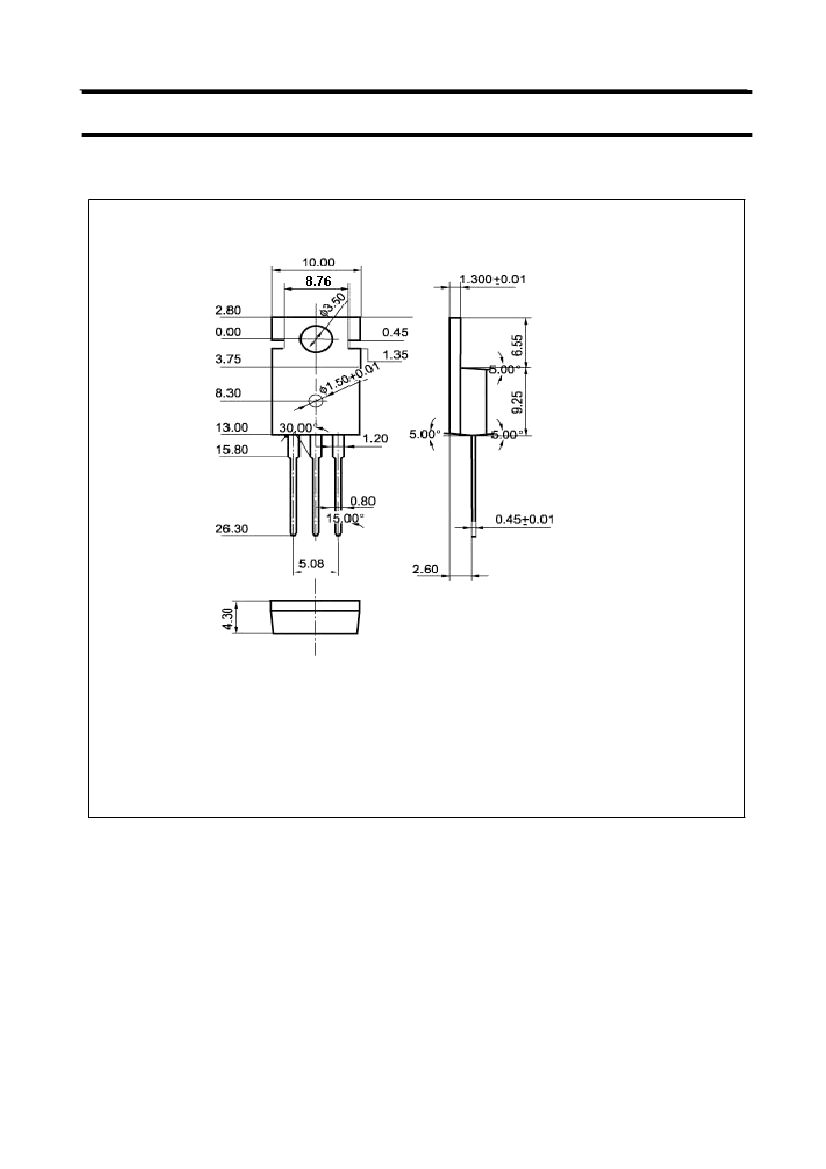

Fig.2 outline dimensions (unindicated tolerance:±0.10 mm)
3
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SD1459
4
