SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SD1555
DESCRIPTION
·With TO-3P(H)IS package
·Built-in
damper diode
·High
voltage ,high speed
·Low
collector saturation voltage
APPLICATIONS
·For color TV horizontal output applications
PINNING
PIN
1
2
3
DESCRIPTION
Base
Collector
Emitter
Fig.1 simplified outline (TO-3P(H)IS) and symbol
Absolute maximum ratings (Ta=25 )
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature
T
C
=25
CONDITIONS
Open emitter
Open base
Open collector
VALUE
1500
600
5
5
2.5
50
150
-55~150
UNIT
V
V
V
A
A
W
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Emitter-base breakdown voltage
Collector-emitter saturation voltage
Base-emitter saturation voltage
Collector cut-off current
DC current gain
Transition frequency
Collector output capacitance
Diode forward voltage
Fall time
CONDITIONS
I
E
=0.2A , I
C
=0
I
C
=4A ;I
B
=0.8A
I
C
=4A; I
B
=0.8A
V
CB
=500V; I
E
=0
I
C
=1A ; V
CE
=5V
I
C
=0.1A ; V
CE
=10V
I
E
=0 ; V
CB
=10V;f=1MHz
I
F
=5A
I
CP
=4A ;I
B1
(end)
=0.8A
8
MIN
5
2SD1555
SYMBOL
V
(BR)EBO
V
CEsat
V
BEsat
I
CBO
h
FE
f
T
C
OB
V
F
t
f
TYP.
MAX
UNIT
V
3.0
5.0
1.5
10
V
V
µA
3
165
2.0
0.5
1.0
MHz
pF
V
µs
2
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors

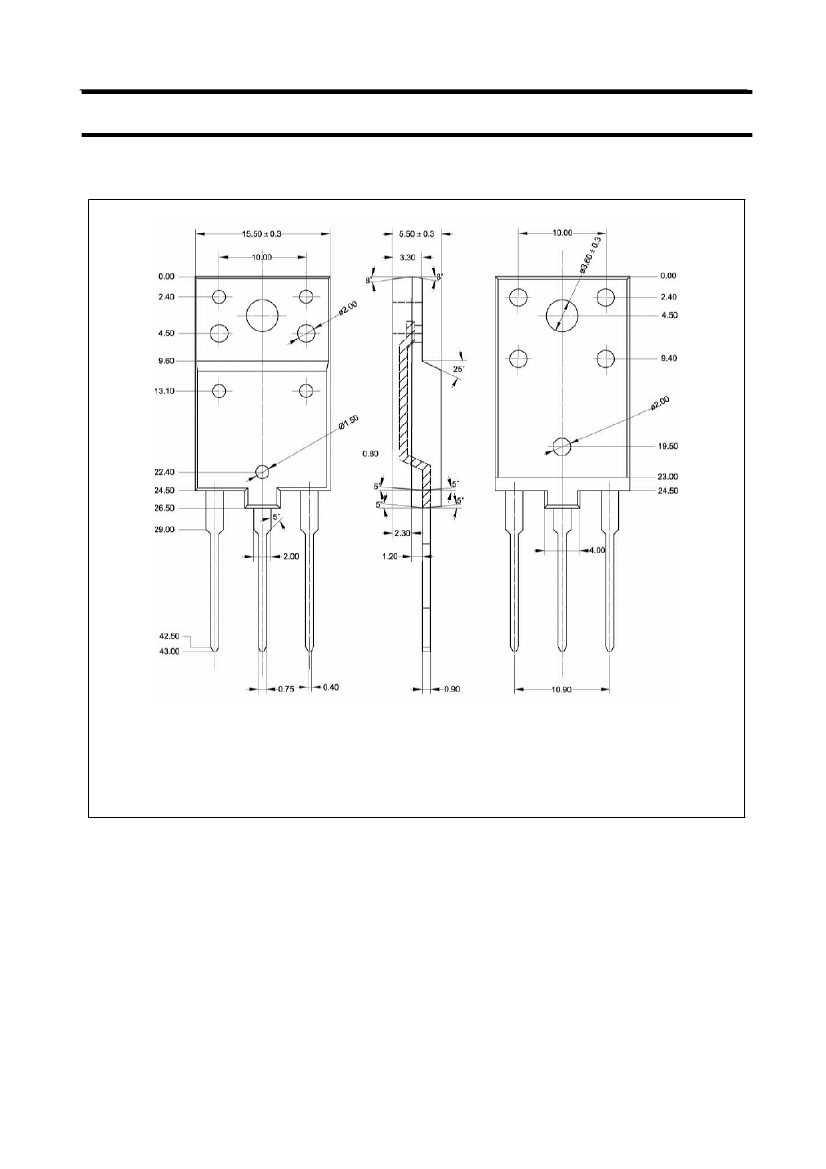

PACKAGE OUTLINE
2SD1555
Fig.2 Outline dimensions (unindicated tolerance:±0.15 mm)
3
