SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC1002
DESCRIPTION
·With TO-66 package
·High voltage
·High transition frequency
APPLICATIONS
·For color TV video output applications
PINNING (See Fig.2)
PIN
1
2
3
Base
Emitter
Fig.1 simplified outline (TO-66) and symbol
Collector
DESCRIPTION
Absolute maximum ratings(Ta=25
? )
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
P
T
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Total power dissipation
Junction temperature
Storage temperature
T
C
=25?
CONDITIONS
Open emitter
Open base
Open collector
VALUE
300
300
5
50
11
150
-55~150
UNIT
V
V
V
mA
W
?
?
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25? unless otherwise specified
SYMBOL
PARAMETER
CONDITIONS
MIN
2SC1002
TYP.
MAX
UNIT
V
CEO(SUS)
V
(BR)EBO
V
CEsat
V
BEsat
I
CEO
I
EBO
h
FE
f
T
Collector-emitter sustaining voltage
Emitter-base breakdown voltage
Collector-emitter saturation voltage
Base-emitter saturation voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Transition frequency
I
C
=0.1mA ; I
B
=0
I
E
=1µA; I
C
=0
I
C
=20mA; I
B
=2mA
I
C
=20mA; I
B
=2mA
V
CE
=200V; I
B
=0
V
EB
=5V; I
C
=0
I
C
=10mA ; V
CE
=10V
I
C
=10mA ; V
CE
=20V
300
5
1.0
1.5
1
1
40
60
200
V
V
V
V
µA
µA
MHz
2
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors

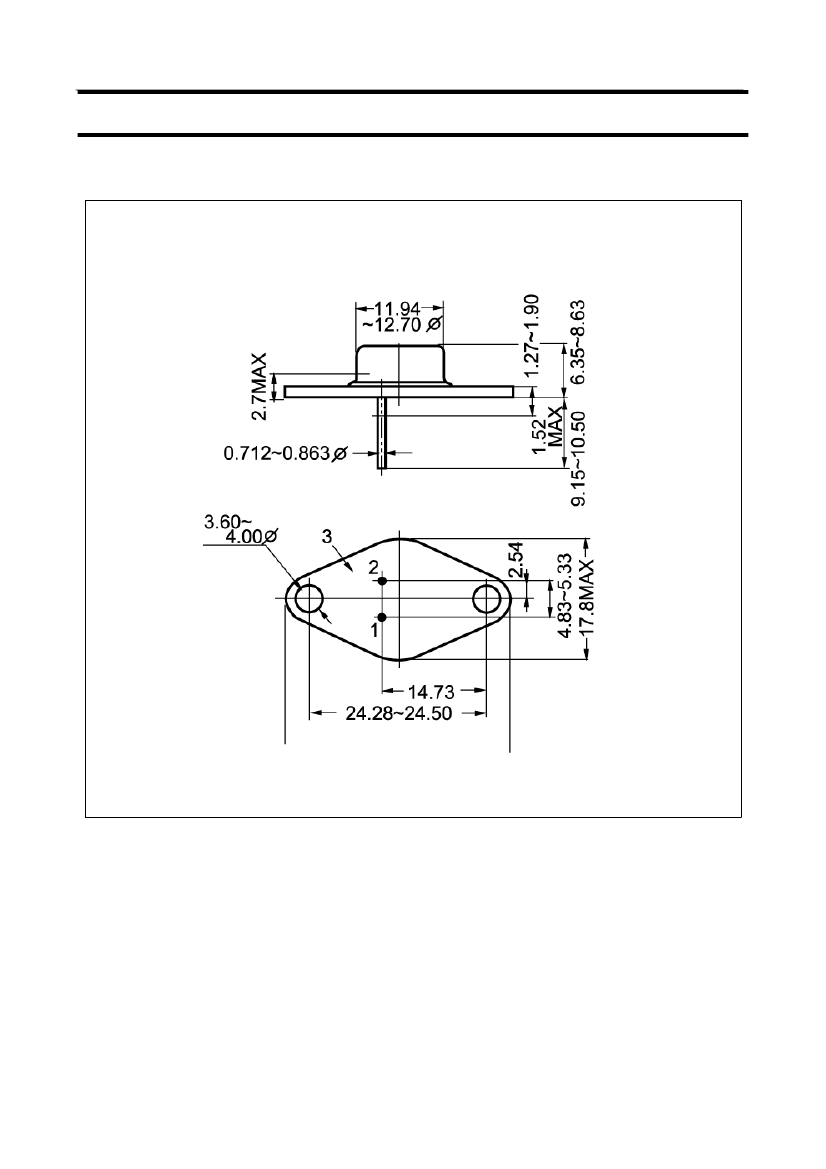

PACKAGE OUTLINE
2SC1002
Fig.2 Outline dimensions
