SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
DESCRIPTION
·With TO-3 package
·Complement to type 2N6031
·High collector-emitter sustaining voltage
·High DC current gain@I
C
=8A
·Low collector saturation voltage
APPLICATIONS
·For high power audio amplifier and
high voltage switching regulator
circuits applications
PINNING
PIN
1
2
3
Base
Emitter
DESCRIPTION
2N5631
Fig.1 simplified outline (TO-3) and symbol
Collector
Absolute maximum ratings(Ta=
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
P
D
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector current-peak
Base current
Total Power Dissipation
Junction temperature
Storage temperature
T
C
=25
CONDITIONS
Open emitter
Open base
Open collector
VALUE
140
140
7
16
20
5.0
200
200
-65~200
UNIT
V
V
V
A
A
A
W
THERMAL CHARACTERISTICS
SYMBOL
R
th j-c
PARAMETER
Thermal resistance junction to case
VALUE
0.875
UNIT
/W
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter sustaining voltage
Collector-emitter saturation voltage
Collector-emitter saturation voltage
Base-emitter saturation voltage
Base-emitter on voltage
Collector cut-off current
Collector cut-off current
Collector cut-off current
Emitter cut-off current
DC current gain
DC current gain
Output capacitance
Transition frequency
CONDITIONS
I
C
=0.2A ;I
B
=0
I
C
=10A; I
B
=1A
I
C
=16A ;I
B
=4A
I
C
=10A; I
B
=1A
I
C
=8A ; V
CE
=2V
V
CB
=ratedV
CBO
; I
E
=0
V
CE
=70V; I
B
=0
V
CE
=ratedV
CB
;V
BE(off)
=1.5V
T
C
=150
V
EB
=7V; I
C
=0
I
C
=8A ; V
CE
=2V
I
C
=16A ; V
CE
=2V
I
E
=0 ; V
CB
=10V ;f=0.1MHz
I
C
=1A ; V
CE
=20V ;f=0.5MHz
1.0
15
4
MIN
140
TYP.
2N5631
SYMBOL
V
CEO(SUS)
V
CEsat-1
V
CEsat-2
V
BEsat
V
BE
I
CBO
I
CEO
I
CEX
I
EBO
h
FE-1
h
FE-2
C
OB
f
T
MAX
UNIT
V
1.0
2.0
1.8
1.5
2.0
2.0
2.0
7.0
5.0
60
V
V
V
V
mA
mA
mA
mA
500
pF
MHz
2
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
PACKAGE OUTLINE
2N5631

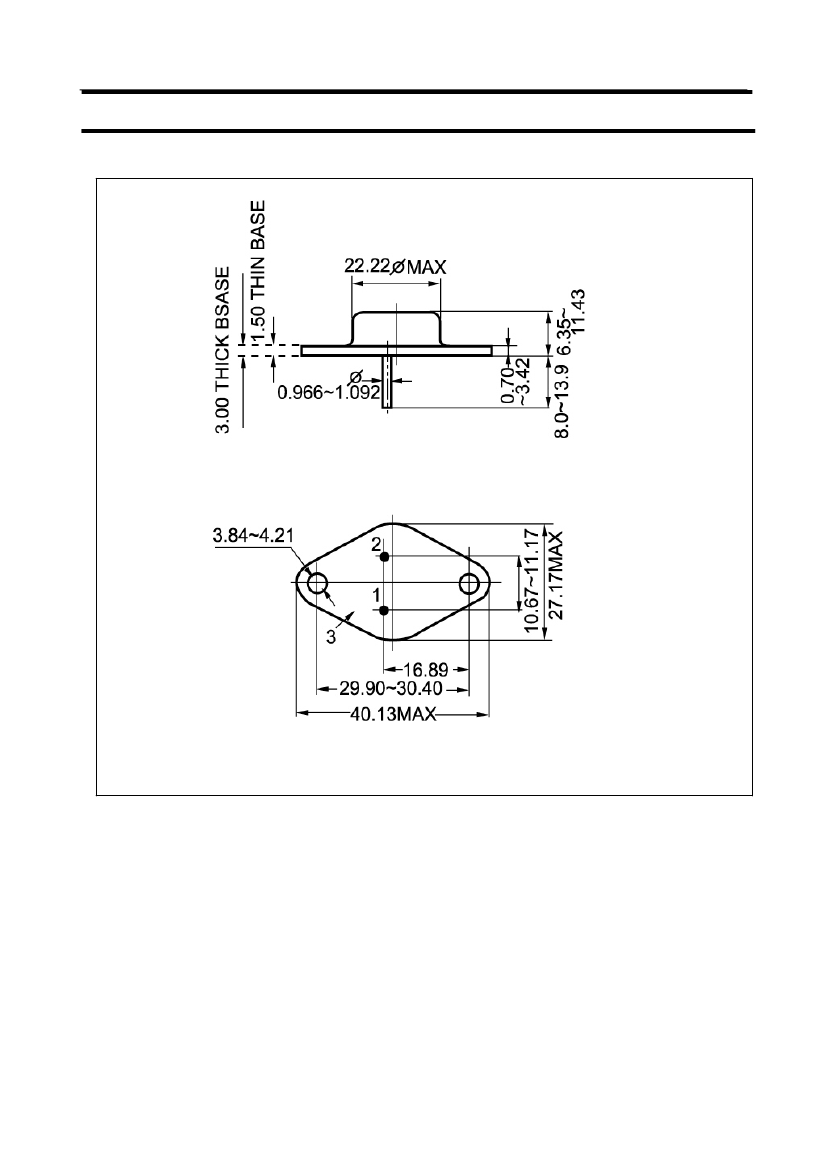

Fig.2 outline dimensions (unindicated tolerance:±0.10mm)
3
