SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC1507
DESCRIPTION
·With TO-220F package
·High collector-emitter voltage
:
V
CEO
=300V
·High frequency:f
T
=40MHz(Min)
APPLICATIONS
·For use in line-operated color TV chroma
output circuits and sound output circuits.
PINNING
PIN
1
2
3
Base
Collector;connected to
mounting base
Emitter

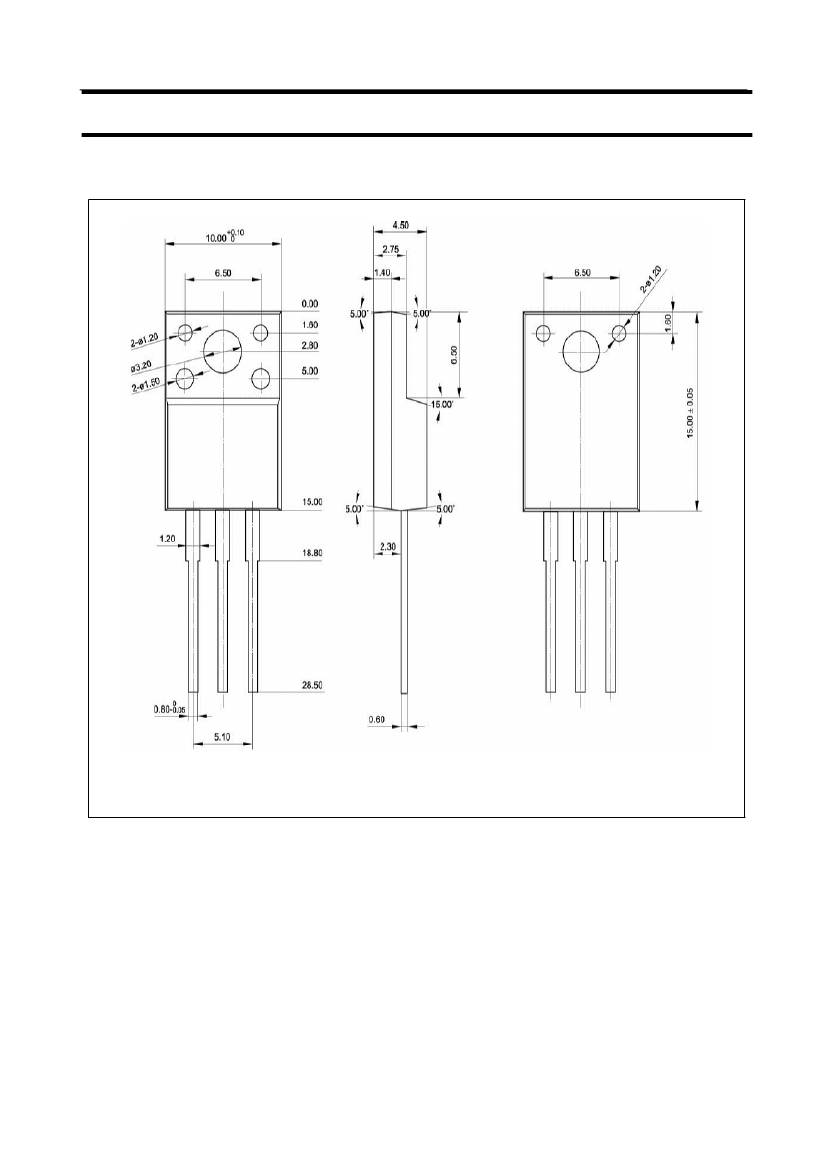

Fig.1 simplified outline (TO-220F) and symbol
DESCRIPTION
Absolute maximum ratings (Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
T
a
=25
P
T
Collector power dissipation
T
C
=25
T
j
T
stg
Junction temperature
Storage temperature
15
150
-55~150
Open emitter
Open base
Open collector
CONDITIONS
VALUE
300
300
7
0.2
1.2
W
UNIT
V
V
V
A
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector-emitter saturation voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Output capacitance
Transition frequency
CONDITIONS
I
C
=10µA ;I
E
=0
I
C
=1mA ;I
B
=0
I
E
=10µA ;I
C
=0
I
C
=50mA ;I
B
=5mA
V
CB
=200V;I
E
=0
V
EB
=5V; I
C
=0
I
C
=10mA ; V
CE
=10V
I
E
=0; V
CB
=50V;f=1MHz
I
C
=10mA ; V
CE
=30V
50
40
MIN
300
300
7
2SC1507
SYMBOL
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
V
CEsat
I
CBO
I
EBO
h
FE
C
OB
f
T
TYP.
MAX
UNIT
V
V
V
2.0
0.1
0.1
200
4.5
80
V
µA
µA
pF
MHz
h
FE
classifications
M
40-80
L
60-120
K
100-200
2
