2SC1756: DescriptionSilicon NPN Power Transistors; File Size119KB，4 Pages; ManufacturerSAVANTIC; Websitehttp://www.svntc.com/

Download Datasheet Compare View All

2SC1756 Overview

Silicon NPN Power Transistors

Preview

Download Datasheet

View All

Inchange Semiconductor

Product Specification

Silicon NPN Power Transistors

DESCRIPTION

·With

TO-220Fa package

·High

breakdown voltage

·High

speed switching

APPLICATIONS

·Switching

regulator and high voltage

switching applications

·High

speed DC-DC converter applications

PINNING

DESCRIPTION

Base

Collector

Emitter

2SC3559

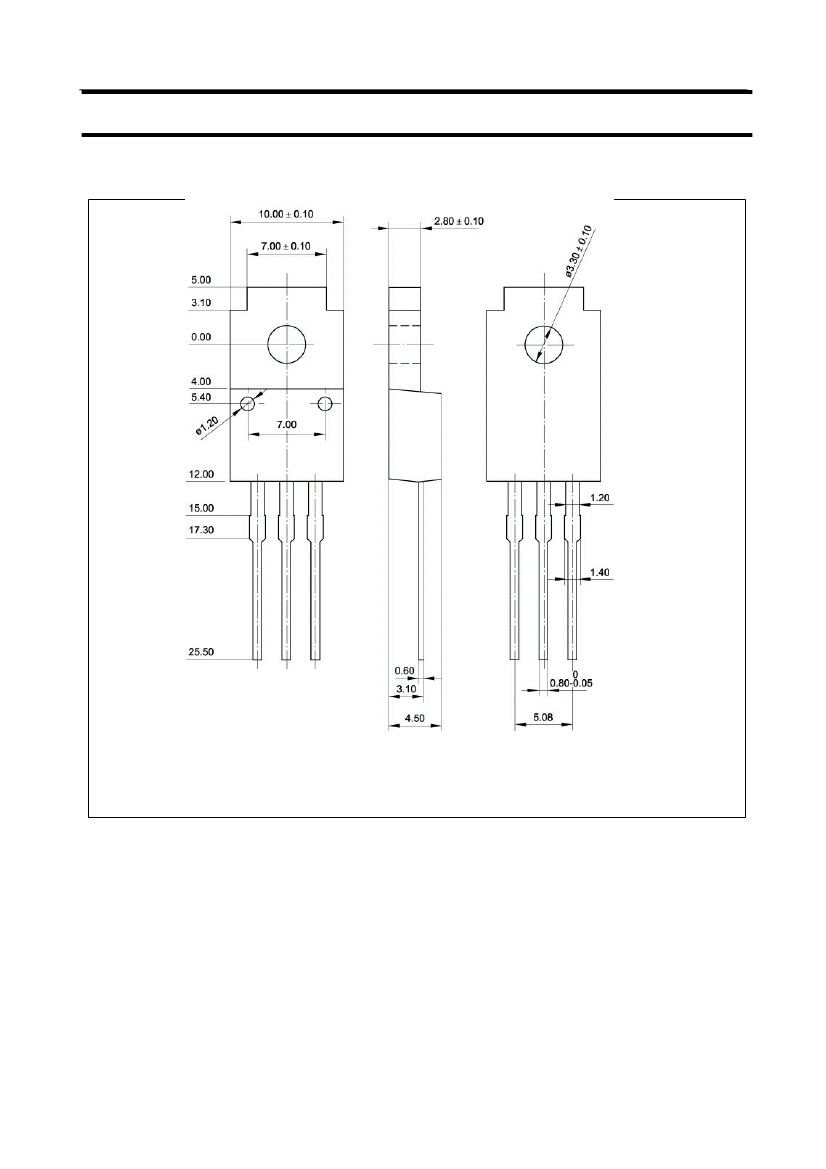

Fig.1 simplified outline (TO-220Fa) and symbol

Absolute maximum ratings (Ta=25

℃)

SYMBOL

CBO

CEO

EBO

PARAMETER

Collector-base voltage

Collector-emitter voltage

Emitter-base voltage

Collector current (DC)

Collector current-Peak

Base current

=25℃

Collector power dissipation

=25℃

stg

Junction temperature

Storage temperature

150

-55~150

℃

CONDITIONS

Open emitter

Open base

Open collector

VALUE

900

800

UNIT

2SC1756 Related Products

	2SC1756
Description	Silicon NPN Power Transistors
