Silicon NPN Power Transistors

2N5157

DESCRIPTION

·With TO-3 package

·High breakdown voltage

APPLICATIONS

·Switching regulator

·Inverters

·Solenoid and relay drivers

·Motor controls

PINNING (See Fig.2)

Base

Emitter

Collector

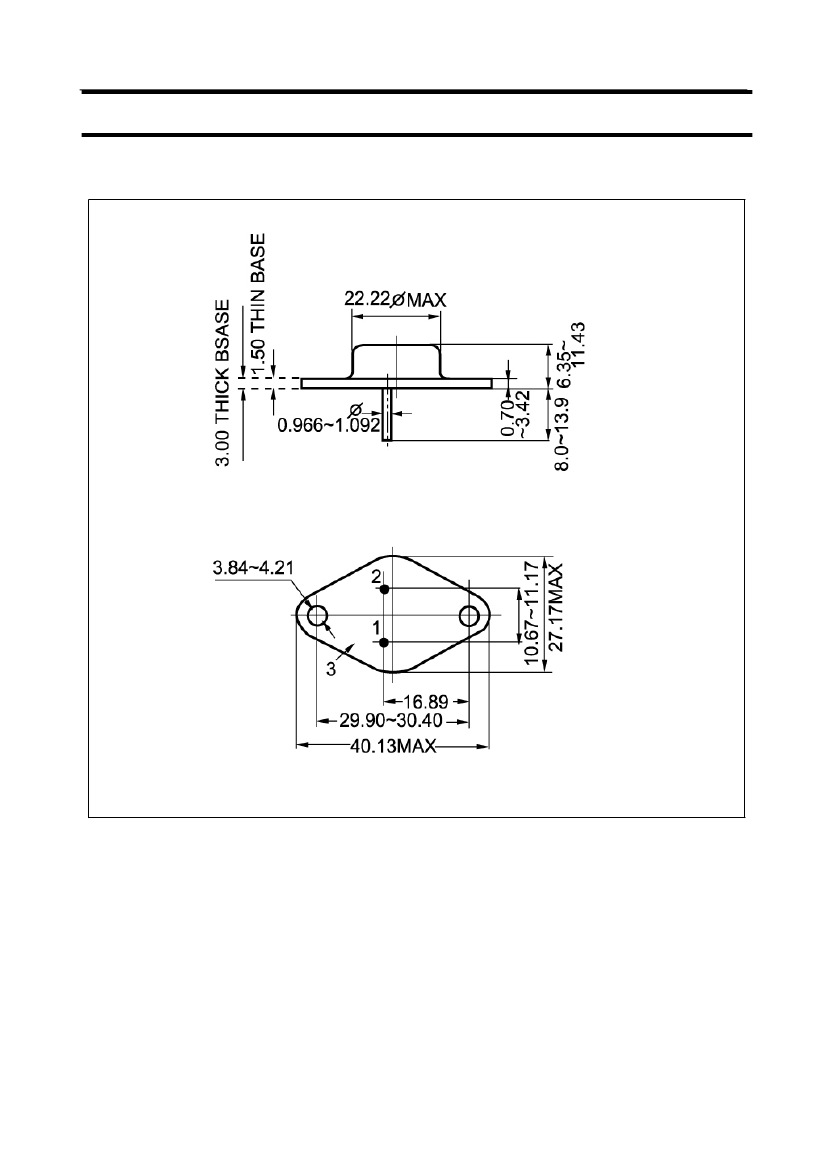

Fig.1 simplified outline (TO-3) and symbol

DESCRIPTION

Absolute maximum ratings(Ta=

)

SYMBOL

CBO

CEO

EBO

stg

PARAMETER

Collector-base voltage

Collector-emitter voltage

Emitter-base voltage

Collector current

Total power dissipation

Junction temperature

Storage temperature

=25

CONDITIONS

Open emitter

Open base

Open collector

VALUE

700

500

3.5

100

165

-65~200

UNIT

THERMAL CHARACTERISTICS

SYMBOL

th j-c

PARAMETER

Thermal resistance from junction to case

MAX

1.0

UNIT
