2SC1828 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> 2SC1828

2SC1828: Description30 A, 450 V, NPN, Si, POWER TRANSISTOR, TO-204AE; Categorysemiconductor Discrete semiconductor; File Size110KB，3 Pages; ManufacturerSAVANTIC; Websitehttp://www.svntc.com/

Download Datasheet Parametric Compare View All

2SC1828 Overview

30 A, 450 V, NPN, Si, POWER TRANSISTOR, TO-204AE

2SC1828 Parametric

Parameter Name	Attribute value
Number of terminals	2
Transistor polarity	NPN
Maximum collector current	30 A
Maximum Collector-Emitter Voltage	450 V
state	DISCONTINUED
packaging shape	round
Package Size	Flange mounting
Terminal form	PIN/PEG
terminal coating	tin lead
Terminal location	BOTTOM
Packaging Materials	Metal
structure	single
Shell connection	COLLECTOR
Number of components	1
transistor applications	switch
Transistor component materials	silicon
Transistor type	universal power supply

Preview

Download Datasheet

View All

SavantIC Semiconductor

Product Specification

Silicon NPN Power Transistors

DESCRIPTION

·With TO-3 package

·High voltage,high speed

APPLICATIONS

·Switching regulators

·PWM inverters and motor controls

·Solenoid and relay drivers

·Deflection circuits

PINNING

Base

Emitter

Collector

DESCRIPTION

2N6542 2N6543

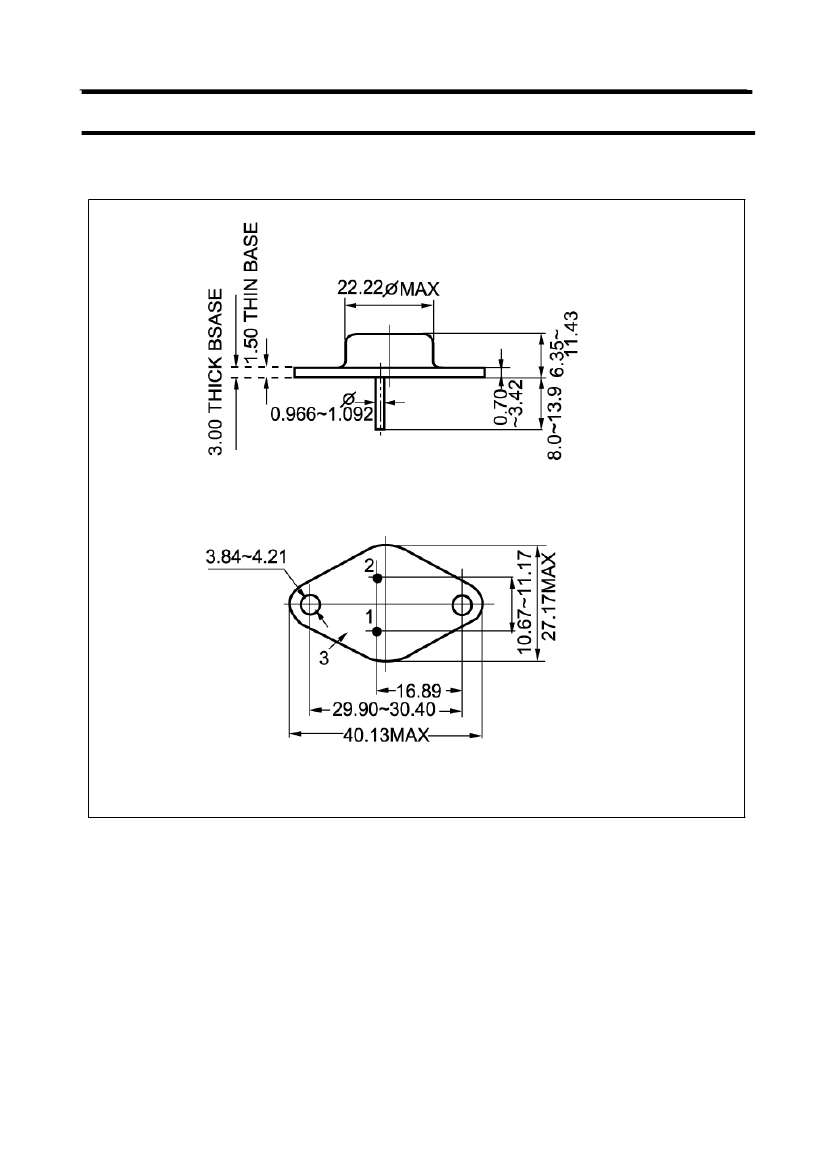

Fig.1 simplified outline (TO-3) and symbol

Absolute maximum ratings(Ta=

)

SYMBOL

PARAMETER

2N6542

CBO

Collector-base voltage

2N6543

2N6542

CEO

Collector-emitter voltage

2N6543

EBO

stg

Emitter-base voltage

Collector current

Collector current-peak

Base current

Emitter current

Emitter current-peak

Total Power Dissipation

Junction temperature

Storage temperature

=25

Open collector

Open base

400

100

200

-65~200

Open emitter

850

300

CONDITIONS

VALUE

650

UNIT

2SC1828 Related Products

	2SC1828	2N6542	2N6543	BUX98	BUX98A
Description	30 A, 450 V, NPN, Si, POWER TRANSISTOR, TO-204AE	30 A, 450 V, NPN, Si, POWER TRANSISTOR, TO-204AE	30 A, 450 V, NPN, Si, POWER TRANSISTOR, TO-204AE	30 A, 450 V, NPN, Si, POWER TRANSISTOR, TO-204AE	30 A, 450 V, NPN, Si, POWER TRANSISTOR, TO-204AE
Number of terminals	2	2	2	2	2
Transistor polarity	NPN	NPN	NPN	NPN	NPN
Maximum collector current	30 A	30 A	30 A	30 A	30 A
Maximum Collector-Emitter Voltage	450 V	450 V	450 V	450 V	450 V
state	DISCONTINUED	DISCONTINUED	DISCONTINUED	DISCONTINUED	DISCONTINUED
packaging shape	round	round	round	round	round
Package Size	Flange mounting	Flange mounting	Flange mounting	Flange mounting	Flange mounting
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
terminal coating	tin lead	tin lead	tin lead	tin lead	tin lead
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Packaging Materials	Metal	Metal	Metal	Metal	Metal
structure	single	single	single	single	single
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR
Number of components	1	1	1	1	1
transistor applications	switch	switch	switch	switch	switch
Transistor component materials	silicon	silicon	silicon	silicon	silicon
Transistor type	universal power supply	universal power supply	universal power supply	universal power supply	universal power supply
