NSZ35565%A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> NSZ35565%A

NSZ35565%A: DescriptionRESISTOR, WIRE WOUND, 5W, 5%, 56ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size115KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

NSZ35565%A Overview

RESISTOR, WIRE WOUND, 5W, 5%, 56ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

NSZ35565%A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-609 code	e2
Manufacturer's serial number	NSZ
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
Rated power dissipation(P)	5 W
Rated temperature	25 °C
resistance	56 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	WIRE WOUND
Terminal surface	Tin/Copper (Sn/Cu)
Terminal shape	SPECIAL
Tolerance	5%
Operating Voltage	300 V
Base Number Matches	1

Preview

Download Datasheet

View All

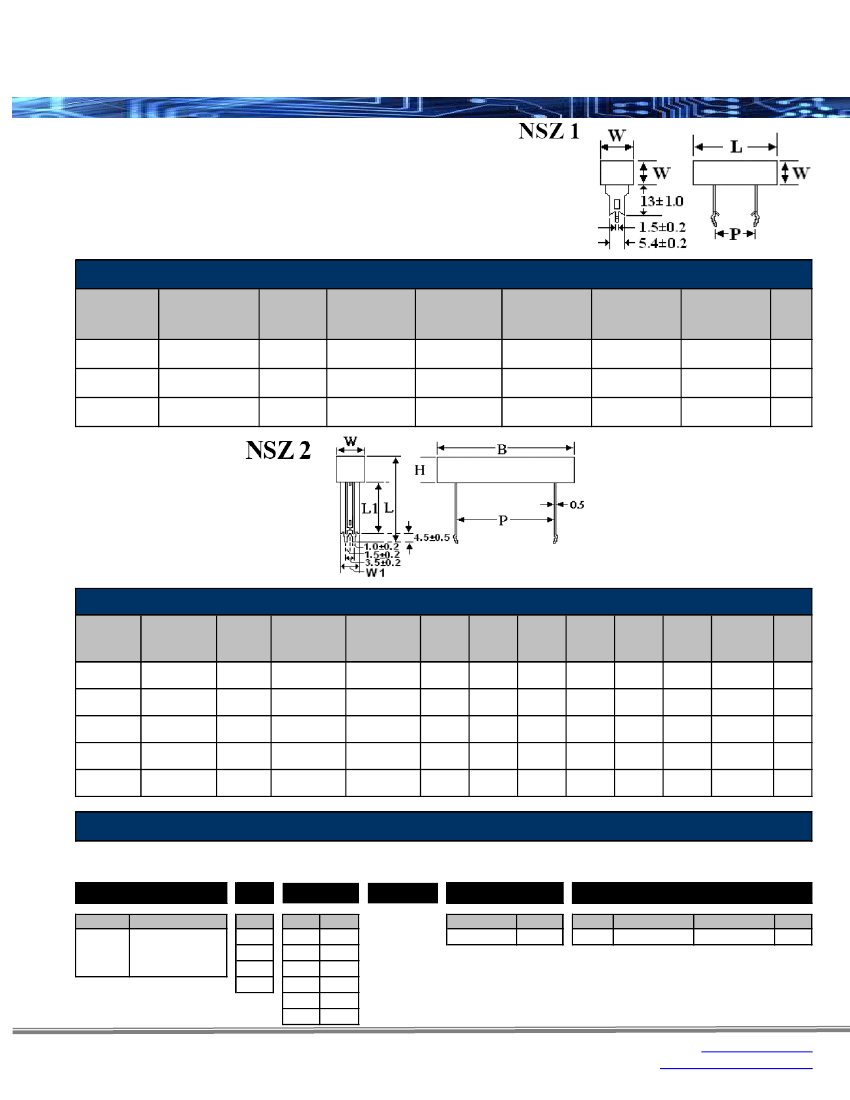

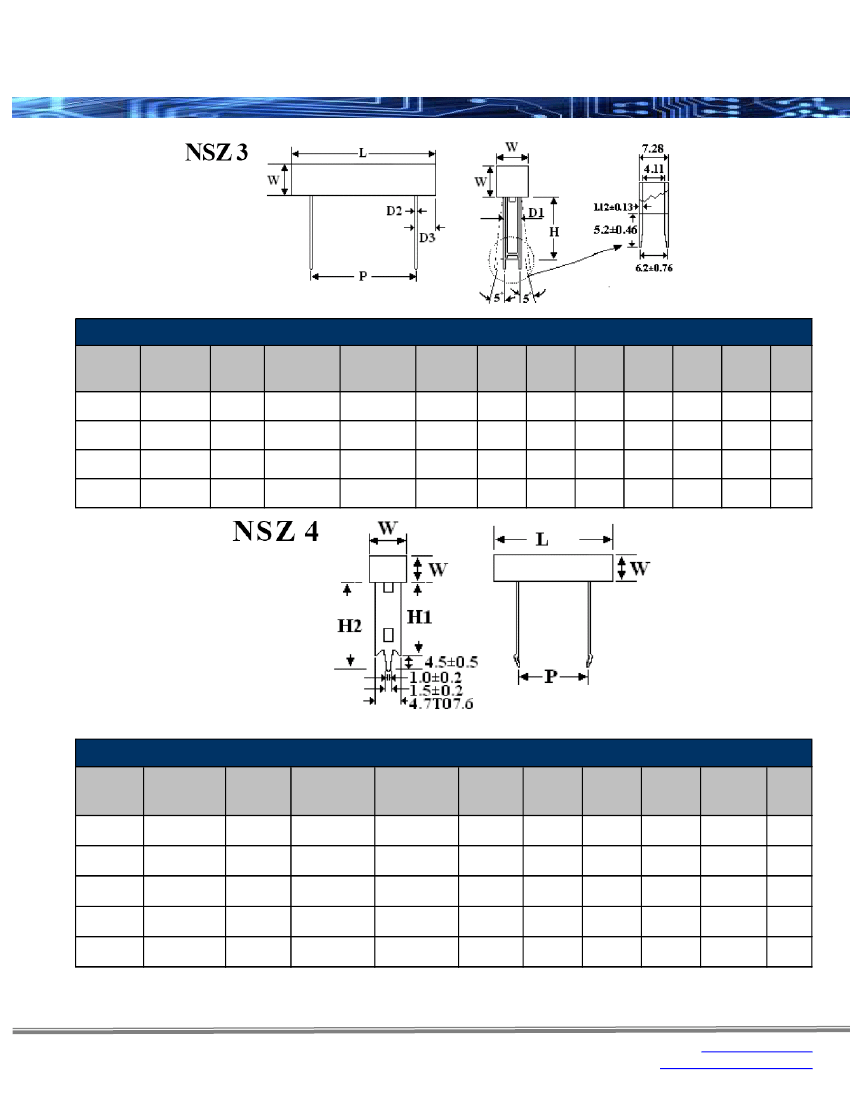

NSZ Series

Ceramic Housed Wirewound with Specialty Leads

Features:

•

Stackpole Electronics, Inc.

Resistive Product Solutions

Special lead configurations

RoHS compliant / lead-free

See CB data sheet for performance and environmental

specifications.

NSZ 1 Specifications

Type / Code

NSZ 1

Power Rating

(Watts) @ 25ºC

10W

Maximum

Working

Voltage

300V

350V

500V

Resistance

Range

Wirewound

1Ω - 680Ω

1Ω - 1KΩ

Resistance

Range

Metal Oxide

680Ω - 50KΩ

1K - 50KΩ

± 0.039

± 1.0

1.06

1.38

1.89

± 0.039

± 1.0

0.39

± 0.039

± 1.0

0.59

0.89

22.5

1.38

Units

inches

NSZ 2 Specifications

Power Rating Maximum

(Watts)

Working

Type / Code

@ 25ºC

Voltage

NSZ 2

10W

15W

200V

300V

350V

500V

600V

± 0.039

±1

0.98

0.1Ω - 470Ω 470Ω - 50KΩ

1.1

0.1Ω - 680Ω 680Ω - 50KΩ

1.4

0.1Ω - 1KΩ

1KΩ - 50KΩ

35.5

1.89

0.1Ω - 1.2KΩ 1.2KΩ - 50KΩ

1.89

0.1Ω - 2KΩ

2KΩ - 50KΩ

Resistance

Range

Wirewound

Resistance

Range

Metal Oxide

± 0.02

± 0.5

0.39

9.8

0.39

9.8

0.39

9.8

0.39

9.8

0.47

± 0.02

± 0.5

0.39

9.8

0.39

9.8

0.39

9.8

0.39

9.8

0.47

± 0.004

±1

0.29

7.3

0.29

7.3

0.29

7.3

0.29

7.3

0.29

7.3

± 0.039

±1

0.49

12.5

0.59

0.89

22.5

1.38

1.28

32.5

± 0.039 +0.08/-0.04 Units

±1

+2/-1

1.15

0.59

inches

29.3

1.15

0.59

inches

29.3

1.15

0.59

inches

29.3

1.15

0.59

inches

29.3

1.24

0.59

inches

31.5

How to Order

SEI Type

Code

Power

Ratings

Nominal

Resistance

Tolerance

Packaging

NSZ

Type

NSZ

Description

Ceramic Housed

Wirewound with

Specialty Leads

Code

Watts

10W

15W

20W

Tolerance Values

E24

Types

All

Qty

1,000

Description

Bulk

Code

Rev Date: 09/30/2009

This specification may be changed at any time without prior notice

Please confirm technical specifications before you order and/or use.
