SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC2305
DESCRIPTION
·With TO-3PN package
·High breakdown voltage
·Fast switching speed
·Wide safe operating area
APPLICATIONS
·For switching regulator applications
PINNING
PIN
1
2
3
Base
Collector;connected to
mounting base
Emitter
Fig.1 simplified outline (TO-3PN) and symbol
DESCRIPTION
Absolute maximum ratings (Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
P
C
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current (DC)
Collector current-peak
Base current (DC)
Collector power dissipation
Junction temperature
Storage temperature
T
C
=25
Open emitter
Open base
Open collector
CONDITIONS
VALUE
400
400
8
7
14
3
80
150
-55~150
UNIT
V
V
V
A
A
A
W
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter breakdown voltage
Collector-base breakdown voltage
Emitter-base breakdown voltage
Collector-emitter saturation voltage
Base-emitter saturation voltage
Collector cut-off current
Emitter cut-off current
DC current gain
DC current gain
CONDITIONS
I
C
=10mA ;R
BE
=:
I
C
=1m A; I
E
=0
I
E
=1m A; I
C
=0
I
C
=4A; I
B
=0.8A
I
C
=4A; I
B
=0.8A
V
CB
=400V; I
E
=0
V
EB
=5V; I
C
=0
I
C
=0.8A ; V
CE
=5V
I
C
=4A ; V
CE
=5V
15
10
MIN
400
400
7
2SC2305
SYMBOL
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
V
CEsat
V
BEsat
I
CBO
I
EBO
h
FE-1
h
FE-2
TYP.
MAX
UNIT
V
V
V
1.0
1.5
10
10
50
V
V
µA
µA
2
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors

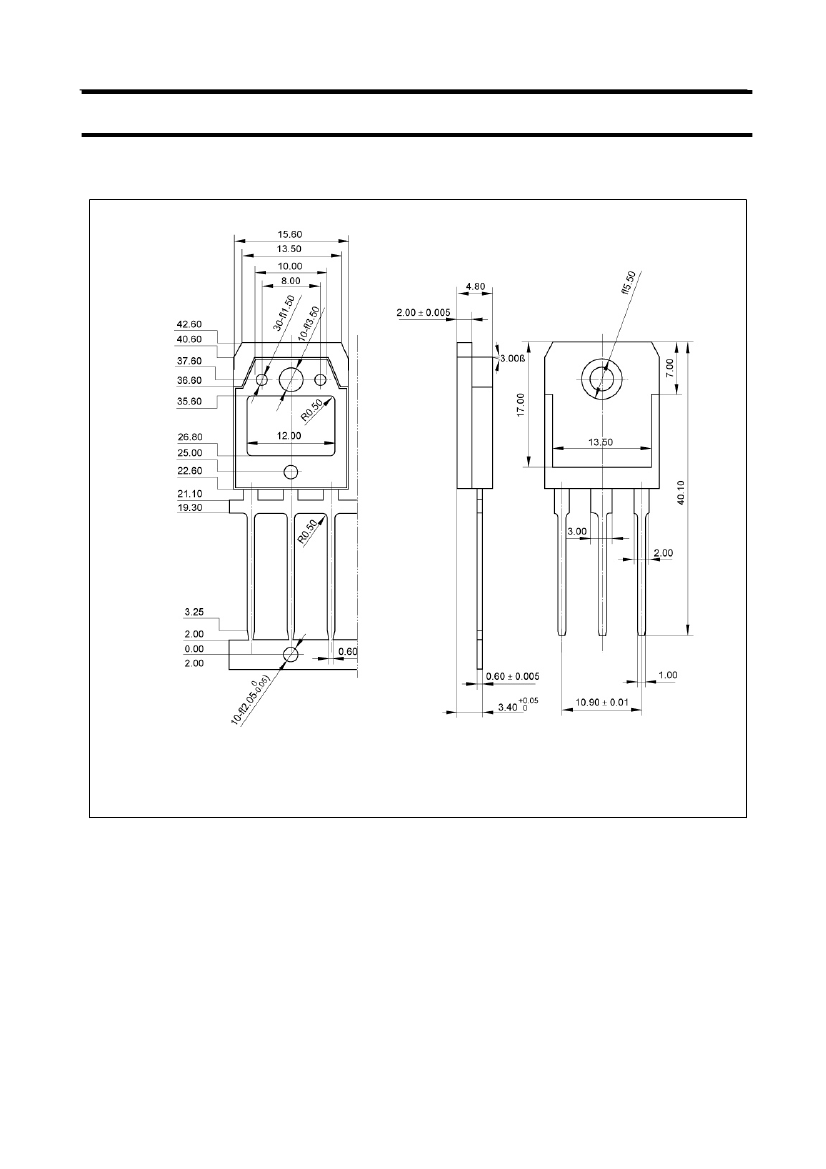

PACKAGE OUTLINE
2SC2305
Fig.2 outline dimensions (unindicated tolerance:±0.10 mm)
3
