SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC2688
DESCRIPTION
·With TO-126 package
·High breakdown voltage
·High transition frequency
APPLICATIONS
·Designed for use in Color TV chroma
output circuits.
PINNING
PIN
1
2
3
DESCRIPTION
Emitter
Collector;connected to
mounting base
Base
Absolute maximum ratings(Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
T
a
=25
P
C
Collector power dissipation
T
C
=25
T
j
T
stg
Junction temperature
Storage temperature
10
150
-55~150
CONDITIONS
Open emitter
Open base
Open collector
VALUE
300
300
5
0.2
1.25
W
UNIT
V
V
V
A
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter saturation voltage
Collector-emitter breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Transition frequency
Feedback capacitance
CONDITIONS
I
C
=50mA; I
B
=5mA
I
C
=1mA; I
B
=0
V
CB
=200V; I
E
=0
V
EB
=5V; I
C
=0
I
C
=10mA ; V
CE
=10V
I
C
=10mA ; V
CE
=30V
I
E
=0 ; V
CB
=10V;f=1MHz
40
40
300
MIN
2SC2688
SYMBOL
V
CEsat
V
(BR)CEO
I
CBO
I
EBO
h
FE
f
T
C
re
TYP.
MAX
1.5
UNIT
V
V
0.1
0.1
250
µA
µA
MHz
3.0
pF
h
FE
Classifications
N
40-80
M
60-120
L
100-200
K
160-250
2
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors

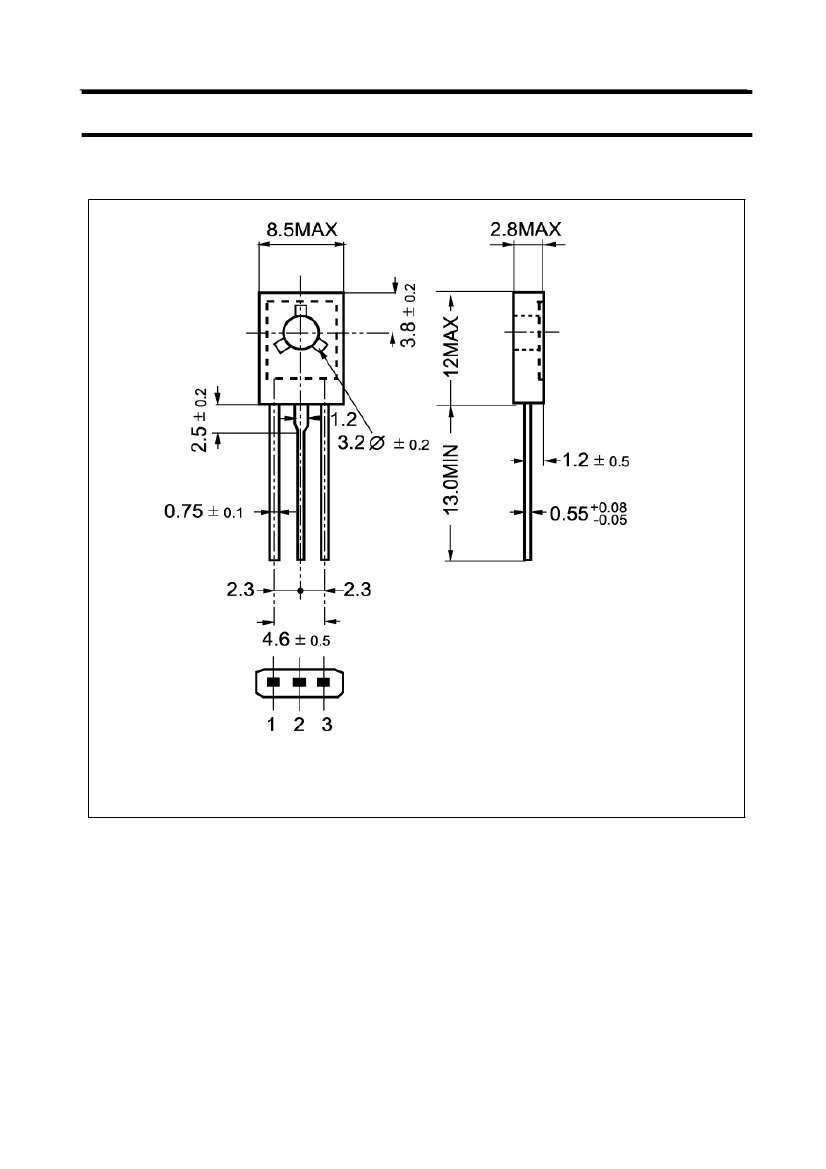

PACKAGE OUTLINE
2SC2688
Fig.2 Outline dimensions
3
