SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC2922
DESCRIPTION
·With MT-200 package
·Complement to type 2SA1216
APPLICATIONS
·Audio and general purpose
PINNING(see Fig.2)
PIN
1
2
3
Base
Collector;connected to
mounting base
Emitter

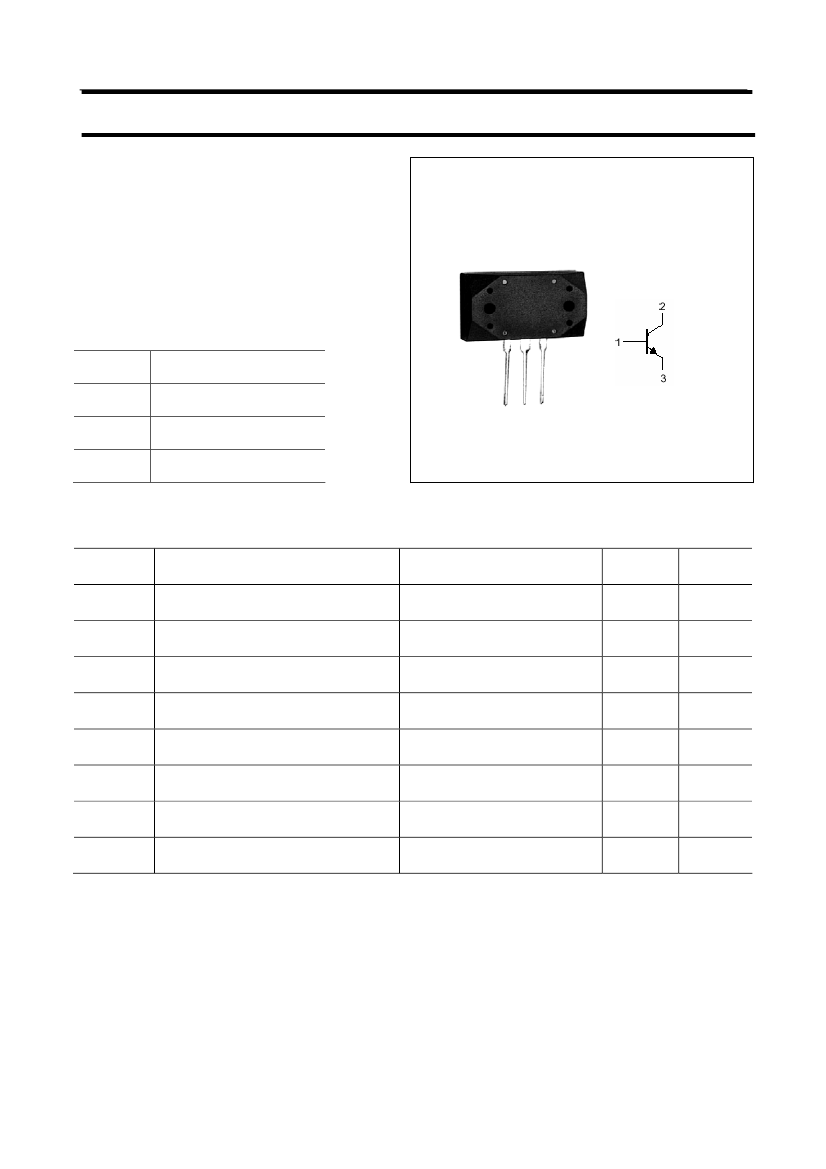

Fig.1 simplified outline (MT-200) and symbol
DESCRIPTION
Absolute maximum ratings(Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature
T
C
=25
CONDITIONS
Open emitter
Open base
Open collector
VALUE
180
180
5
17
5
200
150
-55~150
UNIT
V
V
V
A
A
W
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter breakdown voltage
Collector-emitter saturation voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Output capacitance
Transition frequency
CONDITIONS
I
C
=25mA ; I
B
=0
I
C
=8A I
B
=0.8A
V
CB
=180V; I
E
=0
V
EB
=5V; I
C
=0
I
C
=8A ; V
CE
=4V
I
E
=0 ; V
CB
=10V;f=1MHz
I
C
=2A ; V
CE
=12V
30
MIN
180
2SC2922
SYMBOL
V
(BR)CEO
V
CEsat
I
CBO
I
EBO
h
FE
C
ob
f
T
TYP.
MAX
UNIT
V
2.0
100
100
V
µA
µA
250
50
pF
MHz
Switching times
t
on
t
s
t
f
Turn-on time
Storage time
Fall time
I
C
=10A;R
L
=4@
I
B1
=- I
B2
=1A
V
CC
=40V
0.20
1.30
0.45
µs
µs
µs
h
FE
classifications
O
30-60
Y
50-100
P
70-140
G
90-180
2
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
PACKAGE OUTLINE

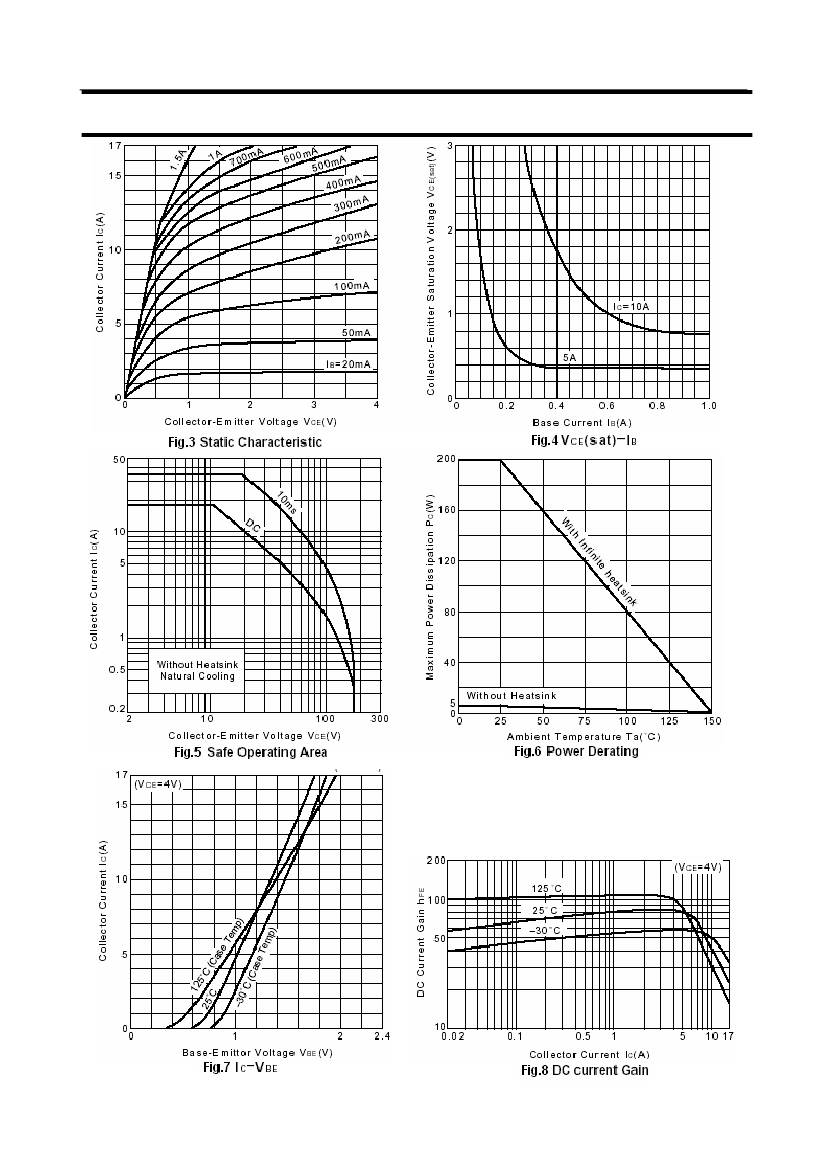

2SC2922

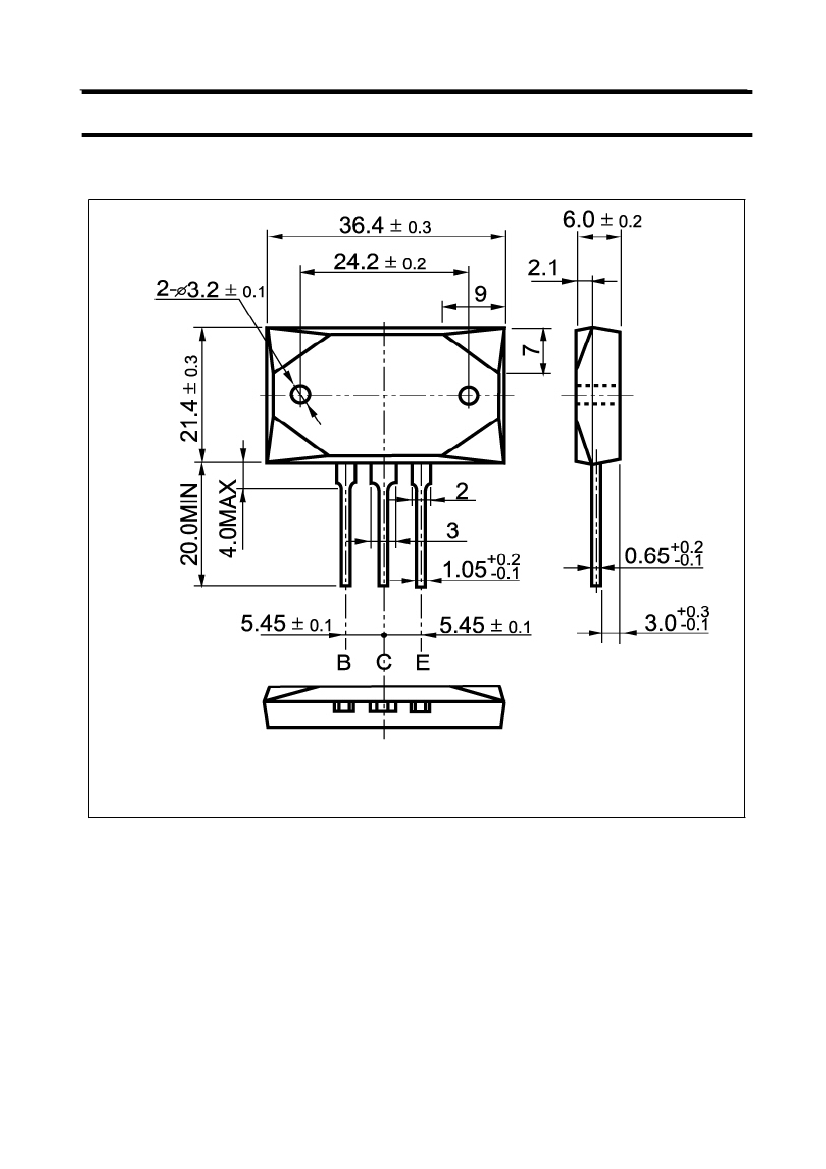

Fig.2 outline dimensions
3
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC2922
4
