SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC3300
DESCRIPTION
·With TO-3PN package
·Low saturation voltage
·Wide area of safe operation
APPLICATIONS
·Power and general purpose application
PINNING
PIN
1
2
3
Base
Collector;connected to
mounting base
Emitter
Fig.1 simplified outline (TO-3PN) and symbol
DESCRIPTION
ABSOLUTE MAXIMUM RATINGS (TC=25 )
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
P
C
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current (DC)
Collector current-peak
Collector power dissipation
Junction temperature
Storage temperature
T
C
=25
CONDITIONS
Open emitter
Open base
Open collector
VALUE
100
100
6
15
25
100
150
-55~150
UNIT
V
V
V
A
A
W
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter breakdown voltage
Collector-base breakdown voltage
Emitter-base breakdown voltage
Collector-emitter saturation voltage
Base-emitter saturation voltage
Collector cut-off current
Emitter cut-off current
DC current gain
CONDITIONS
I
C
=25mA ;I
B
=0
I
C
=1mA ;I
E
=0
I
E
=1mA ;I
C
=0
I
C
=10A ;I
B
=1A
I
C
=10A ;I
B
=1A
V
CB
=100V; I
E
=0
V
EB
=6V; I
C
=0
I
C
=5A ; V
CE
=4V
30
MIN
100
100
6
SYMBOL
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
V
CE
(sat)
V
BE
(sat)
I
CBO
I
EBO
h
FE
2SC3300
TYP.
MAX
UNIT
V
V
V
0.5
1.5
0.1
0.1
120
V
V
mA
mA
2
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors

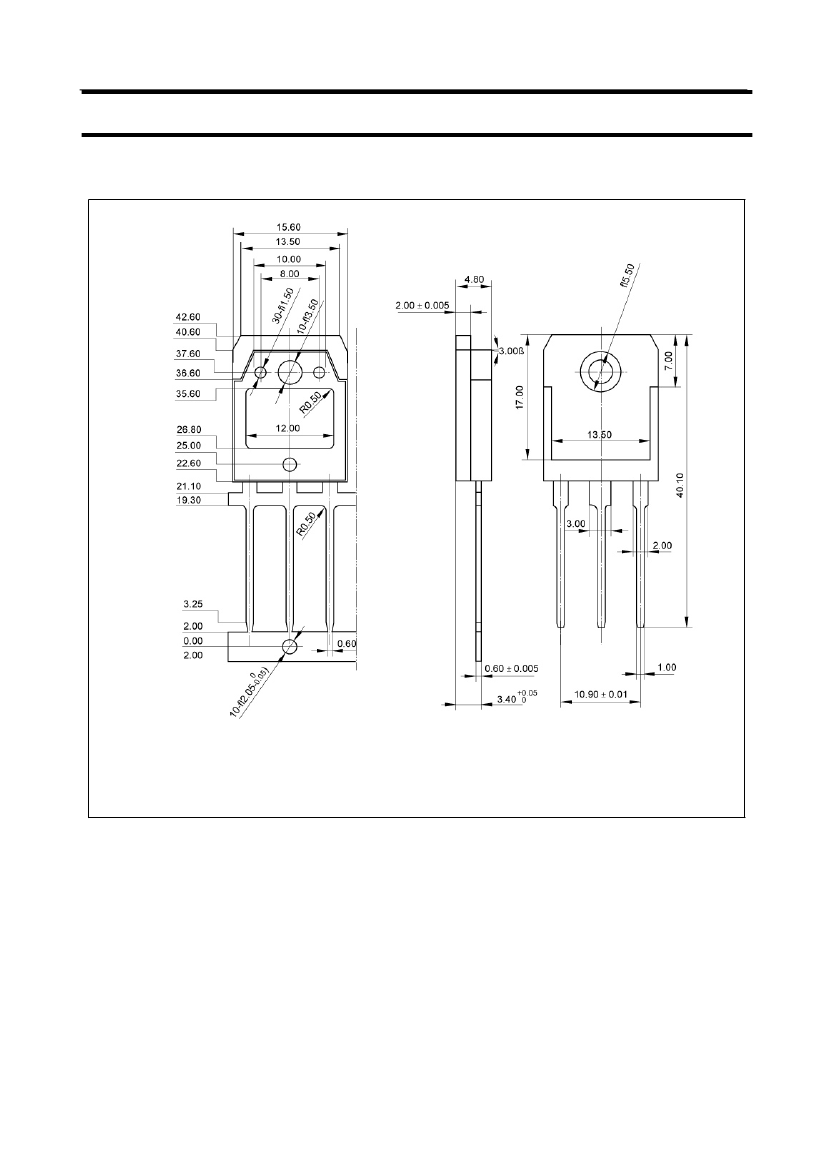

PACKAGE OUTLINE
2SC3300
Fig.2 outline dimensions
3
