SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC3688
DESCRIPTION
·With TO-3PN package
·High breakdown voltage
·High speed
APPLICATIONS
·Ultrahigh-definition color display horizontal
deflection output applications
PINNING
PIN
1
2
3
Base
Collector;connected to
mounting base
Emitter
Fig.1 simplified outline (TO-3PN) and symbol
DESCRIPTION
Absolute maximum ratings(Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
P
C
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current (DC)
Collector current-peak
Collector power dissipation
Junction temperature
Storage temperature
T
C
=25
CONDITIONS
Open emitter
Open base
Open collector
VALUE
1500
800
6
10
25
150
150
-55~150
UNIT
V
V
V
A
A
W
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter sustaining voltage
Collector-emitter saturation voltage
Base-emitter saturation voltage
Collector cut-off current
Emitter cut-off current
DC current gain
CONDITIONS
I
C
=0.1A ;I
B
=0A
I
C
=8A ; I
B
=2.0A
I
C
=8A ; I
B
=2.0A
V
CE
=1500V; R
BE
=0V
V
EB
=4V; I
C
=0A
I
C
=1A ; V
CE
=5V
8
MIN
800
2SC3688
SYMBOL
V
CEO(SUS)
V
CEsat
V
BEsat
I
CES
I
EBO
h
FE
TYP.
MAX
UNIT
V
5.0
1.5
1.0
1.0
V
V
mA
mA
Switching times
t
s
t
f
Storage time
Fall time
3.0
0.2
µs
µs
I
C
=6.0A
I
B1
=1.2A;I
B2
=-2.4A
V
CC
=200V
2
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
PACKAGE OUTLINE
2SC3688
Fig.2 outline dimensions (unindicated tolerance:±0.10 mm)
3

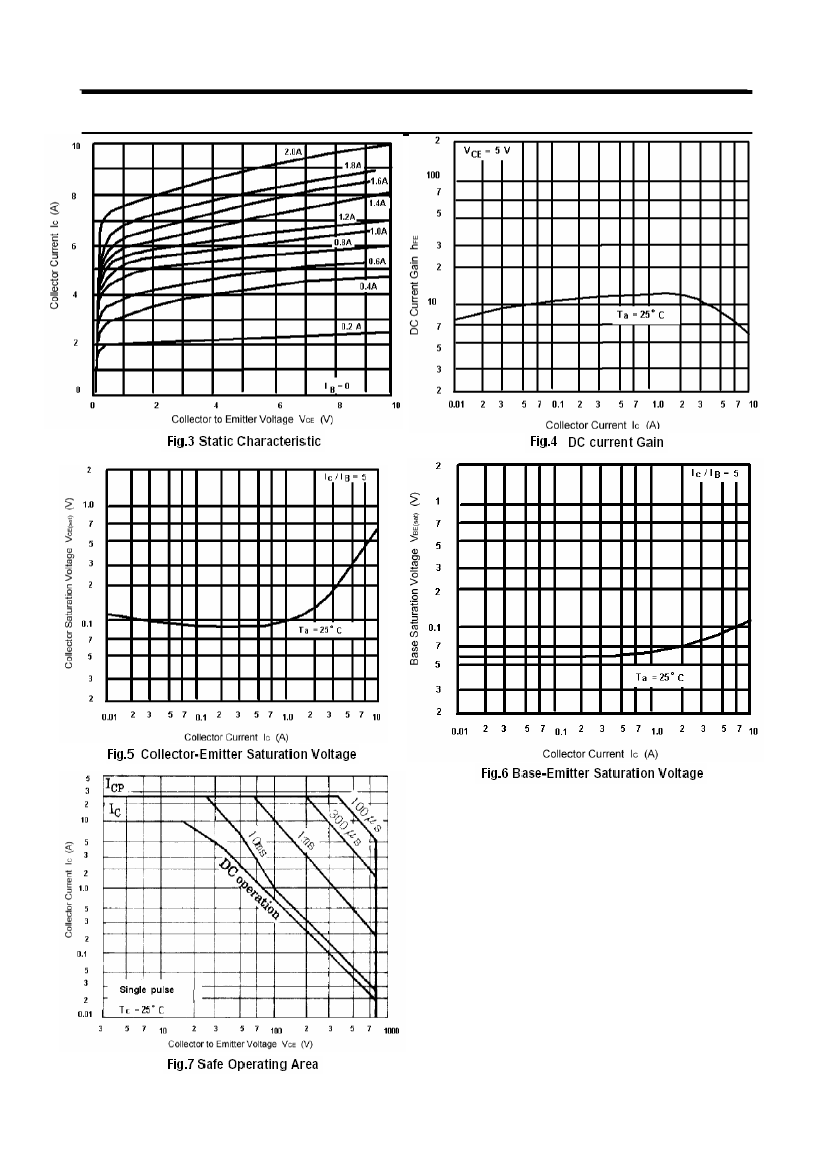

SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC3688
4
