SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
DESCRIPTION
·With TO-220C package
·High voltage
·High speed switching
APPLICATIONS
·For switching regulator and
general purpose applications
PINNING
PIN
1
2
3
Base
Collector;connected to
mounting base
Emitter
DESCRIPTION
2SC3832
Absolute maximum ratings(Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
P
C
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector current-peak
Base current
Collector dissipation
Junction temperature
Storage temperature
T
C
=25
CONDITIONS
Open emitter
Open base
Open collector
VALUE
500
400
10
7
14
2
50
150
-55~150
UNIT
V
V
V
A
A
A
W
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter breakdown voltage
Collector-emitter saturation voltage
Base-emitter saturation voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Transition frequency
Output capacitance
CONDITIONS
I
C
=25mA ; I
B
=0
I
C
=3A; I
B
=0.6A
I
C
=3A; I
B
=0.6A
V
CB
=500V ;I
E
=0
V
EB
=10V; I
C
=0
I
C
=3A ; V
CE
=4V
I
C
=0.5A ; V
CE
=12V
f=1MHz ; V
CB
=10V
10
MIN
400
SYMBOL
V
(BR)CEO
V
CEsat
V
BEsat
I
CBO
I
EBO
h
FE
f
T
C
OB
2SC3832
TYP.
MAX
UNIT
V
0.5
1.3
100
100
30
10
50
V
V
µA
µA
MHz
pF
Switching times
t
on
t
stg
t
f
Turn-on time
Storage time
Fall time
V
CC
=200V; I
C
=3A
I
B1
=0.3A;I
B2
=-0.6A;
R
L
=66.7?
1.0
3.0
0.5
µs
µs
µs
2
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
PACKAGE OUTLINE
2SC3832
Fig.2 Outline dimensions (unindicated tolerance:±0.10 mm)

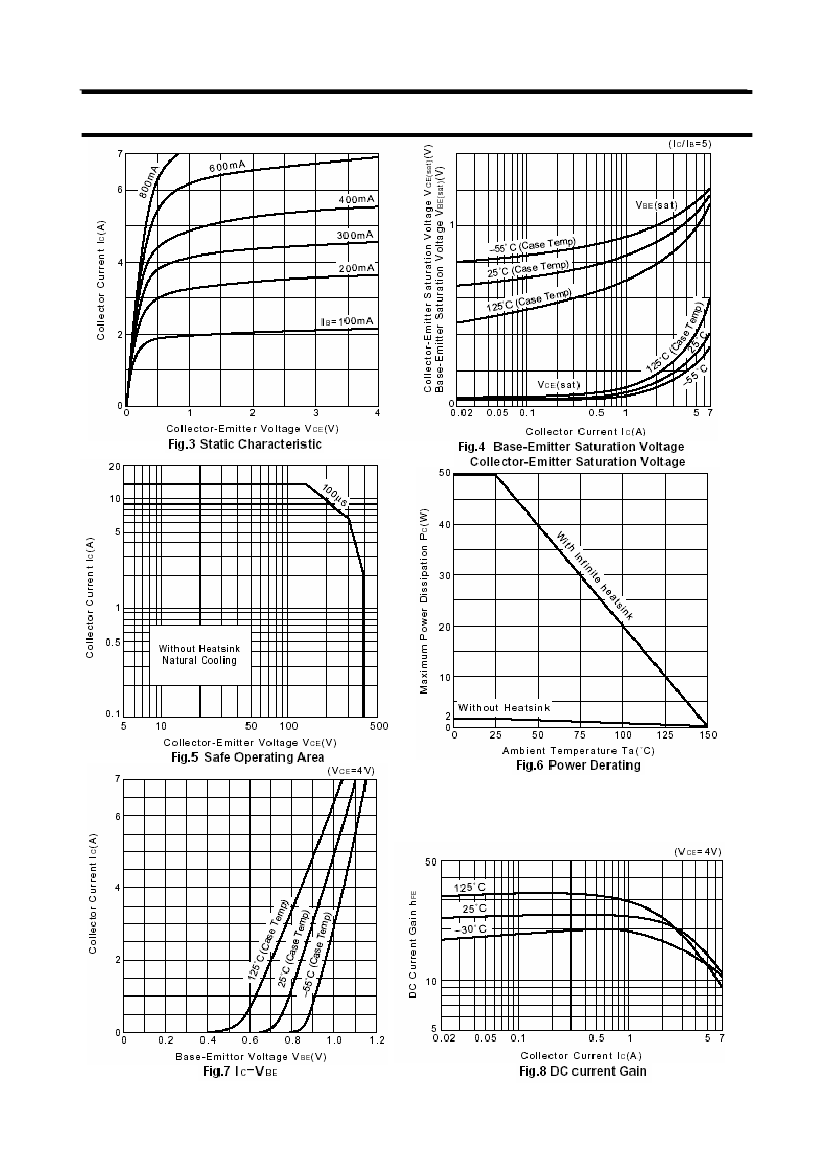

3
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC3832
4
