SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC3852
DESCRIPTION
·With TO-220Fa package
·Low collector saturation voltage
·High h
FE
APPLICATIONS
·Driver for solenoid and motor,series regulator
and general purpose applications
PINNING
PIN
1
2
3
Base
Collector
Emitter

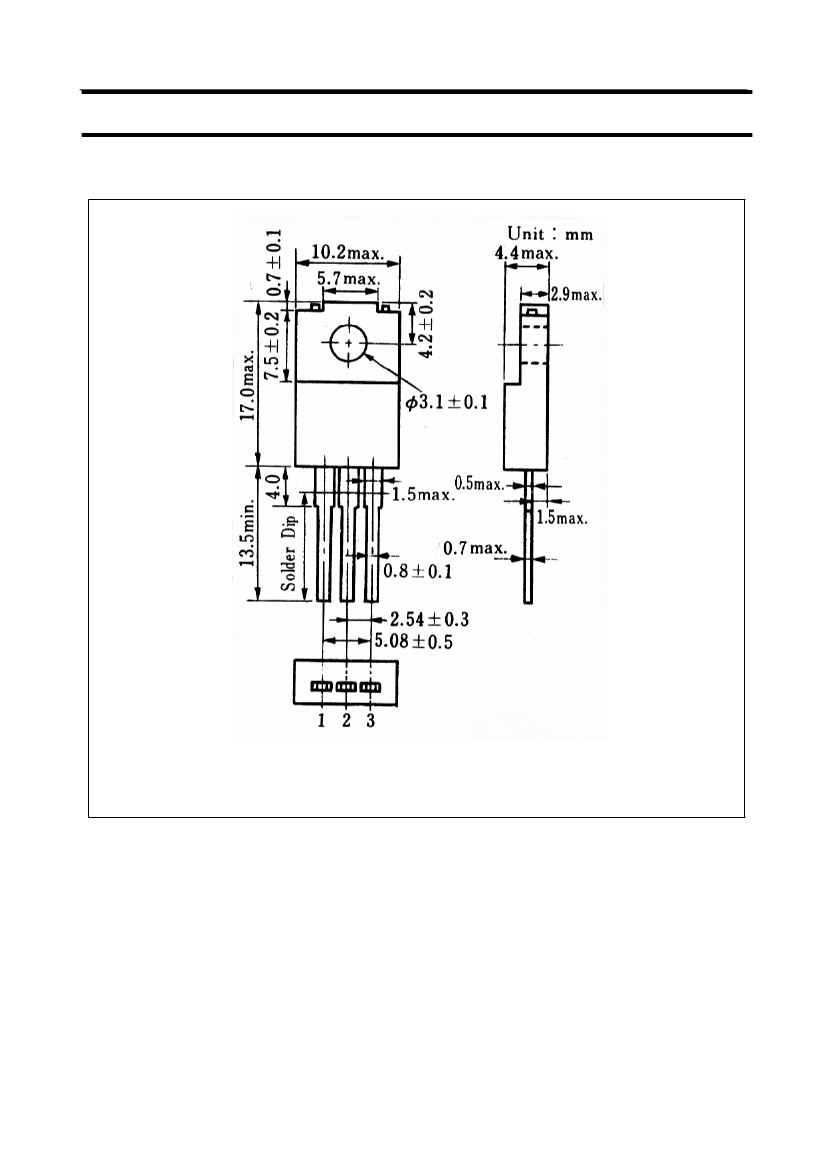

Fig.1 simplified outline (TO-220Fa) and symbol
DESCRIPTION
Absolute maximum ratings (Ta=25 )
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
B
P
T
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Total power dissipation
Junction temperature
Storage temperature
T
C
=25
Open emitter
Open base
Open collector
CONDITIONS
VALUE
80
60
6
3
1
25
150
-55~150
UNIT
V
V
V
A
A
W
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter breakdown voltage
Collector-emitter saturation voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Transition frequency
Collector output capacitance
CONDITIONS
I
C
=25mA ;I
B
=0
I
C
=2A ;I
B
=50mA
V
CB
=80V; I
E
=0
V
EB
=6V; I
C
=0
I
C
=0.5A ; V
CE
=4V
I
C
=0.2A ; V
CE
=12V
f=1MHz;V
CB
=10V
200
MIN
60
SYMBOL
V
(BR)CEO
V
CE(sat)
I
CBO
I
EBO
h
FE
f
T
C
OB
2SC3852
TYP.
MAX
UNIT
V
0.5
10
100
V
µA
µA
15
50
MHz
pF
Switching times
t
on
t
s
t
f
Turn-on time
Storage time
Fall time
I
C
=1.0A
I
B1
=15mA ,I
B2
=-30mA
V
CC
=20V, R
L
=20@
0.8
3.0
1.2
µs
µs
µs
2
