SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SD1886
DESCRIPTION
·With TO-3PML package
·High breakdown voltage
·High reliability
·High speed
APPLICATIONS
·Color TV horizontal deflection output.
·Color display horizontal deflection output
.
PINNING
PIN
1
2
3
Base
Collector
Emitter
Fig.1 simplified outline (TO-3PML) and symbol
DESCRIPTION
Absolute maximum ratings(Ta=25 )
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
P
C
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector current-peak
Collector power dissipation
Junction temperature
Storage temperature
T
C
=25
CONDITIONS
Open emitter
Open base
Open collector
VALUE
1500
800
6
8
30
70
150
-55~150
UNIT
V
V
V
A
A
W
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SD1886
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter saturation voltage
Base-emitter saturation voltage
Collector-emitter sustaining voltage
Emitter cut-off current
Collector cut-off current
Collector cut-off current
DC current gain
DC current gain
Fall time
CONDITIONS
I
C
=6A;I
B
=1.2 A
I
C
=6A;I
B
=1.2 A
I
C
=100mA;I
B
=0
V
EB
=4V; I
C
=0
V
CB
=800V; I
E
=0
V
CE
=1500V; R
BE
=0
I
C
=1 A ; V
CE
=5V
I
C
=6A ; V
CE
=5V
I
C
=6A;R
L
=33.3@; I
B1
=1.2A
I
B2
=-2.4AV
CC
=200V
8
5
0.1
10
0.3
µs
800
1
10
1
MIN
TYP.
MAX
5
1.5
UNIT
V
V
V
mA
µA
mA
SYMBOL
V
CEsat
V
BEsat
V
CEO(SUS)
I
EBO
I
CBO
I
CES
h
FE-1
h
FE-2
t
f
2
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
PACKAGE OUTLINE
2SD1886
Fig.2 Outline dimensions
3
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors

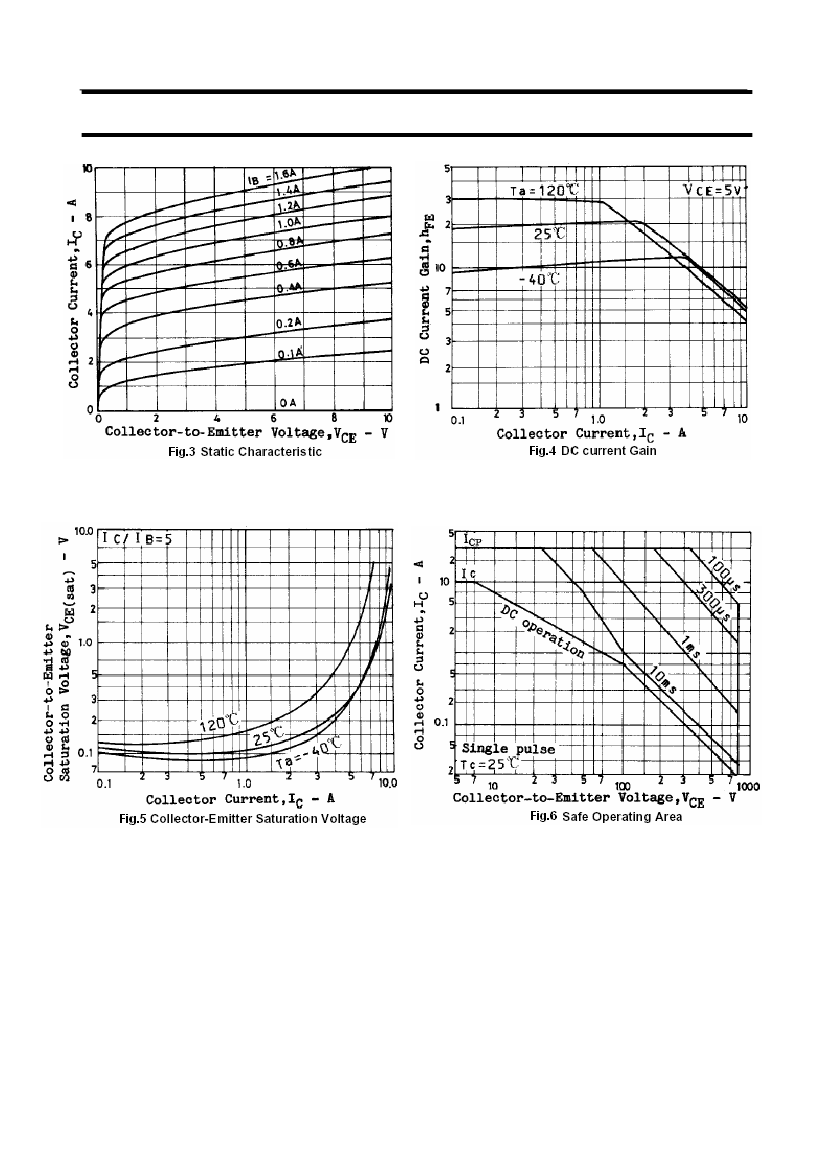

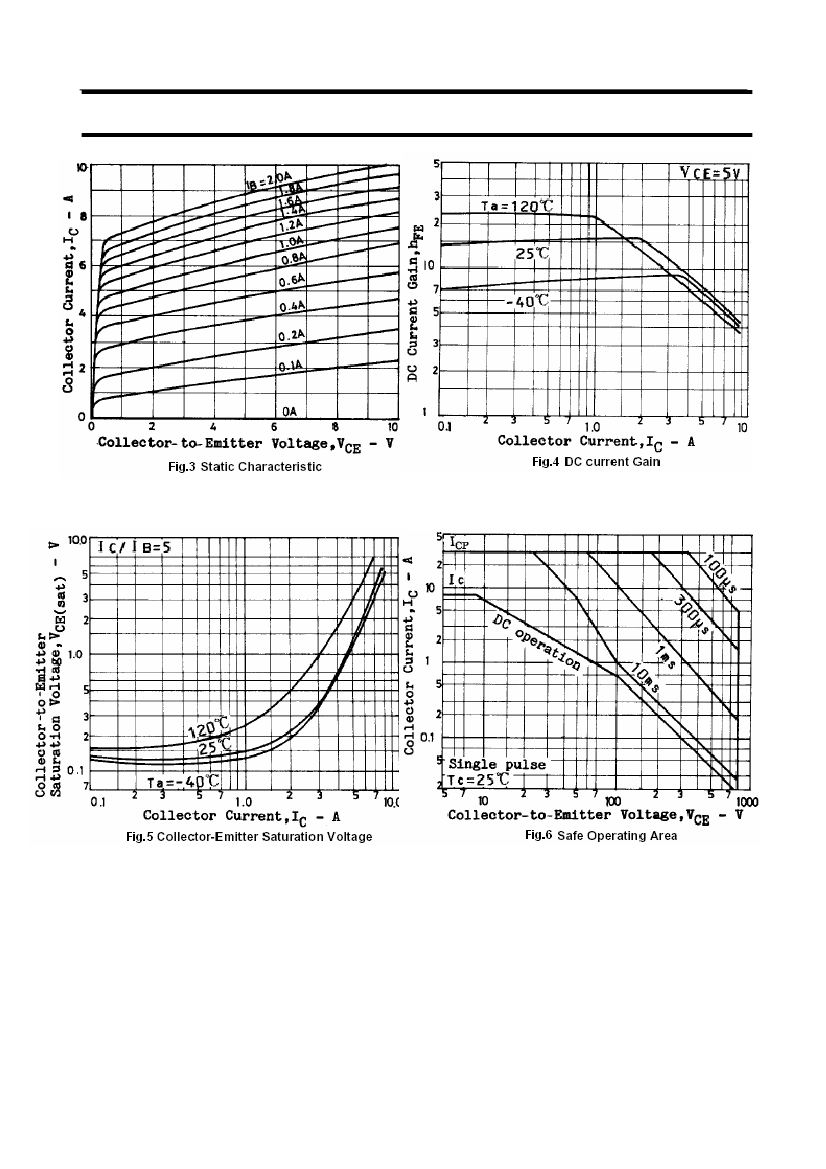

2SD1886
4
