Pomona
®
Model MDP-ST
Double Banana Plug With
Solder Turret Terminals
FEATURES:
•
Simplified attachment of cables or small components by means of solder turrets.
•
For test versatility, banana plugs can be vertically stacked to the banana plug.
•
Banana plug spring is Beryllium Copper for long insertion life.
MATERIALS:
Banana Plug: Body - Brass, Nickel Plated
Spring: Beryllium Copper, Nickel Plated
Insulation: Polypropylene, Color: Black
Marking: “MDP-ST”, “POMONA ELECTRONICS CO, INC. POMONA, CALIF.”
RATINGS:
Voltage: Hand-held Testing: 30VAC/60VDC Max.
Hand Free Testing in controlled Voltage Environment: 5000 WVDC.
ORDERING INFORMATION:
Model MDP-ST-*
* = Standard Colors, -0 Black, -2 Red

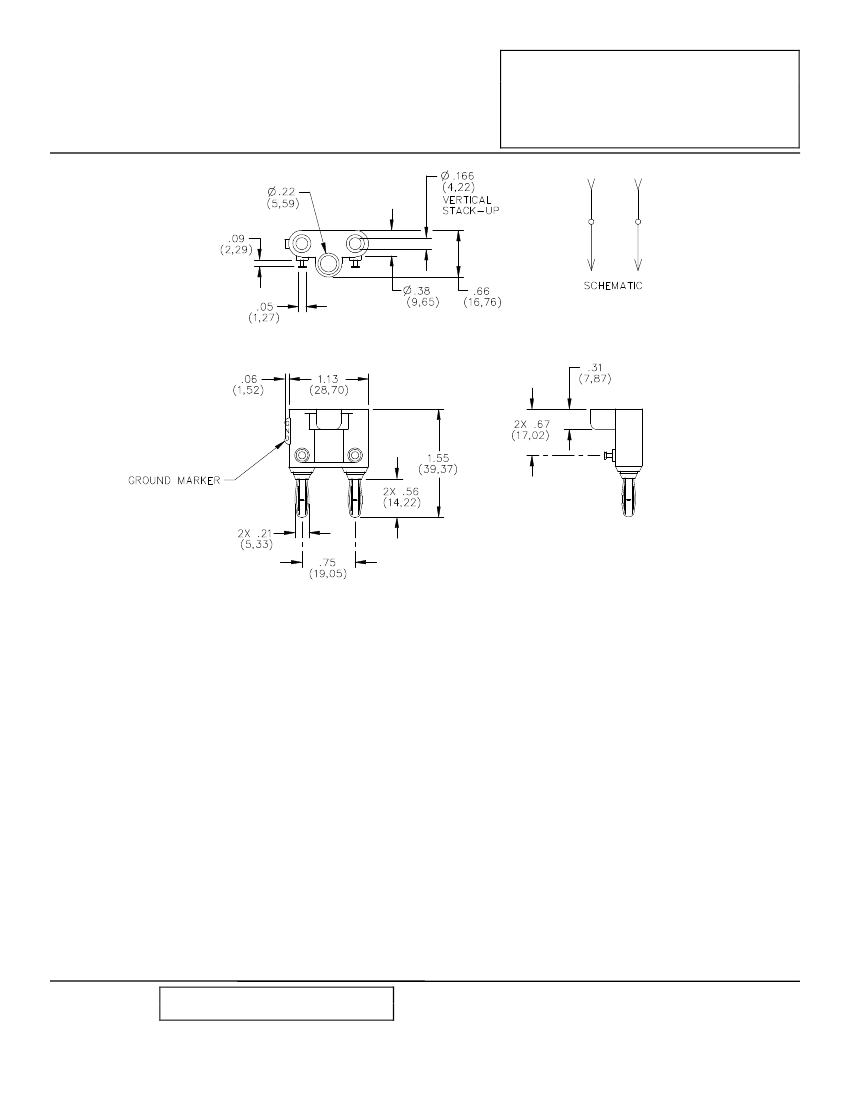

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
6/9/99
SY/EH/LS
Made in USA
Sales: 909-469-2900 Fax: 909-629-3317
Technical Assistance: 800-241-2060
PomonaACCESS
90505
(800) 444-6785 or (949) 253-3858
More drawings available at www.pomonaelectronics.com
Page 1 of 1
R:\Release\DataSheet\1_Market_00\D_MDP-ST_1_01.doc
