T-1204: Description2 kW Transformer; CategoryPower management transformer; File Size37KB，1 Pages; ManufacturerRhombus Industries, Inc.; Websitehttp://www.rhombus-ind.com/

Download Datasheet Parametric View All

T-1204 Overview

2 kW Transformer

T-1204 Parametric

Parameter Name	Attribute value
Maker	Rhombus Industries, Inc.
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	OPERATING FREQUENCY: 78 KHZ
Center click function 1	NO
Center click function 2	NO
high	46.7 mm
Insulation voltage	1500 V
length	70.9 mm
Installation features	SURFACE MOUNT
Number of secondary windings	2
Output current 1	5 A
Output current 2	5 A
Output voltage 1	200 V
Output voltage 2	200 V
physical size	70.9mm X 71.9mm X 46.7mm
main rating	SINGLE 300V
surface mount	YES
Transformer type	POWER TRANSFORMER
width	71.9 mm

Preview

Download Datasheet

View All

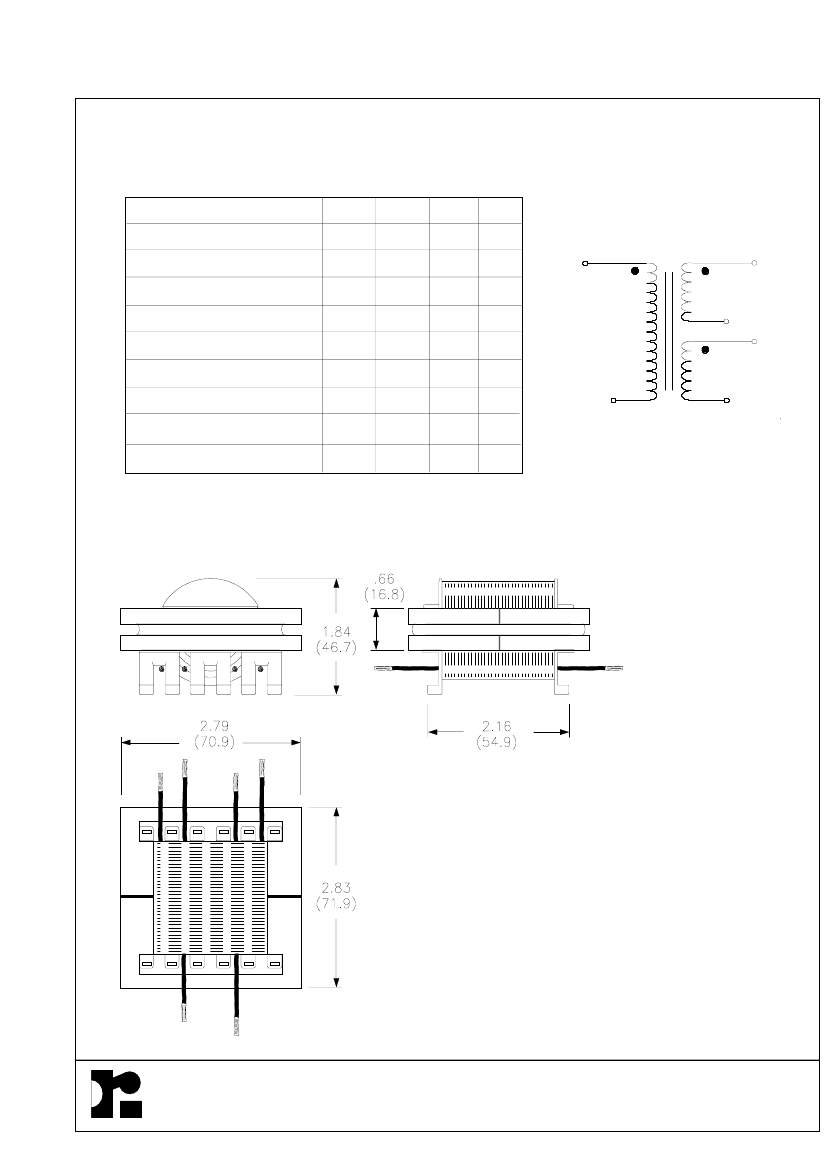

2 kW Transformer P/N T-1204

Parameter

Inductance

Primary 300 V @ 7 amps

Secondary 200V @ 5 Amps

Interwinding Capacitance

DC Resistance

(1-2)

(3-4)

(5-6)

Hi-Pot

Pins (1-2) to (3-4) & (5-6)

1500

78

47

19.4

14.0

pF

(1-2)

Min.

Typ.

275

Max.

Units

µH

Schematic Diagram

2

SEC

PRI

mΩ

V

RMS

kHz

3

4

5

SEC

1

TURNS RATIO

1 : 0.46 : 0.46

(1-2: 4-3 : 6-5 )

6

Operating Frequency

Physical Dimensions

inches (mm)

NOTE: Start = Long Wire

Stop = Short Wire

6

5

4

3

1

2

5/20/97

Rhombus

Industries Inc.

Transformers & Magnetic Products

15801 Chemical Lane, Huntington Beach, CA 92649

Phone: (714) 898-0960

FAX: (714) 896-0971

FSCM No. 16714
