BR17A-F1-V1

Description
Power/Signal Relay, 2 Form C, DPDT, Latched, 0.12A (Coil), 6VDC (Coil), 720mW (Coil), 2A (Contact), 28VDC (Contact), DC Input, Random, AC/DC Output, Panel Mount,
CategoryMechanical and electronic products    relay
File Size237KB,2 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Download Datasheet Parametric View All

BR17A-F1-V1 Overview

Power/Signal Relay, 2 Form C, DPDT, Latched, 0.12A (Coil), 6VDC (Coil), 720mW (Coil), 2A (Contact), 28VDC (Contact), DC Input, Random, AC/DC Output, Panel Mount,

BR17A-F1-V1 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
body width10.16 mm
body height10.41 mm
Body length or diameter20.57 mm
Maximum coil current (DC)0.12 A
Coil operating voltage (DC)4.4 V
Coil power720 mW
Coil release voltage (DC)3 V
Coil resistance50 Ω
Maximum coil voltage (DC)6 V
Nominal coil voltage6 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load2A@115VAC
Maximum contact current (AC)2 A
Maximum contact current (DC)2 A
Contact (DC) maximum rated R load2A@28VDC
Contact resistance100 mΩ
Maximum contact voltage (AC)115 V
Maximum contact voltage (DC)28 V
Contact/Output Power TypeAC/DC
Dielectric strength between coil and contacts1000 Vrms
Dielectric strength between breaking contacts500 Vrms
Input switching control typeRandom
Insulation resistance10000000000 Ω
Installation featuresPANEL MOUNT
Number of terminals8
operating hours5 ms
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
physical size20.57mm x 10.16mm x 10.41mm
GuidelineMIL-PRF-39016
Relay actionLATCHED
Relay style2 FORM C
Relay functionDPDT
Relay typePOWER/SIGNAL RELAY
release time5 ms
surface mountNO
Terminal length0.0053 inch
Termination typeSOLDER HOOK
weight7 g
Base Number Matches1

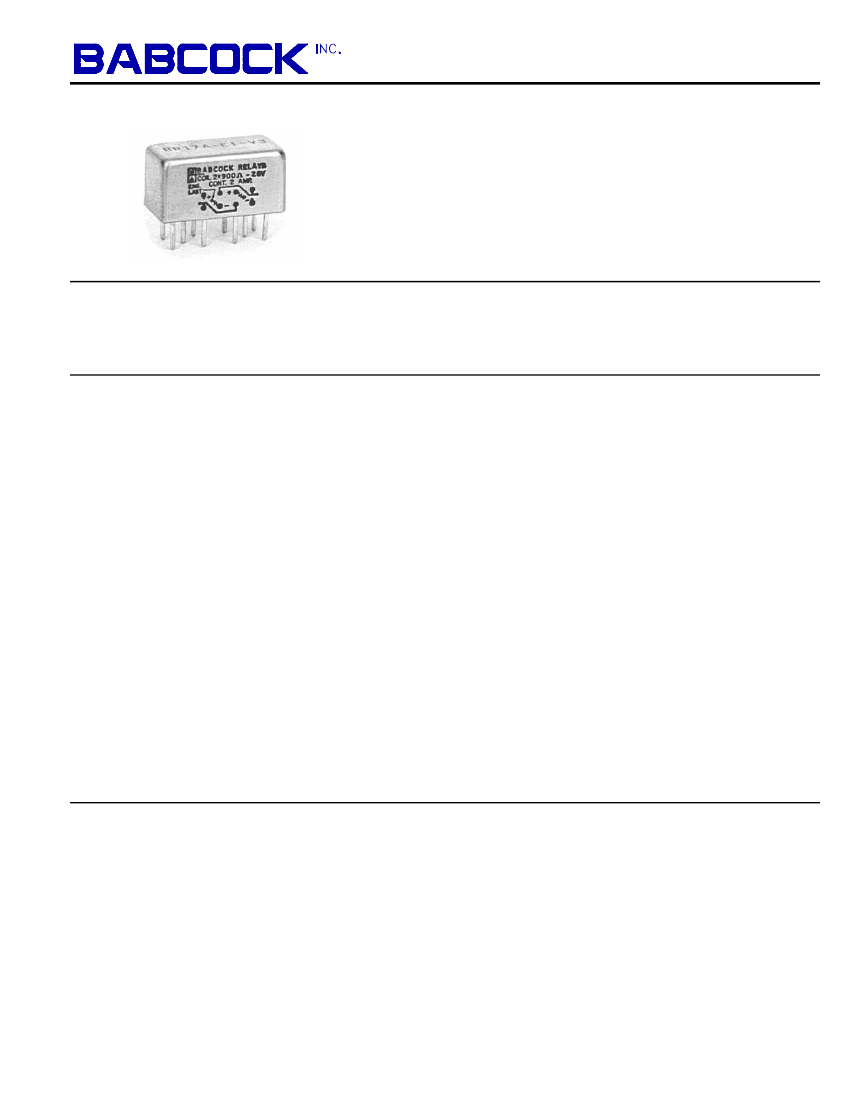

BR17
Half-Size Crystal Can
Welded • DPDT
Dry Circuit to 2 Amps
Welded • DPDT
UNIVERSAL CONTACTS…permit
operation from dry circuit to rated load with the same contact set.
UNIQUE HEAT SINK/MAGNETIC FLUX CONDUCTOR…improves
heat dissipation characteristics— insures
lower temperature rise.
SPECIALLY-DESIGNED MAGNETIC CIRCUIT…locates
armature inside coil for more efficient switching action.
SPECIFICATIONS
GENERAL
Contact Arrangement
.........................2PDT (2 Form C)
Magnetic Latching
Weight....................................................
0.25 oz approx.
Designed to meet the requirements of MIL-PRF-39016.
PERFORMANCE
Contact Rating
(Note 1)
Resistive ............. 2 Amps @ 28 VDC or 115V 400 Hz
(Case Ungrounded)
Low Level........................... 10-50 µA @ 10-50 mv DC
or peak AC (Note 4)
Latch/Reset Power:
BR17A and BR17M ........................... 175 mw approx.
BR17B ................................................. 90 mw approx.
Latch/Reset Time..............3
ms max, excluding bounce
time at nominal coil voltage
Contact Bounce Time.....
2 ms max @ 2 Amps 28 VDC
Contact Resistance
Before Life ........................ .0.050 Ohms max @ rated
current, 6 or 28 VDC
After Life ........................... 0.100 Ohms max. @ rated
current, 6 or 28 VDC

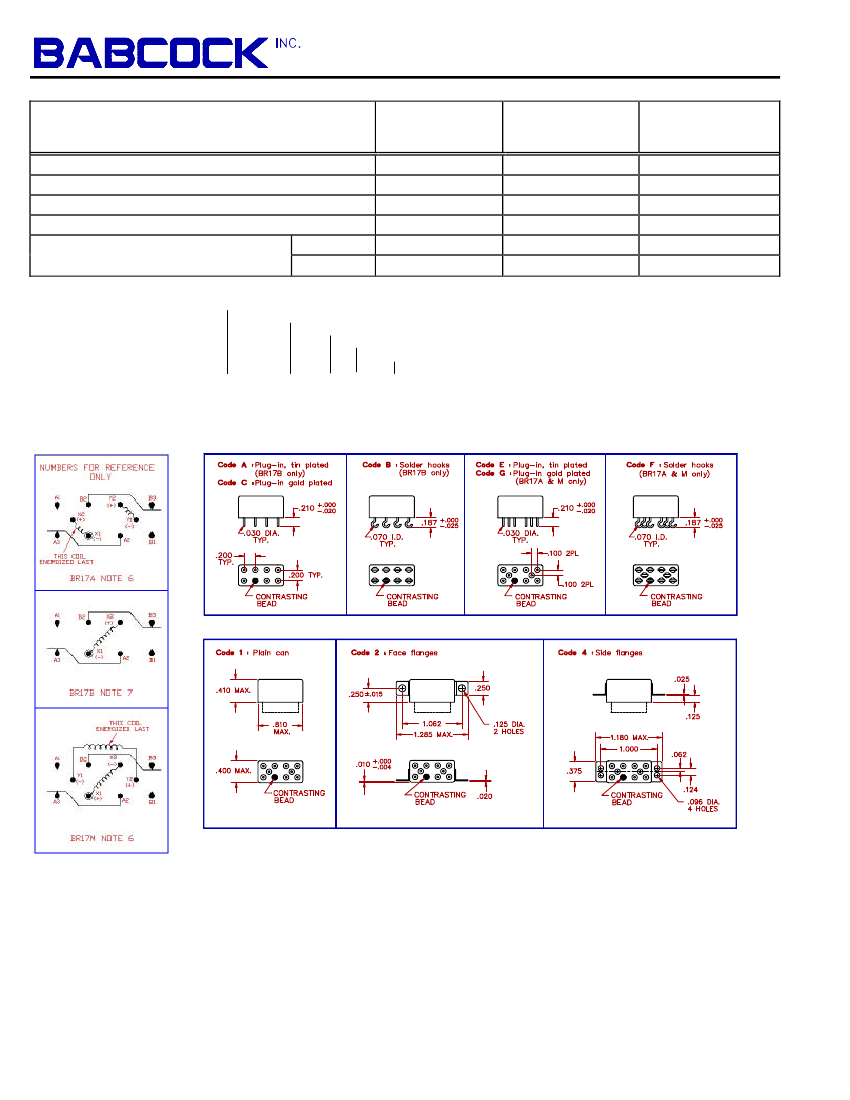

Notes:
1. For case grounded loads and other ratings, consult the
factory.
2. For applications requiring other shock and vibration
levels, consult the factory.
3. For other ratings consult the factory.
4. Relay contacts which have switched high level currents
are no longer suitable for switching low level loads.
5. Contacts were placed in the position shown by placing
voltage with the polarity shown on the indicated coil
(reset). To switch contacts, a voltage of indicated
polarity must be applied to the other coil (Latch).
6. Contacts were placed in position shown by placing
voltage with the polarity indicated on the coil. To switch
contacts a voltage of the reverse polarity must be
applied to the coil.
ENVIRONMENTAL
o
o
Temperature Range..............................-65
C to +125 C
Vibration
(Note 2)............................. 0.4" DA 10 - 38 Hz,
20 G's 38 - 2,000 Hz
Shock (Operating)
(Note 2) .......................50 G's 11 ms
ELECTRICAL CHARACTERISTICS
Duty Cycle
.....................................................Continuous
Insulation Resistance
o
10,000 megohms @ 500V 25 C
o
1,000 megohms @ 500V 125 C
Dielectric Strength:
Sea Level:
Between Coils (BR17A & M) .................500 VRMS
Contact to Case..................................1,000 VRMS
Contact to Coil....................................1,000 VRMS
Coil to Case...........................................500 VRMS
Across Open Contacts ..........................500 VRMS
70,000 Feet
All points ................................................350 VRMS
