852-015-01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 852-015-01

852-015-01: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size223KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

852-015-01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	852-015-01	-	-	View	Buy Now

852-015-01 Overview

Connector Accessory

852-015-01 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Factory Lead Time	17 weeks 1 day
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	852-015-01
Base Number Matches	1

Preview

Download Datasheet

View All

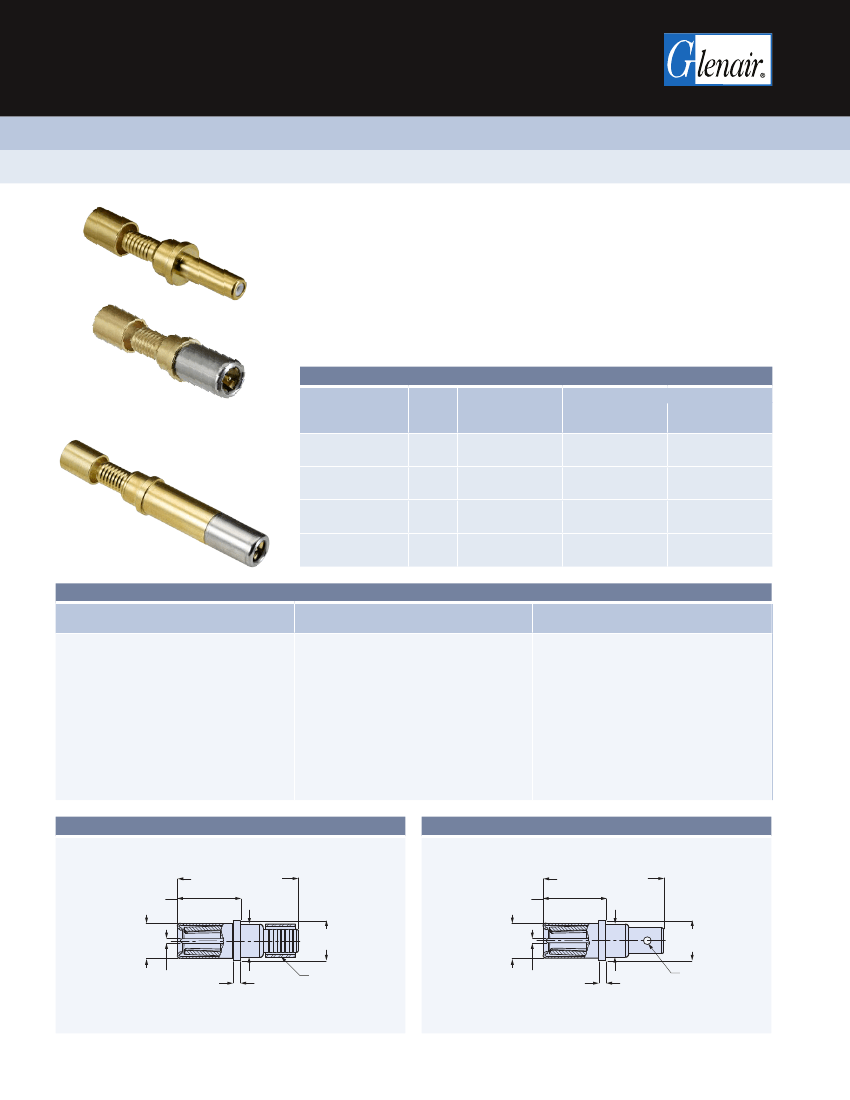

RF, Microwave and Datalink Contacts

for MIL-DTL-38999, SuperNine

, Mighty Mouse and

Micro-Crimp

Connectors

Low-Loss Matched-Impedance Coaxial Contacts

Size #12 50 Ohm Matched-Impedance Coaxial Contacts

Coax contacts fit Glenair Series 79 Micro-Crimp, Series 80 Mighty Mouse, and MIL-DTL-38999

Series I, II, III and IV connectors with size 12 contact cavities. 50 ohm nominal impedance.

DC – 3 GHz frequency range. Contacts are snap-in, rear-release. Gold plated copper alloy,

fluoroplastic insulator.

Pin Contact

DC – 3 GHz frequency range

50 ohm nominal impedance

50 microinches gold over nickel

plating

Crimp termination

AS39029 performance

Accepts RG-405-Flex low-loss

microwave cable

Socket Contact

(MIL-DTL-38999 Series

II, Glenair Series 79 and

Series 80)

Size 12 50 Ohm Matched-Impedance Coaxial Contacts

RG Cable

RG178

(M17/93-RG178)

RG316

(M17/113-RG316)

Max.

Freq.

3 GHz

3 GHZ

Pin Contact

852-016-03

852-016-01

852-016-02

852-018

Socket Contact

M38999 Series I, M38999 Series II

III, IV

Series 79, 80

852-019-03

852-019-01

852-019-02

852-037

852-015-03

852-015-01

852-015-02

852-017

Socket Contact

(MIL-DTL-38999

Series I, III, and IV)

RG316DS

(M17/152-00001)

RG405-FLEX

Technical Data

Specifications

Construction

Connector Compatibility

Operating temperature: -650C. to +2000C.

VSWR: 1.32:1 max. @ 3 GHz

Nominal impedance: 50 ohms

Insertion loss: 0.20 dB maximum at 3 GHz

Dielectric withstanding voltage: 1000 Vac

rms at sea level

Current rating: 1 ampere

Durability: 500 mating cycles

Shock: EIA-364-27 condition D

Vibration: EIA-364-28 condition VI, letter J

Center contact, body, crimp sleeve:

copper

alloy, 50 microinches gold over nickel plating

Insulator:

fluoroplastic

MIL-DTL-38999 Series I, II, III and IV

Glenair Series 23 SuperNine®

Glenair Series 79 Micro-Crimp®

Glenair Series 80 Mighty Mouse

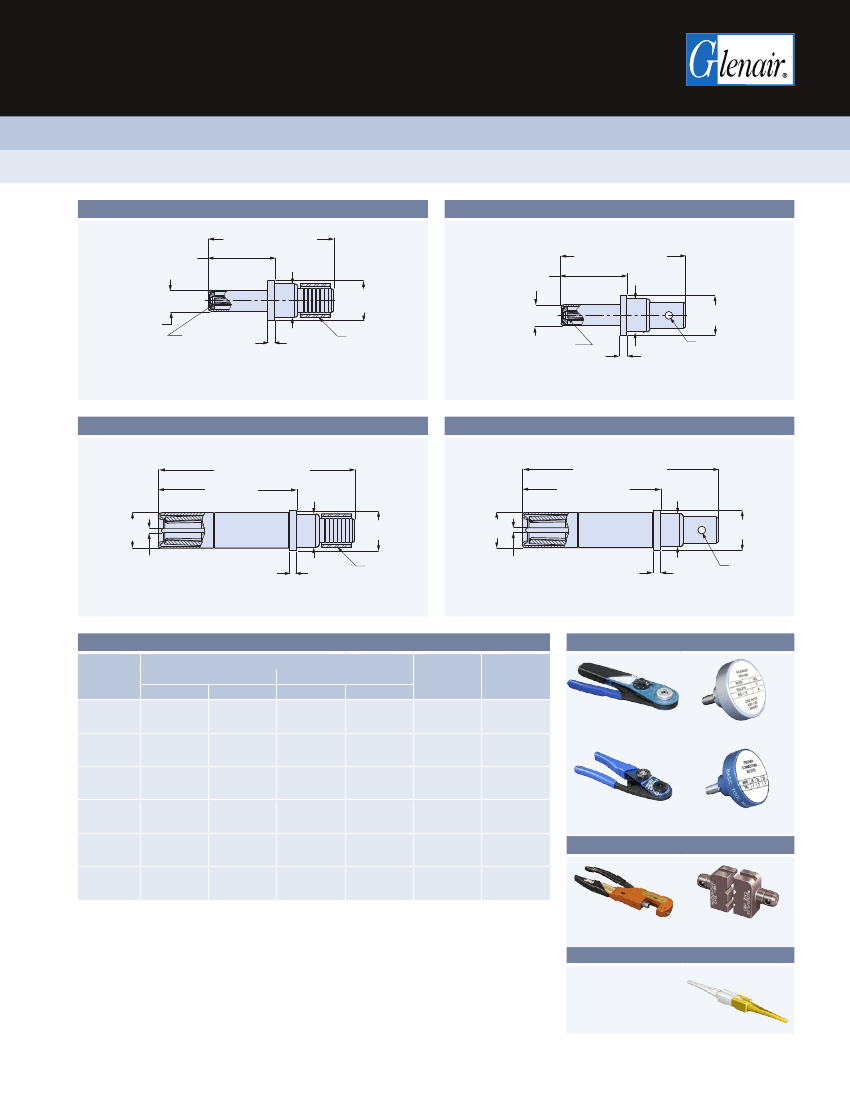

Socket Contact 852-015

Socket Contact 852-017

.289/.279

(7.34/7.09)

.161/.158

(4.09/4.01)

Ø .0205/.0195

(0.521/0.495)

.560 (14.22) MAX

.151/.148

(3.84/3.76)

Ø.182/.179

(4.62/4.55)

CRIMP

.033/.029 FERRULE

(0.83/0.74)

.289/.279

(7.34/7.09)

.161/.158

(4.09/4.01)

Ø .0205/.0195

(0.521/0.495)

.560 (14.22) MAX

.151/.148

(3.84/3.76)

Ø.182/.179

(4.62/4.55)

SOLDER

.033/.029

HOLE

(0.83/0.74)

Dimensions in Inches (millimeters) are subject to change without notice.

852-015-01 Related Products

	852-015-01	852-015-03
Description	Connector Accessory	Connector Accessory
Reach Compliance Code	unknown	compliant
Connector bracket type	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY
Manufacturer's serial number	852-015-01	852
Base Number Matches	1	1
