SavantIC Semiconductor
Product Specification
Silicon PNP Power Transistors
2SB979
·
DESCRIPTION
With TO-3PN package
·Wide area of safe operation
APPLICATIONS
·For power amplifier and general purpose
applications
PINNING
PIN
1
2
3
Base
Collector;connected to
mounting base
Emitter
Fig.1 simplified outline (TO-3PN) and symbol
DESCRIPTION
Absolute maximum ratings(Tc=25 )
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
P
C
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector power dissipation
Junction temperature
Storage temperature
T
C
=25
Open emitter
Open base
Open collector
CONDITIONS
VALUE
-100
-100
-5
-5
60
150
-55~150
UNIT
V
V
V
A
W
SavantIC Semiconductor
Product Specification
Silicon PNP Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter breakdown voltage
Collector-base breakdown voltage
Emitter-base breakdown voltage
Collector-emitter saturation voltage
Base-emitter on voltage
Collector cut-off current
Emitter cut-off current
DC current gain
DC current gain
Transition frequency
CONDITIONS
I
C
=-30mA ;I
B
=0
I
C
=-5mA ;I
E
=0
I
E
=-5mA ;I
C
=0
I
C
=-3A; I
B
=-0.3A
I
C
=-1A;V
CE
=-5V
V
CB
=-100V; I
E
=0
V
EB
=-5V; I
C
=0
I
C
=-1A ; V
CE
=-5V
I
C
=-3A ; V
CE
=-5V
I
C
=-1A ; V
CE
=-5V
40
20
20
MIN
-100
-100
-5
2SB979
SYMBOL
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
V
CEsat
V
BE
I
CBO
I
EBO
h
FE-1
h
FE-2
f
T
TYP.
MAX
UNIT
V
V
V
-1.5
-1.5
-50
-50
200
V
V
µA
µA
MHz
2
SavantIC Semiconductor
Product Specification
Silicon PNP Power Transistors

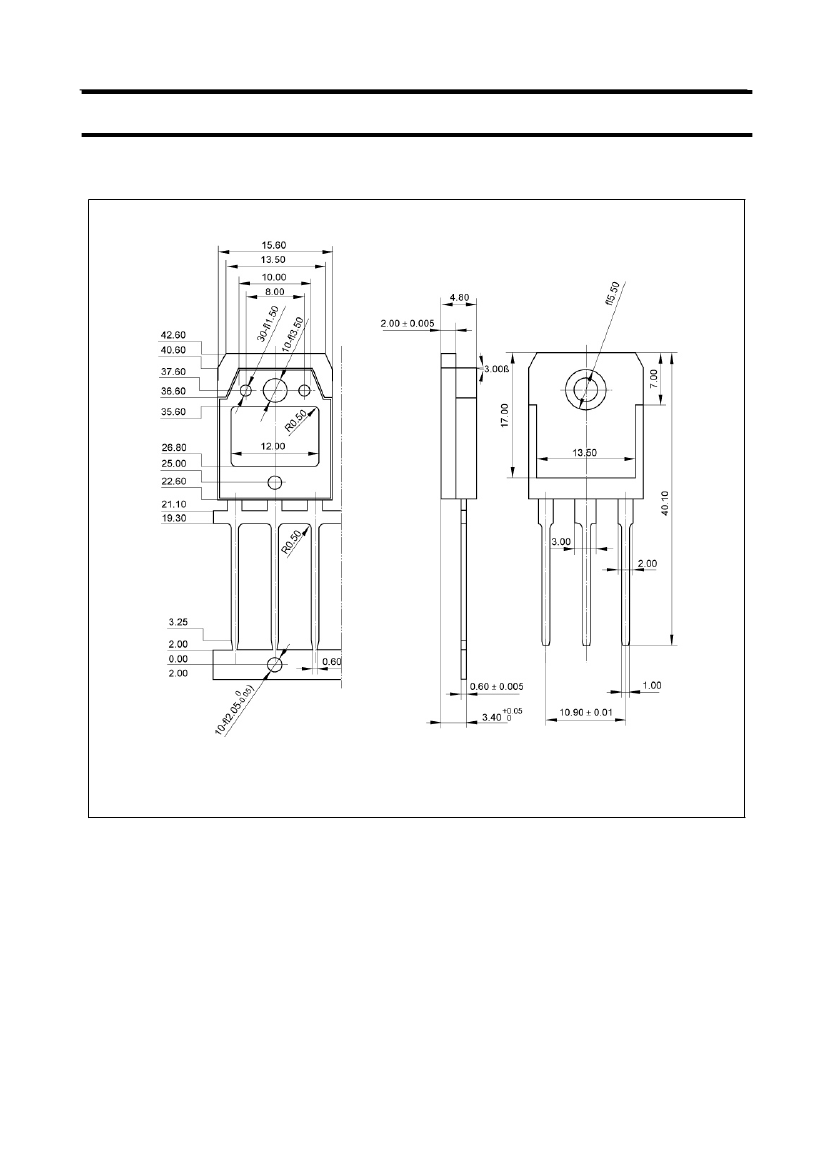

PACKAGE OUTLINE
2SB979
Fig.2 outline dimensions
3
