N3001I datasheet, PDF - EEWORLD Datasheet

N3001I: DescriptionMicroprogram Sequencer, 8-Bit, TTL, CDIP40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size320KB，8 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric View All

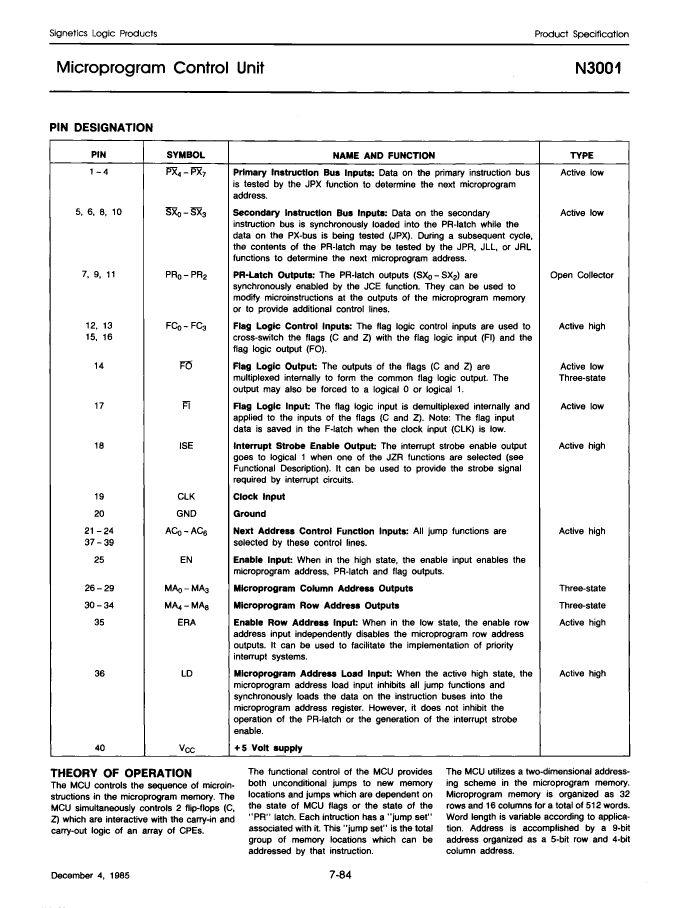

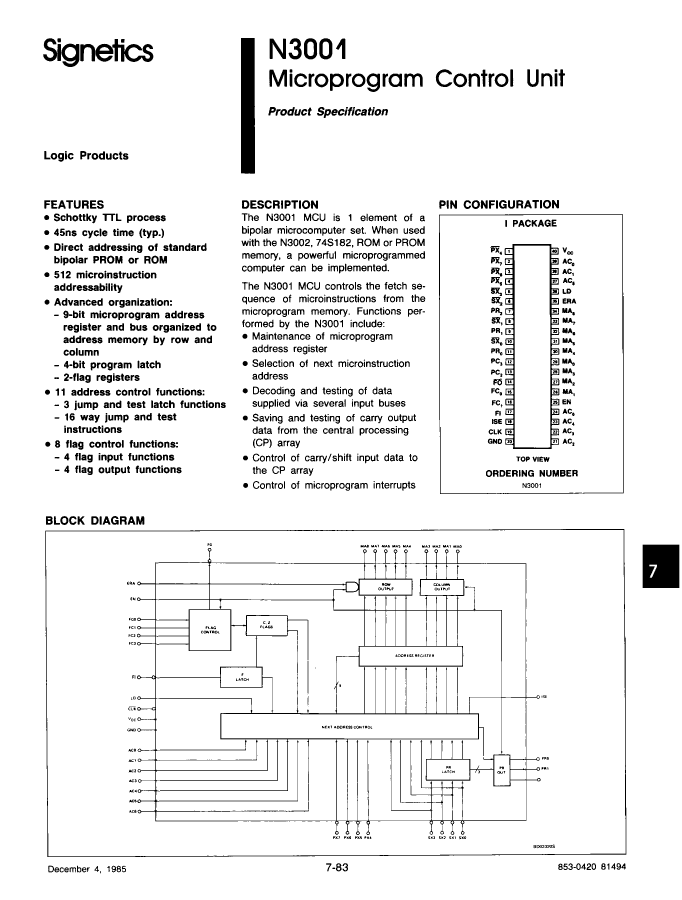

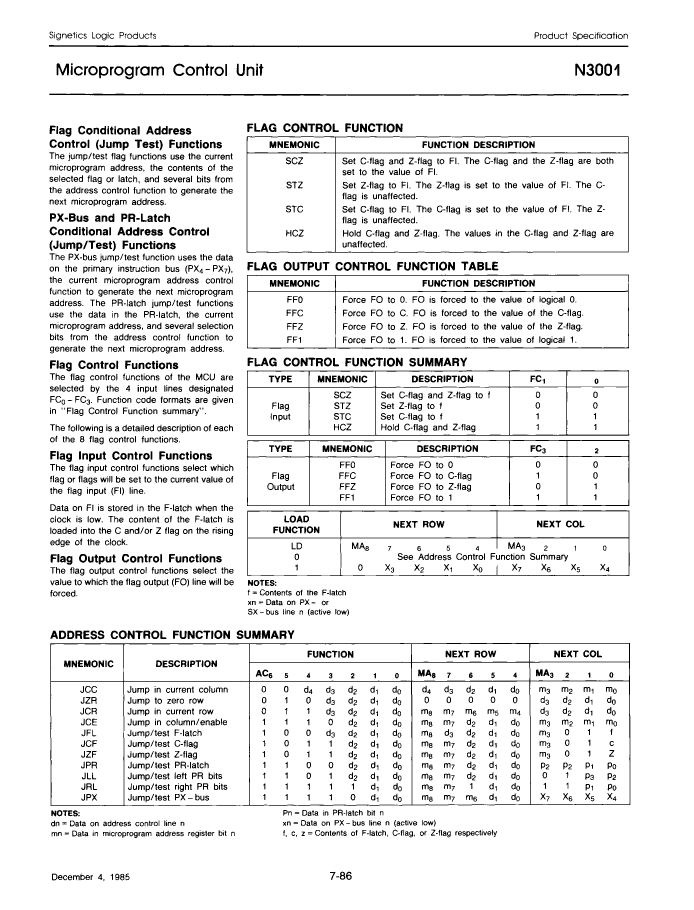

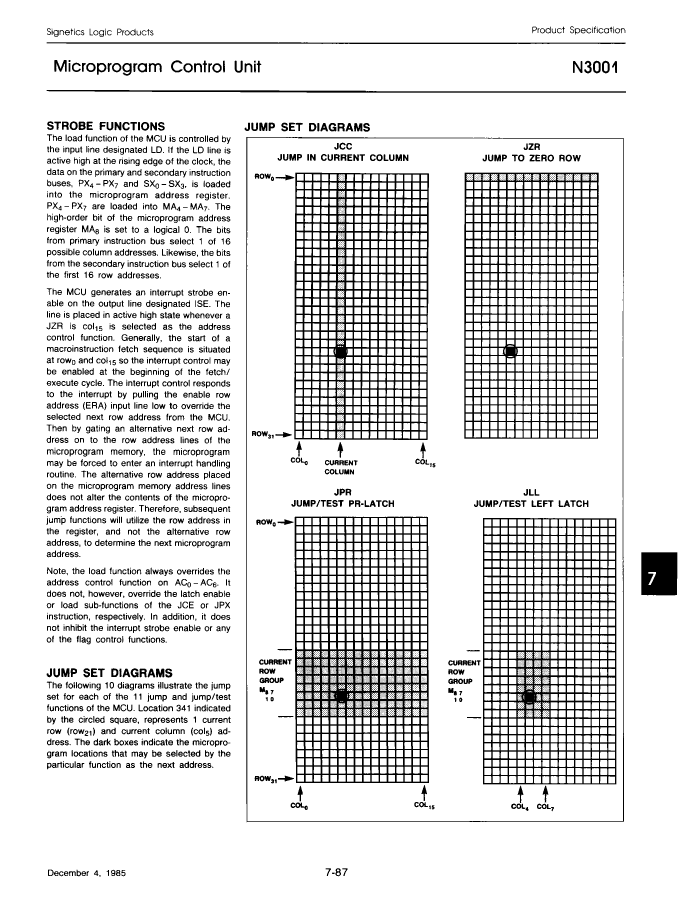

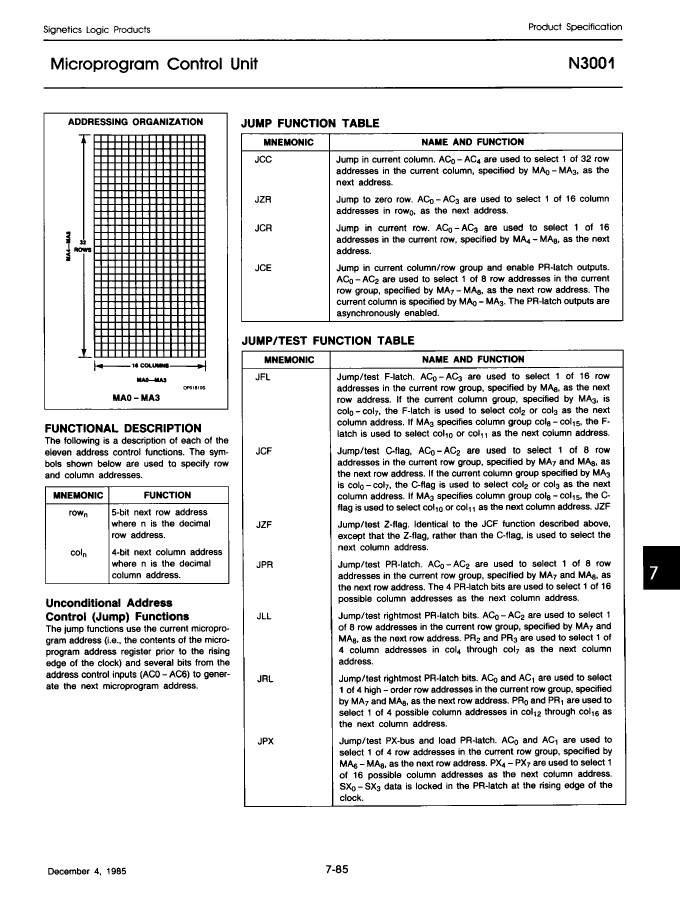

N3001I Overview

Microprogram Sequencer, 8-Bit, TTL, CDIP40

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Other features	512 MICROINSTRUCTIONS
maximum clock frequency	16.67 MHz
External data bus width	8
JESD-30 code	R-CDIP-T40
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply voltage	5.25 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	BIT-SLICE PROCESSOR, MICROPROGRAM SEQUENCER
Base Number Matches	1
