T-10803G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> T-10803G

T-10803G: Description10BASE-T/ETHERNET ISOLATION TRANSFORMER; CategoryPower management transformer; File Size36KB，1 Pages; ManufacturerRhombus Industries, Inc.; Websitehttp://www.rhombus-ind.com/

Download Datasheet Parametric View All

T-10803G Overview

10BASE-T/ETHERNET ISOLATION TRANSFORMER

T-10803G Parametric

Parameter Name	Attribute value
Maker	Rhombus Industries, Inc.
Reach Compliance Code	unknow
ECCN code	EAR99
application	10 BASE-T; ETHERNET
ET product minimum value	2.3 V-us
high	4.57 mm
Insulation voltage	500 V
length	22.48 mm
Manufacturer's serial number	T-10803
Installation features	SURFACE MOUNT
Number of functions	1
method of packing	TUBE
physical size	22.48mm X 7.24mm X 4.57mm
Primary inductance	60 µH
Maximum pulse rise time	3 ns
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1:1
width	7.24 mm

Preview

Download Datasheet

View All

10BASE-T/ETHERNET ISOLATION TRANSFORMER

Turns Ratio ( +5% )

1:1

TRIPLE STYLE

(3 Transformers per Package)

IEEE 802.3 (10 BASE 2, 10 BASE 5)

& ECMA Compatible

Flammability: Materials used in

the production of these units

meet requirements of UL94-VO

and IEC 695-2-2 needle flame

test.

Parts shipped in anti-static

tubes. 19 pieces per tube

PARAMETER

Open Circuit Inductance

Leakage Inductance

Interwinding Capacitance (C

W/W

)

Rise Time

Primary DC Resistance

Secondary DC Resistance

High Potential Test

Test Conditions:

Oscillation Voltage = 20mV

Oscillation Frequency = 100.0 KHz

MIN.

MAX.

0.2

UNITS

µHy

VµS

2.3

0.25

500

ohms

RMS

SMD versions

available on

Tape & Reel

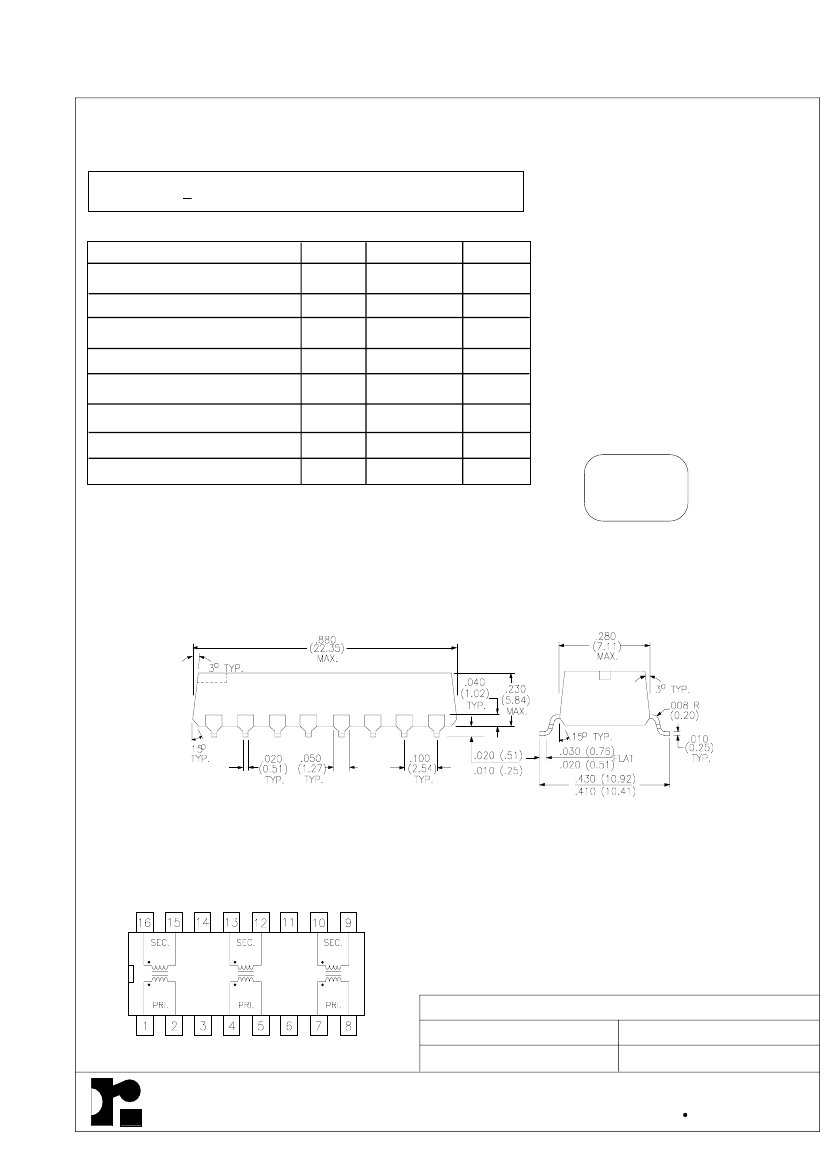

PHYSICAL DIMENSIONS

All dimensions in inches (mm):

SCHEMATIC DIAGRAM:

RHOMBUS P/N:

T-10803G

CUST P/N:

DATE: 07/02/98

NAME:

SHEET: 1 OF 1

Rhombus

Industries Inc.

Transformers & Magnetic Products

www.rhombus-ind.com

15801 Chemical Lane,

Huntington Beach, CA 92649-1595

Phone: (714) 898-0960 FAX: (714) 896-0971
