T-13038: Description10BASE T ISOLATION TRANSFORMER; CategoryPower management transformer; File Size38KB，1 Pages; ManufacturerRhombus Industries, Inc.; Websitehttp://www.rhombus-ind.com/

Download Datasheet Parametric View All

T-13038 Overview

10BASE T ISOLATION TRANSFORMER

T-13038 Parametric

Parameter Name	Attribute value
Maker	Rhombus Industries, Inc.
Reach Compliance Code	unknow
ECCN code	EAR99
application	10 BASE-T
high	4.57 mm
Insulation voltage	2000 V
length	22.35 mm
Manufacturer's serial number	T-13038
Installation features	THROUGH HOLE MOUNTED
Number of functions	1
physical size	22.35mm X 7.11mm X 4.57mm
Primary inductance	150 µH
surface mount	NO
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	2CT:1CT; 1CT:1CT
width	7.11 mm

Preview

Download Datasheet

View All

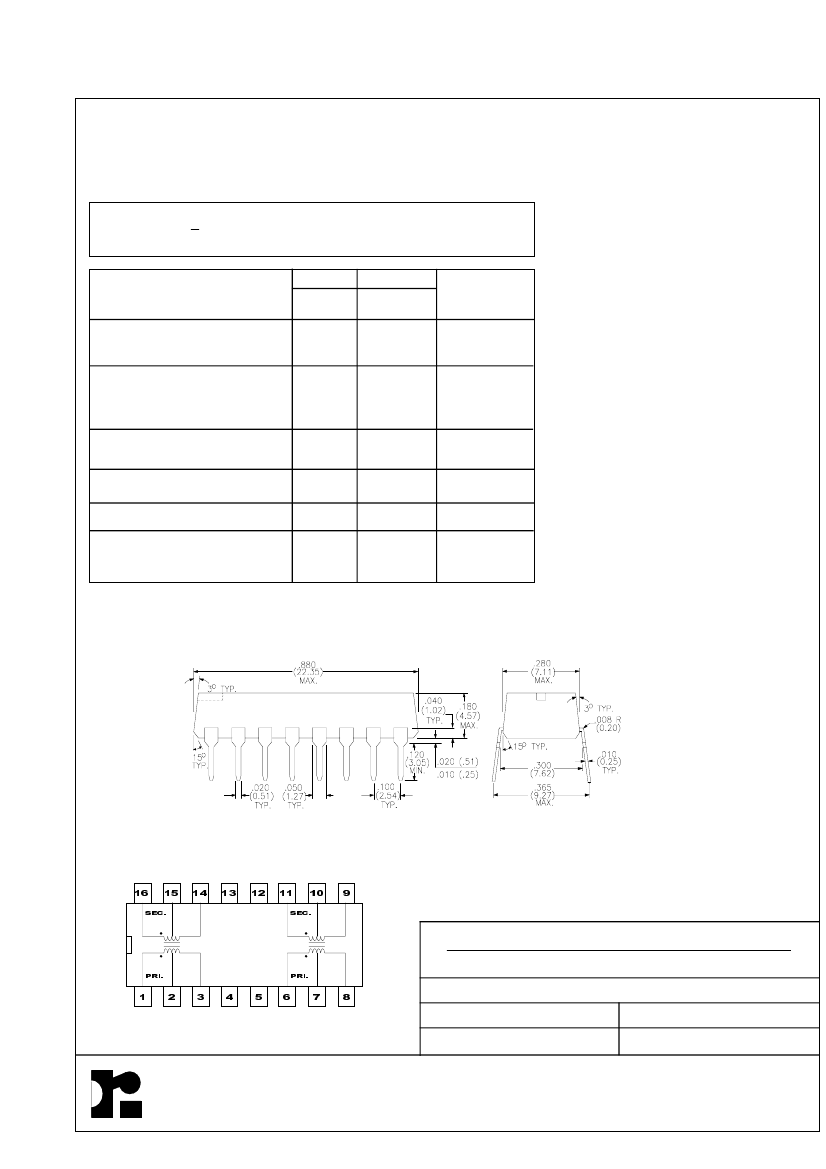

10BASE T ISOLATION TRANSFORMER

High Isolation 2000Vrms

Turns Ratio

+2%

2CT:1CT (Pins 1-3:16-14)

1CT:1CT (Pins 6-8:11-9)

Fast Rise Times

Meets ECMA Requirements

PARAMETER

Open Circuit Inductance

Oscillation Voltage = 20mV

Oscillation Frequency = 100.0 KHz

MIN.

150

MAX.

UNITS

µHy

IEEE 802.3 Compatible

(10BASE 2, 10BASE 5, & 10BASE T)

Common Mode

Choke Option

T-14838

Surface Mount Option

(add suffix "G" to part#)

T-13038G

Leakage Inductance

Oscillation Level = 20mV

Oscillation Frequency = 100.0 KHz

Interwinding Capacitance (C

W/W

)

Oscillation Frequency = 100.0 KHz

Primary DC Resistance

Secondary DC Resistance

1.0

µHy

20

pF

0.9

ohms

High Potential Test

2 Kv

V

RMS

PHYSICAL DIMENSIONS

All dimensions in inches (mm):

SCHEMATIC DIAGRAM:

6(&

35,

RHOMBUS INDUSTRIES INC.

FSCM NO. 16714

RHOMBUS P/N:

T-13038

CUST P/N:

DATE:

11/12/96

NAME:

SHEET:

1 OF 1

Rhombus

Industries Inc.

Transformers & Magnetic Products

15801 Chemical Lane, Huntington Beach, CA 92649

Phone: (714) 898-0960

FAX: (714) 896-0971

www.rhombus-ind.com
