ADLF-06-210 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> ADLF-06-210

ADLF-06-210: DescriptionData Line Filter, 6 Function(s); CategoryAnalog mixed-signal IC filter; File Size167KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ADLF-06-210 Overview

Data Line Filter, 6 Function(s)

ADLF-06-210 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum attenuation frequency	100 MHz
minimum attenuation frequency	0.1 MHz
Attenuation at maximum frequency	36 dB
Attenuation@frequency min	6 dB
Maximum DC resistance	0.35 Ω
filter type	DATA LINE FILTER
high	5.5 mm
inductance	21 µH
length	11.33 mm
Manufacturer's serial number	ADLF
Installation type	SURFACE MOUNT
Number of functions	6
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L11.33XB6.75XH5.5 (mm)/L0.445XB0.265XH0.216 (inch)
Base Number Matches	1

Preview

Download Datasheet

View All

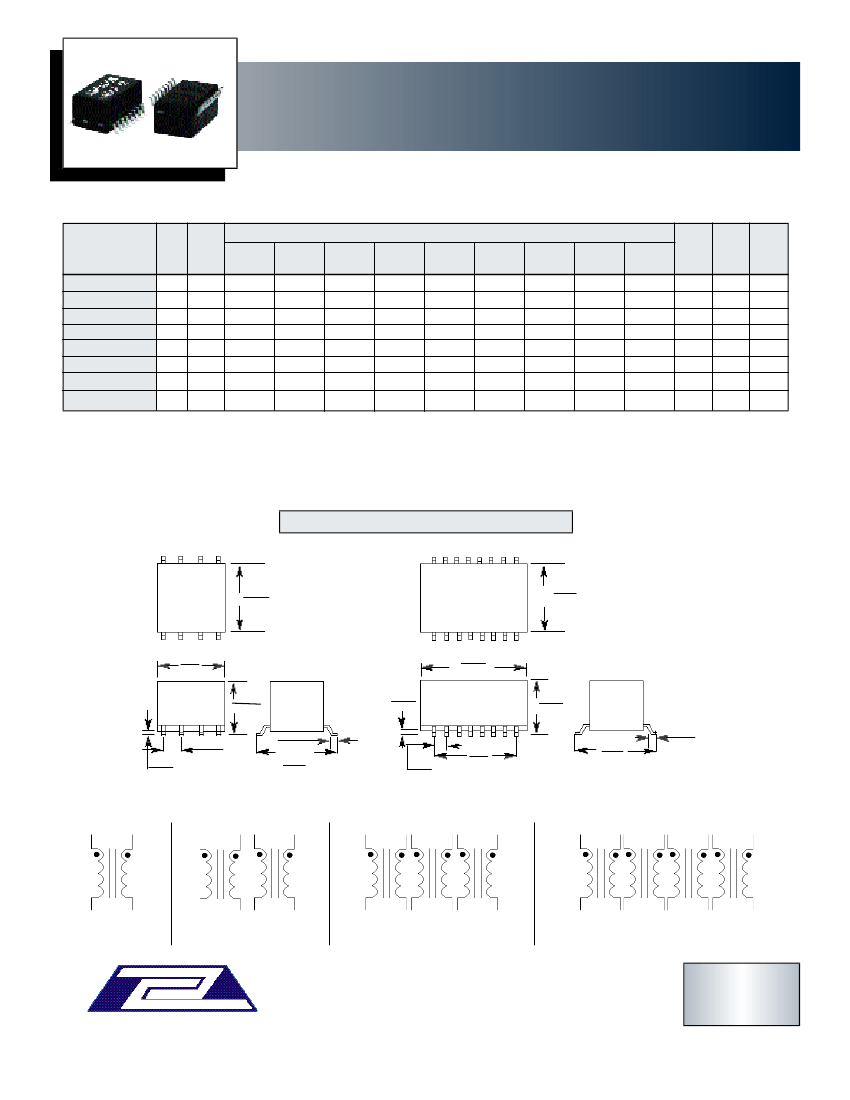

SURFACE-MOUNTED DATA LINE CMC

ADLF SERIES

STANDARD SPECIFICATIONS

part

Number

µH

Lines

(

MIN

)

Common Mode Attenuation (dB

100

KHz

MHz

100

MHz

MIN

)

DCR

500

MHz

GHz

Ω

SCH Pkg

(MAX)

300

MHz

ADLF-02-470

ADLF-04-101

100

ADLF-04-240

ADLF-04-330

ADLF-06-210

ADLF-06-680

ADLF-08-360

ADLF-08-680

NOTES:

1. Inductance (L) measured @ 100 KHz, 0.1 mV

RMS

2. Operating temperature: 0

C to 70

3. Storage temperatrure:-55

C to 125

4. Dimensions: inches / mm; see spec sheet for tolerance

5. Specifications subject to change without notice

0.40

0.6

0.25

0.20

0.35

0.20

0.63

0.20

limits

PHYSICAL CHARACTERISTICS

0.47

(12,0)

0.265

(6,75)

0.47

(12,0)

0.335

(8,52)

0.335

(8,52)

0.60

(15,3)

0.012

(0,30)

0.445

(11,33)

0.216

(5,50)

0.024

(0,61)

0.012

(0,30)

0.10

(2,54)

0.05

(1,27)

0.35

(8,89)

0.36

(9,14)

SCHEMATIC:

7 6

15 13

12 1 0

15 14

13 1 2

11 10

2 4

5 7

2 3

4 5

6 7

ABRACON

CORPORATION

29 Journey • Aliso Viejo, CA 92656 • USA

(949) 448-7070

• F

: (949) 448-8484

E-

MAIL

abinfo

abracon.com •

NTERNET

DDRESS

www.abracon.com

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

ADLF-06-210 Related Products

	ADLF-06-210	ADLF-02-470	ADLF-04-101	ADLF-04-240	ADLF-04-330	ADLF-06-680	ADLF-08-360	ADLF-08-680
Description	Data Line Filter, 6 Function(s)	Data Line Filter, 2 Function(s)	Data Line Filter, 4 Function(s)	Data Line Filter, 4 Function(s)	Data Line Filter, 4 Function(s)	Data Line Filter, 6 Function(s)	Data Line Filter, 8 Function(s)	Data Line Filter, 8 Function(s)
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum attenuation frequency	100 MHz	30 MHz	50 MHz	50 MHz	10 MHz	50 MHz	30 MHz	30 MHz
minimum attenuation frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Attenuation at maximum frequency	36 dB	44 dB	49 dB	37 dB	20 dB	30 dB	39 dB	39 dB
Attenuation@frequency min	6 dB	11 dB	14 dB	8 dB	2 dB	6 dB	8 dB	8 dB
Maximum DC resistance	0.35 Ω	0.4 Ω	0.6 Ω	0.25 Ω	0.2 Ω	0.2 Ω	0.63 Ω	0.2 Ω
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	5.5 mm	8.52 mm	8.52 mm	8.52 mm	8.52 mm	5.5 mm	5.5 mm	5.5 mm
inductance	21 µH	47 µH	100 µH	24 µH	33 µH	68 µH	36 µH	68 µH
length	11.33 mm	12 mm	12 mm	12 mm	12 mm	11.33 mm	11.33 mm	11.33 mm
Manufacturer's serial number	ADLF	ADLF	ADLF	ADLF	ADLF	ADLF	ADLF	ADLF
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	6	2	4	4	4	6	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
physical size	L11.33XB6.75XH5.5 (mm)/L0.445XB0.265XH0.216 (inch)	L12XB12XH8.52 (mm)/L0.47XB0.47XH0.335 (inch)	L12XB12XH8.52 (mm)/L0.47XB0.47XH0.335 (inch)	L12XB12XH8.52 (mm)/L0.47XB0.47XH0.335 (inch)	L12XB12XH8.52 (mm)/L0.47XB0.47XH0.335 (inch)	L11.33XB6.75XH5.5 (mm)/L0.445XB0.265XH0.216 (inch)	L11.33XB6.75XH5.5 (mm)/L0.445XB0.265XH0.216 (inch)	L11.33XB6.75XH5.5 (mm)/L0.445XB0.265XH0.216 (inch)
Base Number Matches	1	1	1	1	1	1	1	1
