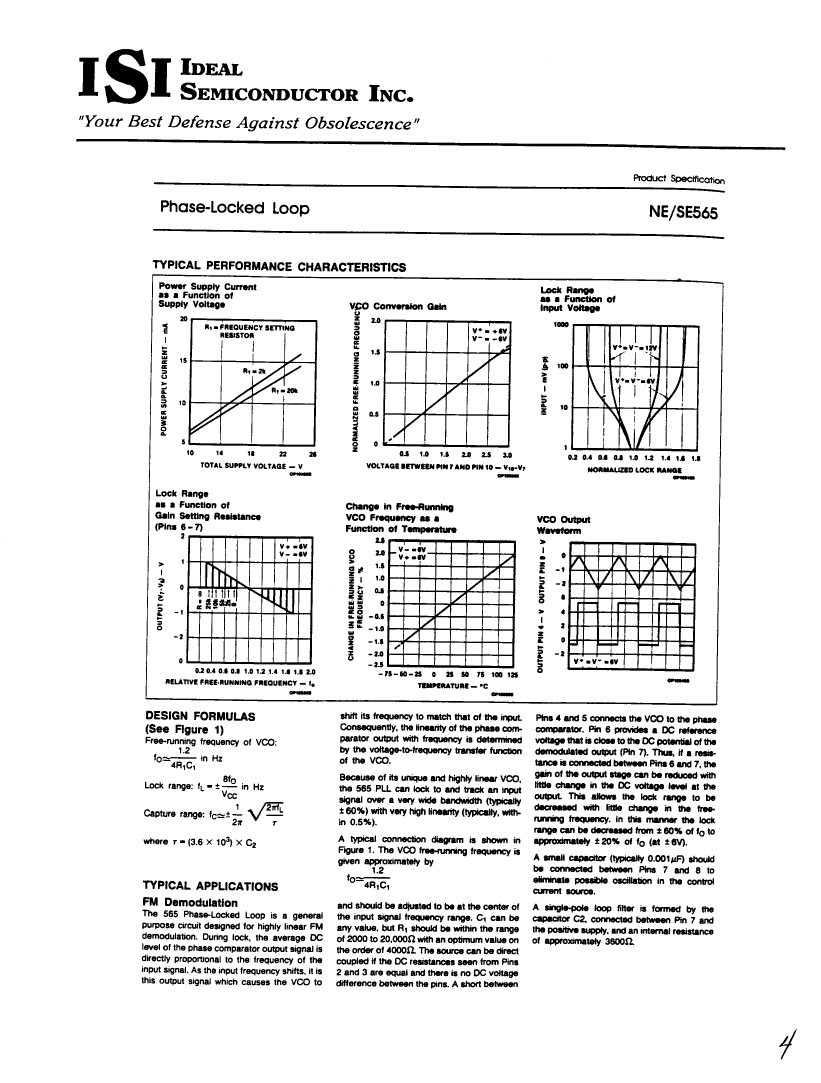

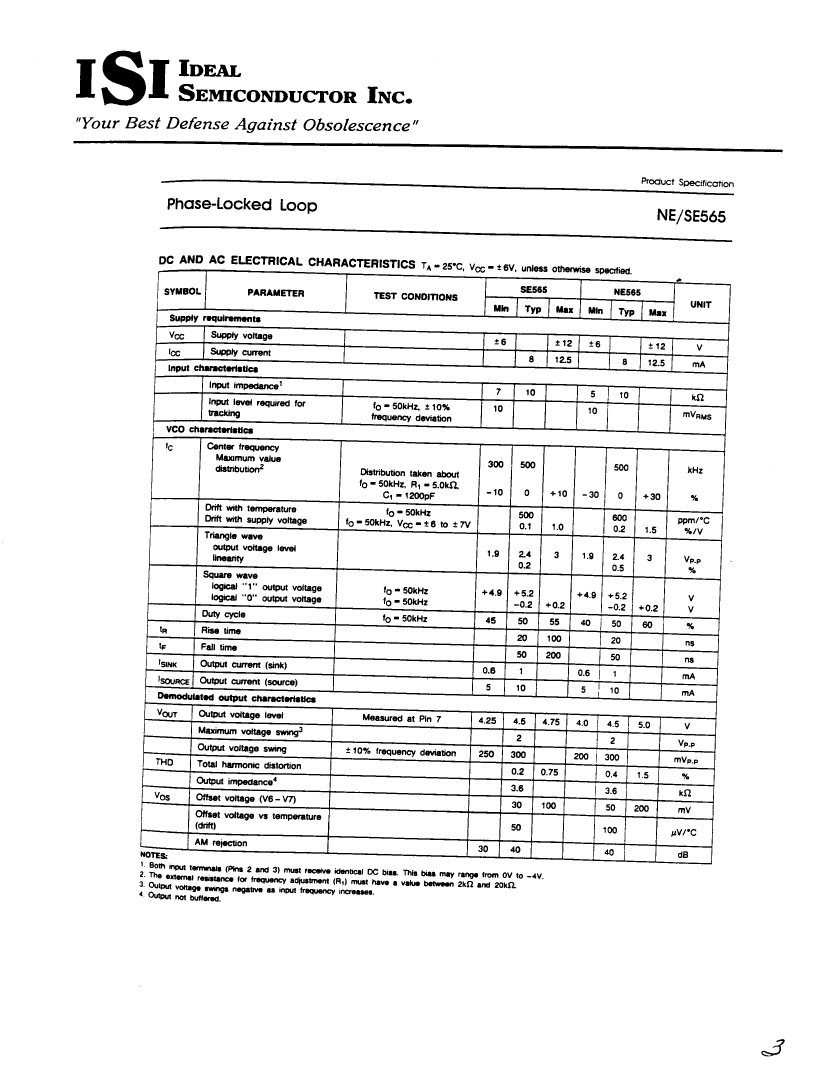

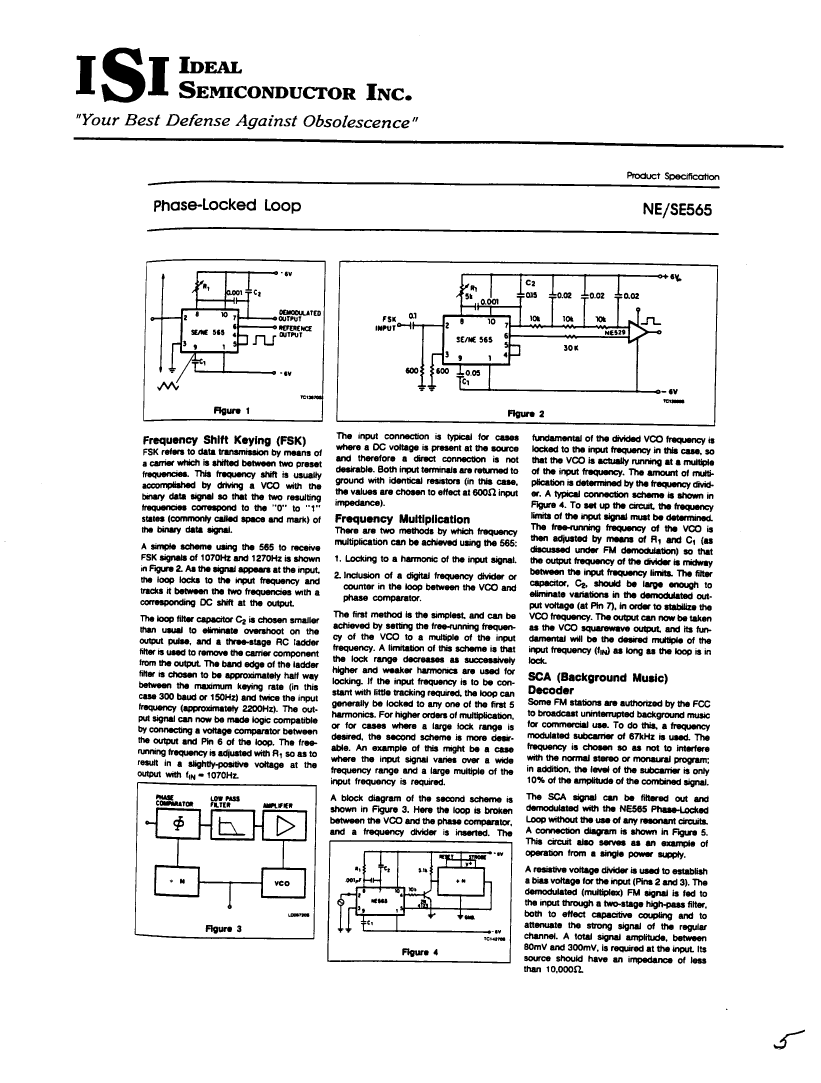

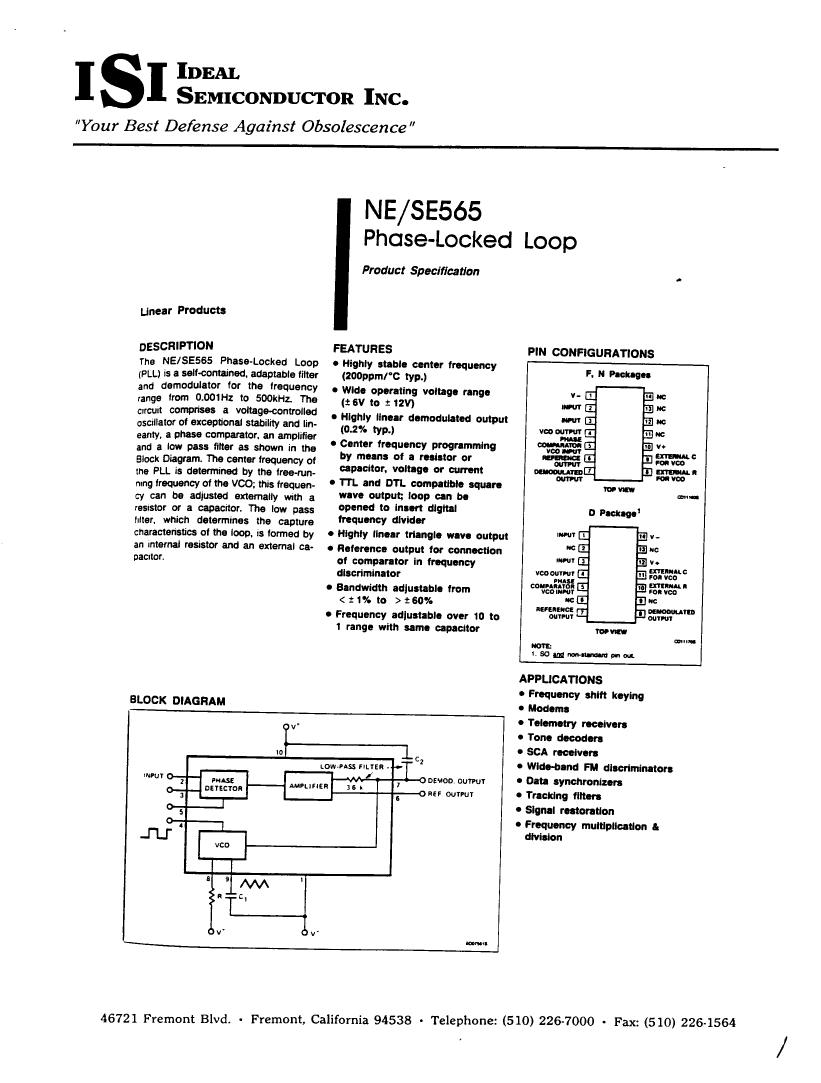

NE565D Overview

PLL/Frequency Synthesis Circuit, BIPolar, PDSO14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SOP, SOP14,.25
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-6 V
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	+-6 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	6 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

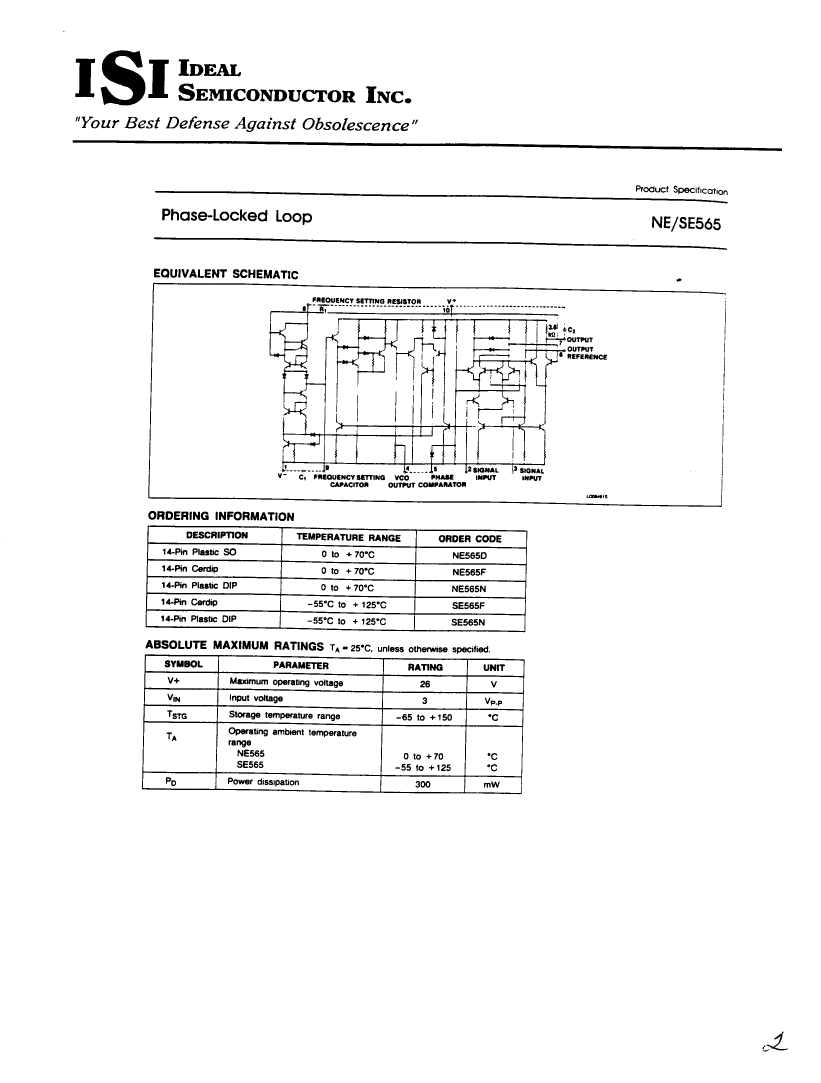

	NE565D	NE565F	NE565N	SE565F
Description	PLL/Frequency Synthesis Circuit, BIPolar, PDSO14	PLL/Frequency Synthesis Circuit, BIPolar, CDIP14	PLL/Frequency Synthesis Circuit, BIPolar, PDIP14	PLL/Frequency Synthesis Circuit, BIPolar, CDIP14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	SOP, SOP14,.25	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G14	R-XDIP-T14	R-PDIP-T14	R-XDIP-T14
JESD-609 code	e0	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-6 V	-6 V	-6 V	-6 V
Number of terminals	14	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C	125 °C
Package body material	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	SOP	DIP	DIP	DIP
Encapsulate equivalent code	SOP14,.25	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
power supply	+-6 V	+-6 V	+-6 V	+-6 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	6 V	6 V	6 V	6 V
surface mount	YES	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maker	-	Ideal Semiconductor Inc	Ideal Semiconductor Inc	Ideal Semiconductor Inc
