TK65934 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> TK65934

TK65934: DescriptionSwitching Regulator, Current-mode, 38.8kHz Switching Freq-Max, PDSO6, SOT-23L, SMT-6; CategoryPower/power management The power supply circuit; File Size304KB，7 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet Parametric Compare View All

TK65934 Overview

Switching Regulator, Current-mode, 38.8kHz Switching Freq-Max, PDSO6, SOT-23L, SMT-6

TK65934 Parametric

Parameter Name	Attribute value
package instruction	LSSOP,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	CURRENT-MODE
Maximum input voltage	6 V
Minimum input voltage	2.7 V
Nominal input voltage	3.6 V
JESD-30 code	R-PDSO-G6
length	3.4 mm
Number of functions	1
Number of terminals	6
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	1.4 mm
surface mount	YES
Switch configuration	BOOST
Maximum switching frequency	38.8 kHz
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
width	2.2 mm
Base Number Matches	1

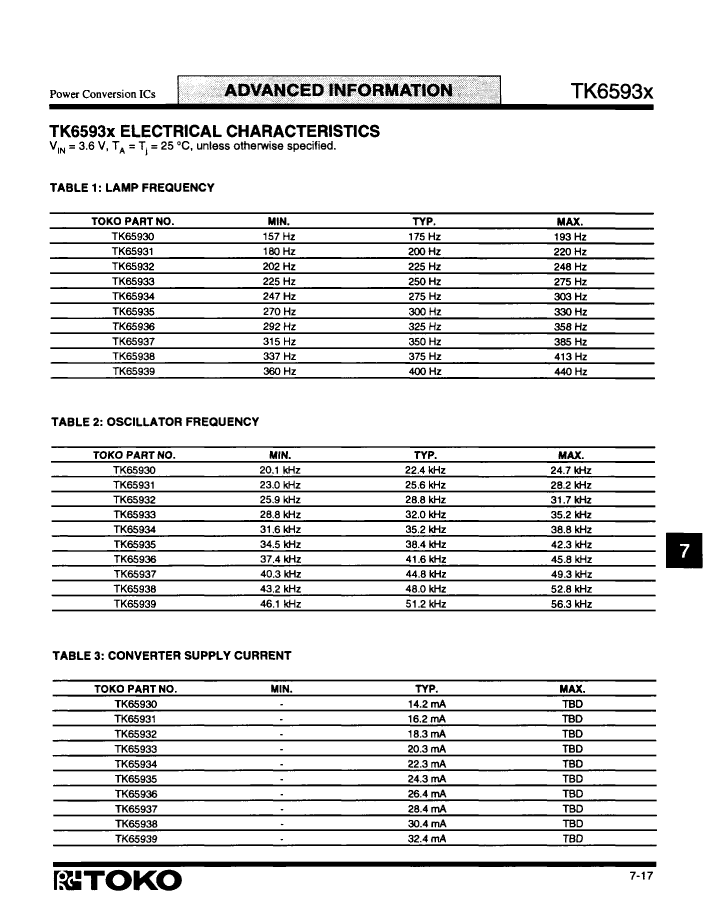

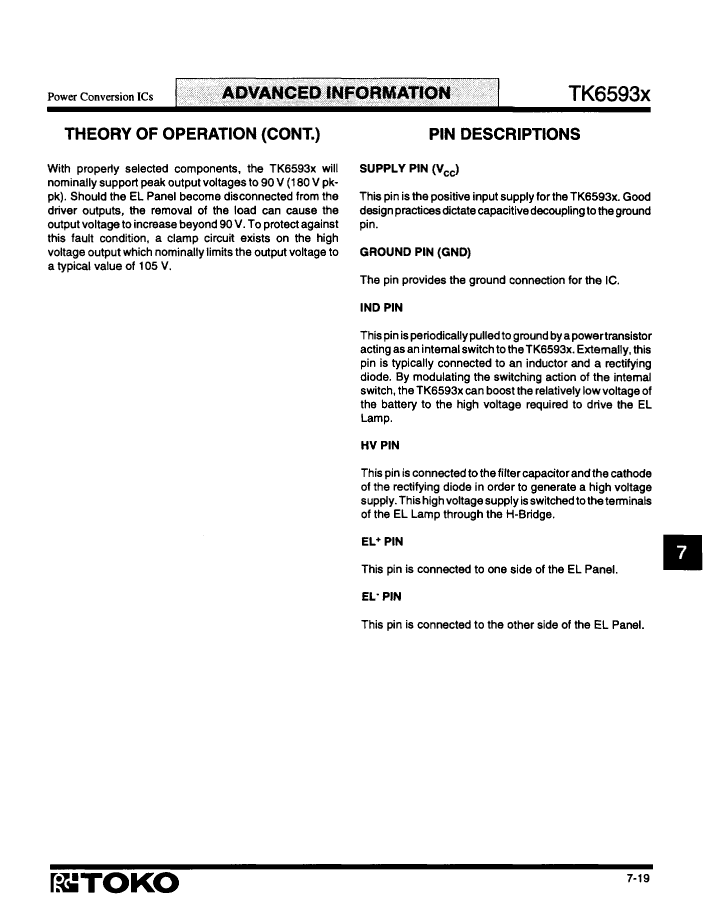

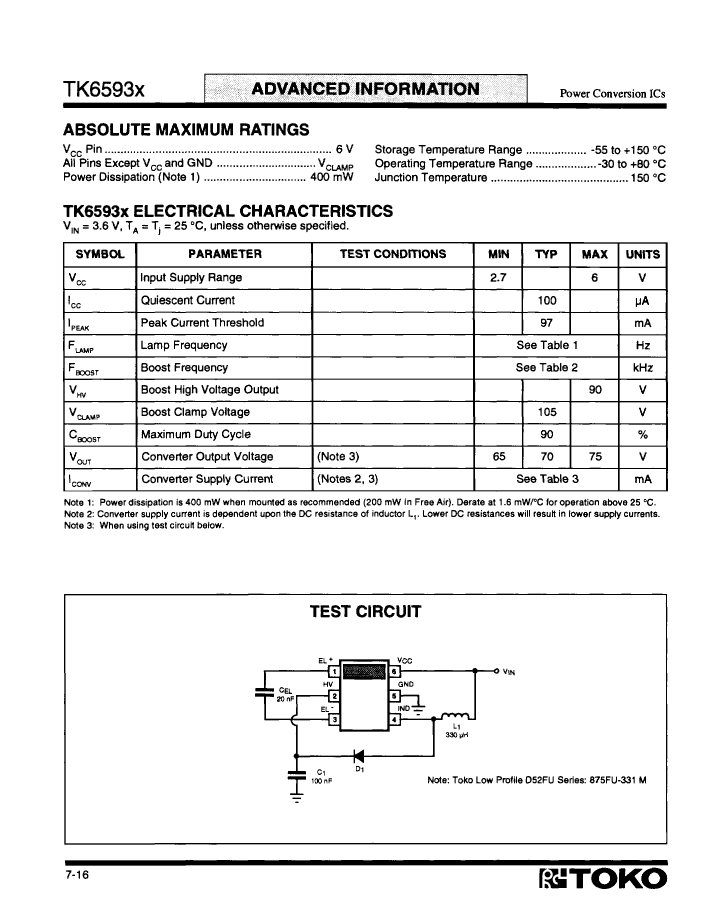

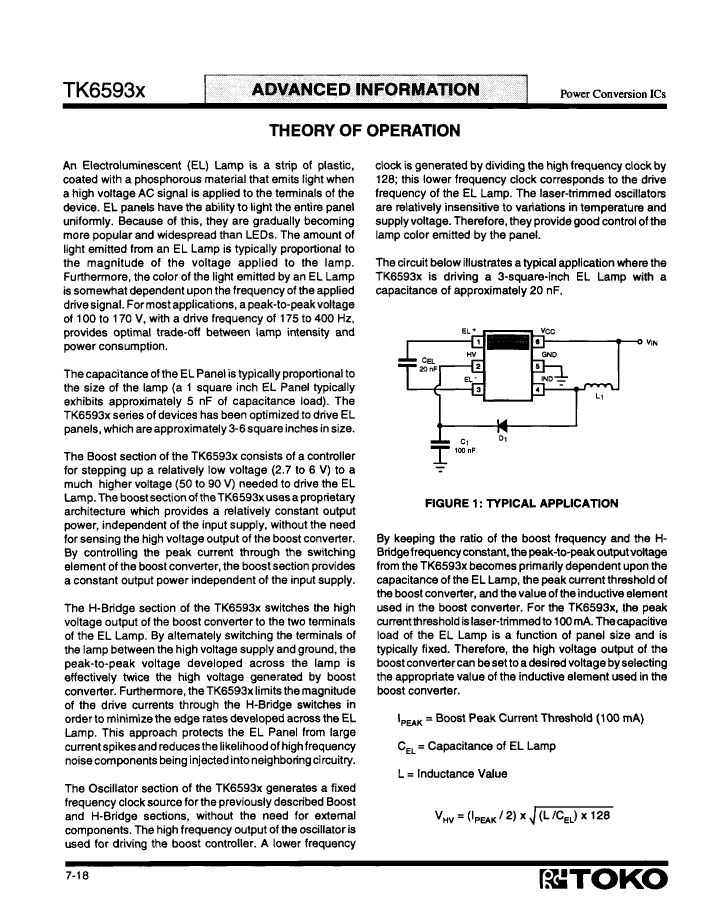

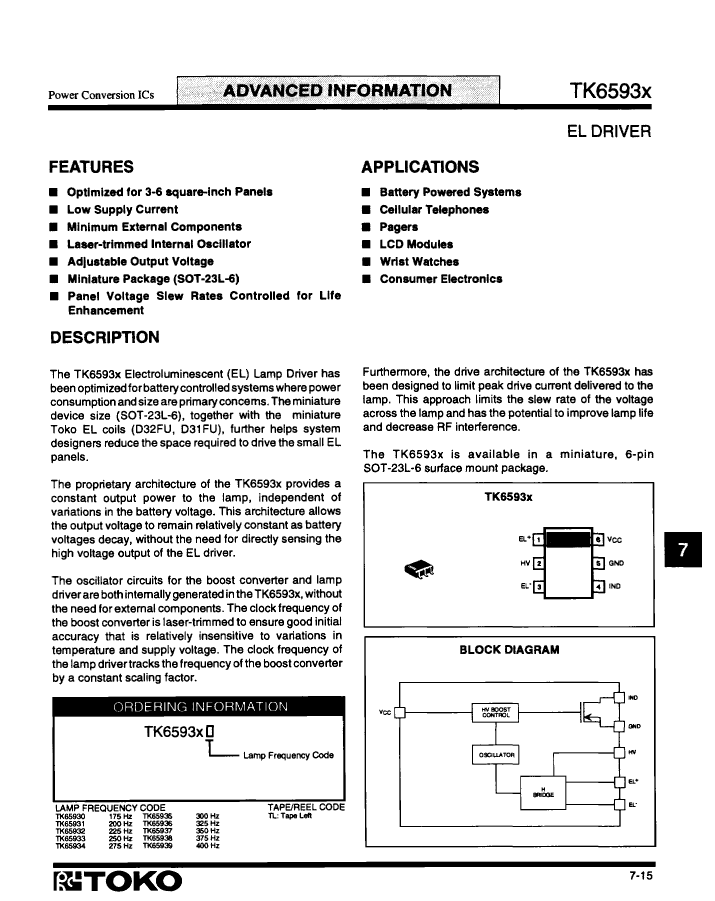

Preview

Download Datasheet

View All

TK65934 Related Products

	TK65934	TK65935	TK65933	TK65936	TK65939	TK65937
Description	Switching Regulator, Current-mode, 38.8kHz Switching Freq-Max, PDSO6, SOT-23L, SMT-6	Switching Regulator, Current-mode, 42.3kHz Switching Freq-Max, PDSO6, SOT-23L, SMT-6	Switching Regulator, Current-mode, 35.2kHz Switching Freq-Max, PDSO6, SOT-23L, SMT-6	Switching Regulator, Current-mode, 45.8kHz Switching Freq-Max, PDSO6, SOT-23L, SMT-6	Switching Regulator, Current-mode, 56.3kHz Switching Freq-Max, PDSO6, SOT-23L, SMT-6	Switching Regulator, Current-mode, 49.3kHz Switching Freq-Max, PDSO6, SOT-23L, SMT-6
package instruction	LSSOP,	LSSOP,	LSSOP,	LSSOP,	LSSOP,	LSSOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR
control mode	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE
Maximum input voltage	6 V	6 V	6 V	6 V	6 V	6 V
Minimum input voltage	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal input voltage	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
JESD-30 code	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6
length	3.4 mm	3.4 mm	3.4 mm	3.4 mm	3.4 mm	3.4 mm
Number of functions	1	1	1	1	1	1
Number of terminals	6	6	6	6	6	6
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	LSSOP	LSSOP	LSSOP	LSSOP	LSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm
surface mount	YES	YES	YES	YES	YES	YES
Switch configuration	BOOST	BOOST	BOOST	BOOST	BOOST	BOOST
Maximum switching frequency	38.8 kHz	42.3 kHz	35.2 kHz	45.8 kHz	56.3 kHz	49.3 kHz
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.95 mm	0.95 mm	0.95 mm	0.95 mm	0.95 mm	0.95 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	2.2 mm	2.2 mm	2.2 mm	2.2 mm	2.2 mm	2.2 mm
Maker	-	TOKO, INC.	TOKO, INC.	TOKO, INC.	TOKO, INC.	TOKO, INC.
