BU1508DX

Description
Silicon Diffused Power Transistor
Categorysemiconductor    Discrete semiconductor
File Size203KB,3 Pages
ManufacturerSAVANTIC
Websitehttp://www.svntc.com/
Download Datasheet View All

BU1508DX Overview

Silicon Diffused Power Transistor

SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
BU1508DX
DESCRIPTION
·With TO-220F package
·High voltage
·High speed switching
·Built-in damper diode.
APPLICATIONS
·For use in horizontal deflection circuits of
colour TV receivers.
PINNING
PIN
1
2
3
Base
Collector
Emitter

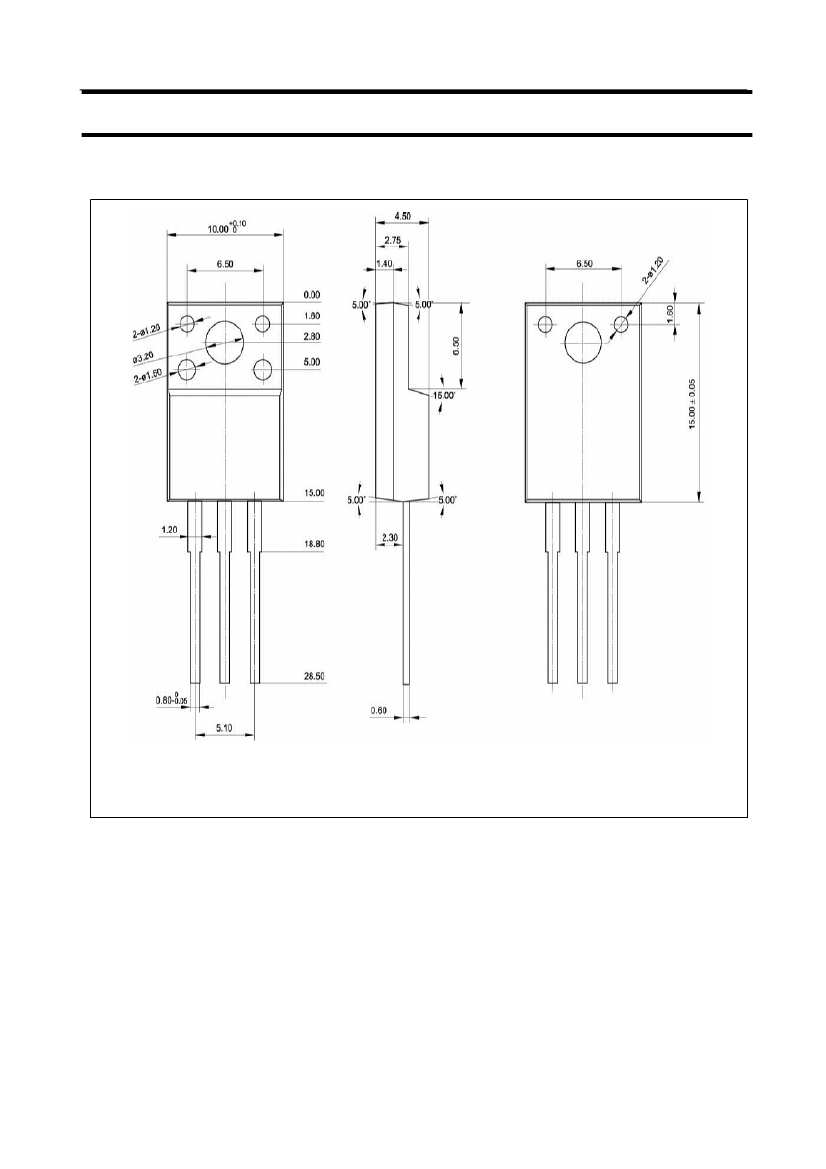

Fig.1 simplified outline (TO-220F) and symbol
DESCRIPTION
Absolute maximum ratings (Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
I
BM
P
T
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector current (peak)
Base current
Base current (peak)
Total power dissipation
Junction temperature
Storage temperature
T
C
=25
CONDITIONS
Open emitter
Open base
Open collector
VALUE
1500
700
7.5
8
15
4
6
35
150
-65~150
UNIT
V
V
V
A
A
A
A
W
