SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
BU2508AX
DESCRIPTION
·With TO-3PML package
·High voltage
·High speed switching
APPLICATIONS
·For use in horizontal deflection
circuits of colour TV receivers
PINNING
PIN
1
2
3
Base
Collector
Emitter
Fig.1 simplified outline (TO-3PML) and symbol
DESCRIPTION
Absolute maximum ratings(Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CP
I
B
I
BM
P
tot
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current (DC)
Collector current (Pulse)
Base current (DC)
Base current (Pulse)
Total power dissipation
Junction temperature
Storage temperature
T
C
=25
Open emitter
Open base
Open collector
CONDITIONS
VALUE
1500
700
7.5
8
15
4
6
45
150
-65~150
UNIT
V
V
V
A
A
A
A
W
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter sustaining voltage
Emitter-base breakdown voltage
Collector-emitter saturation voltage
Base-emitter saturation voltage
Collector cut-off current
Emitter cut-off current
DC current gain
DC current gain
Collector capacitance
CONDITIONS
I
C
=100mA ;I
B
=0,L=25mH
I
E
=1mA ;I
C
=0
I
C
=4.5A ;I
B
=1.12 A
I
C
=4.5A ;I
B
=1.7 A
V
CE
=BV
CES;
V
BE
=0
T
C
=125
V
EB
=7.5V; I
C
=0
I
C
=0.1A ; V
CE
=5V
I
C
=4.5A ; V
CE
=1V
V
CB
=10V;I
E
=0;f=1.0MHz
4
MIN
700
7.5
BU2508AX
SYMBOL
V
CEO(SUS)
V
(BR)EBO
V
CEsat
V
BEsat
I
CES
I
EBO
h
FE-1
h
FE-2
C
C
TYP.
MAX
UNIT
V
13.5
1.0
1.1
1.0
2.0
1.0
13
5.5
80
7.0
V
V
V
mA
mA
pF
2
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
PACKAGE OUTLINE
BU2508AX

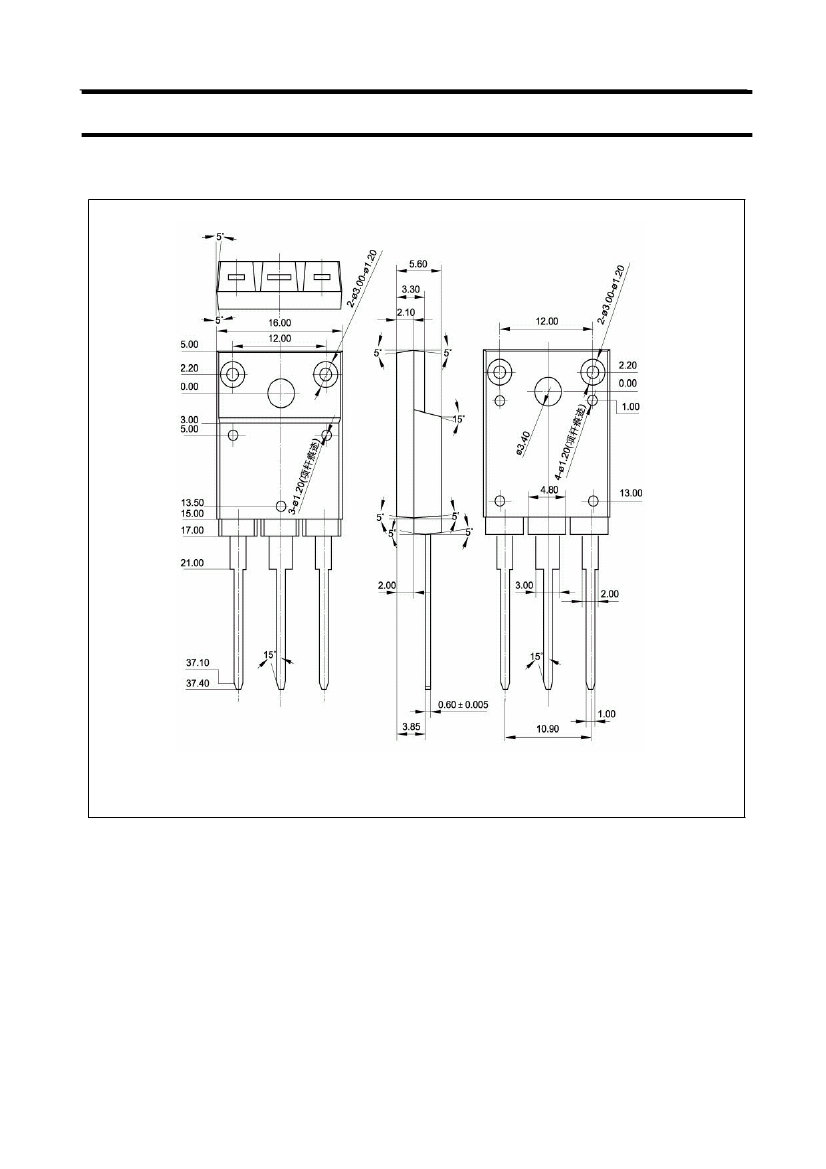

Fig.2 Outline dimensions
3
