BU2508DX

Description
Silicon Diffused Power Transistor
Categorysemiconductor    Discrete semiconductor
File Size145KB,3 Pages
ManufacturerSAVANTIC
Websitehttp://www.svntc.com/
Download Datasheet View All

BU2508DX Overview

Silicon Diffused Power Transistor

SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
BU2508DX
DESCRIPTION
·With TO-3PML package
·High voltage;high speed
·Built-in damper diode
APPLICATIONS
·For use in horizontal deflection
circuits of color TV receivers
PINNING
PIN
1
2
3
Base
Collector
Emitter

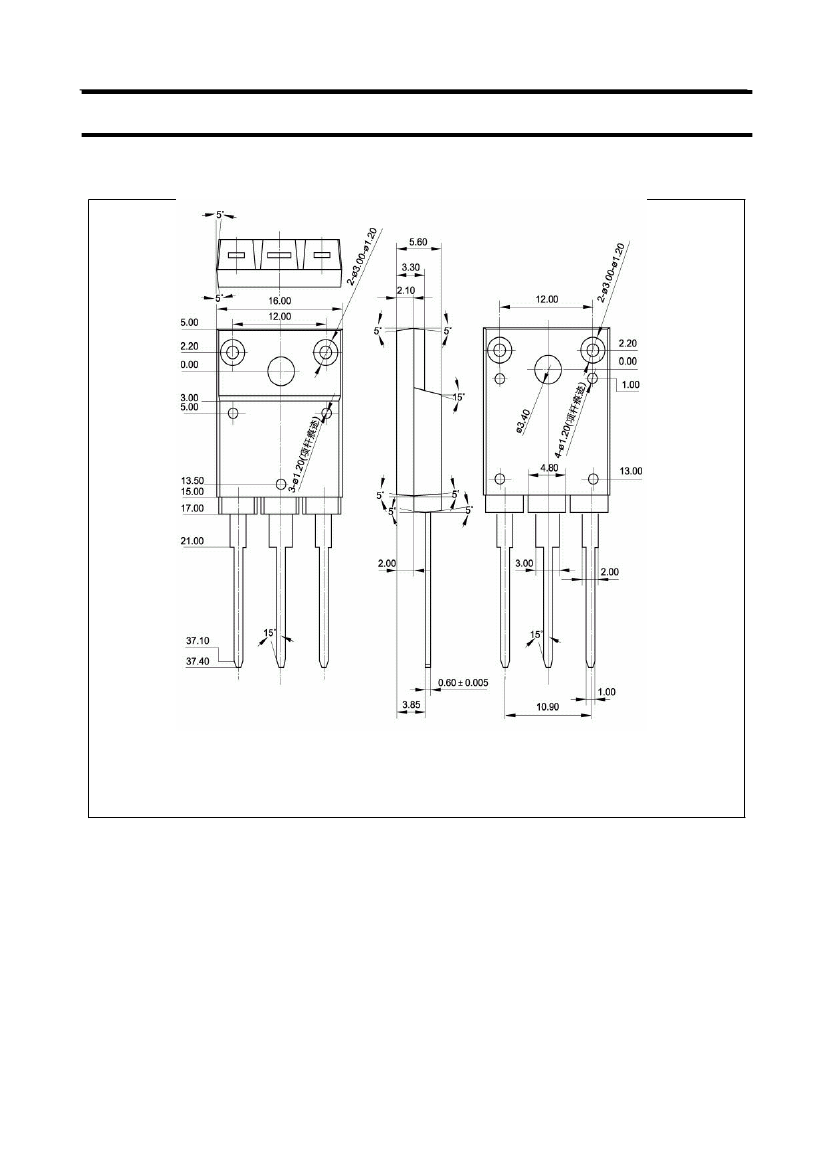

Fig.1 simplified outline (TO-3PML) and symbol
DESCRIPTION
Absolute maximum ratings(Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
I
BM
P
tot
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current (DC)
Collector current (Pulse)
Base current (DC)
Base current (Pulse)
Total power dissipation
Junction temperature
Storage temperature
T
C
=25
Open emitter
Open base
Open collector
CONDITIONS
VALUE
1500
700
7.5
8
15
4
6
45
150
-55~150
UNIT
V
V
V
A
A
A
A
W
