BUH517D

Description
Silicon NPN Power Transistors
File Size145KB,3 Pages
ManufacturerSAVANTIC
Websitehttp://www.svntc.com/
Download Datasheet View All

BUH517D Overview

Silicon NPN Power Transistors

SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
BUH517D
DESCRIPTION
·With TO-3PML package
·High voltage,high speed
·Low collector saturation voltage
APPLICATIONS
·Horizontal deflection stage in standard and high
reslolution displays for TV’s and monitors.
·Switching power supplies for TV’s and monitors.
PINNING
PIN
1
2
3
Base
Collector
Emitter

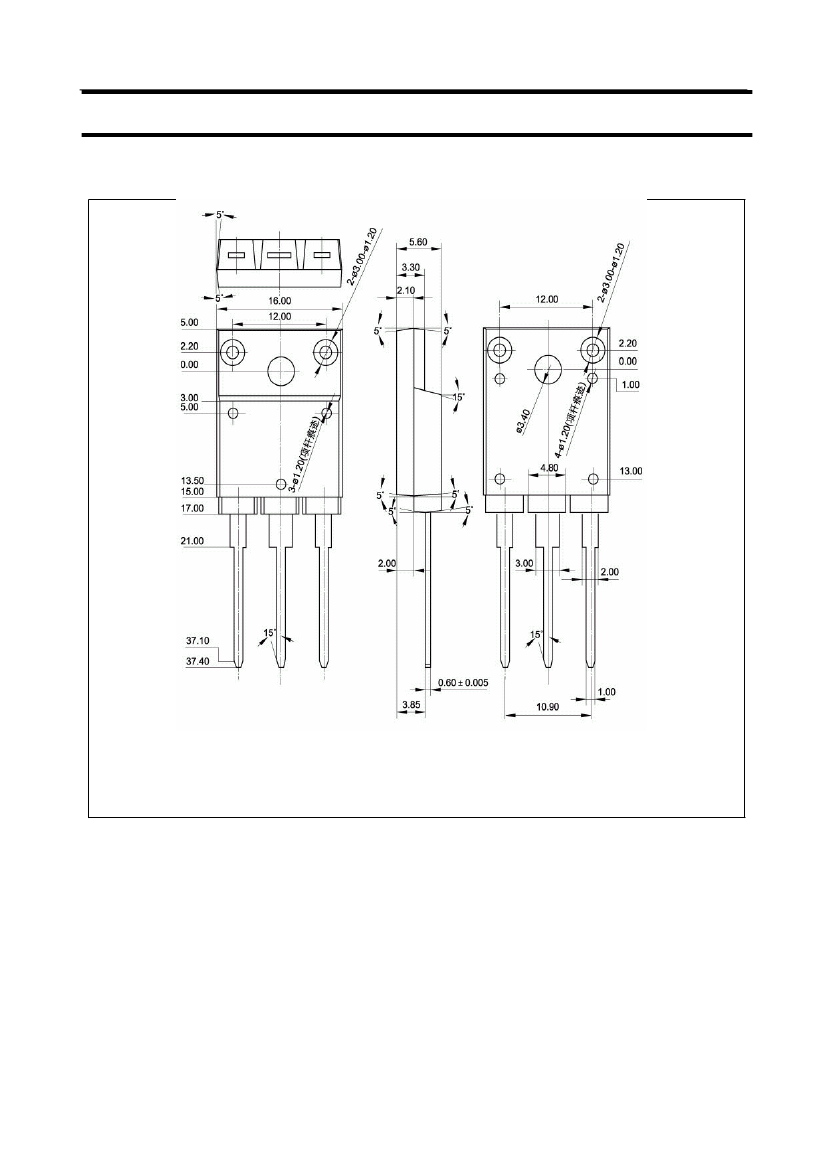

Fig.1 simplified outline (TO-3PML) and symbol
DESCRIPTION
Absolute maximum ratings(Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
I
BM
P
tot
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current (DC)
Collector current (Pulse)
Base current (DC)
Base current (Pulse)
Total power dissipation
Operating junction temperature
Storage temperature
t
p
<5ms
T
C
=25
t
p
<5ms
Open emitter
Open base
Open collector
CONDITIONS
VALUE
1700
700
10
8
15
5
8
60
150
-65~150
UNIT
V
V
V
A
A
A
A
W
