7200 SERIES
HIGH CURRENT
RELAY UNIT
HRU

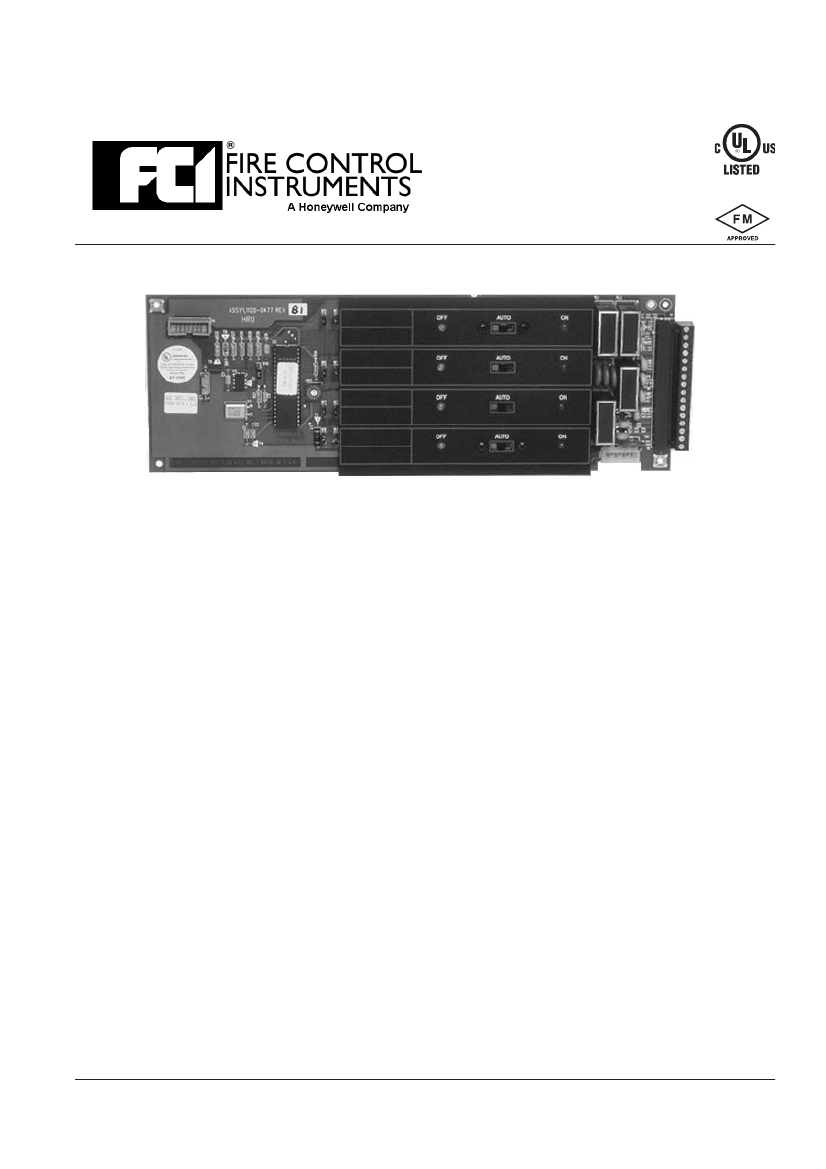

DESCRIPTION
The High Current Relay Unit (HRU) contains four, independent Form “C” relay circuits capable of being activated upon
either alarm or system trouble via system software or from a hard-wired 24 VDC input from the system power supply.
The HRU contacts are rated at 5 amperes.
Pluggable terminal blocks are provided with each unit for the connection of all field wiring. These blocks will accommodate
wire sizes up to 12 AWG.
The HRU is a full-size unit and may be mounted in any available position.
Each relay circuit provides a green LED to indicate relay energization and a yellow LED to indicate whenever the relay
is disconnected via the user switch.
Along with the relay circuit LEDs, each circuit is supervised for relay coil operation. Each relay circuit incorporates
a three-position (“OFF-AUTO-ON”) user switch for manual control and programming of each relay circuit.
TECHNICAL INFORMATION
Supervisory current
Alarm current
Relay outputs
Current ratings
LEDs
Switches
.004 amp.
.034 amp. per relay
Four (4) Form "C" (SPDT)
Each contact rated 5 amperes @ 24 VDC/120 VAC (resistive)
or 1/6 hp @ 120 VAC
Green “ON” LED per relay
Yellow “OFF” LED per relay
One (1) three position switch per relay “OFF/AUTO/ON”
ORDERING INFORMATION
Part No.
1120-0477
Model
HRU
Description
High Current Relay Unit
