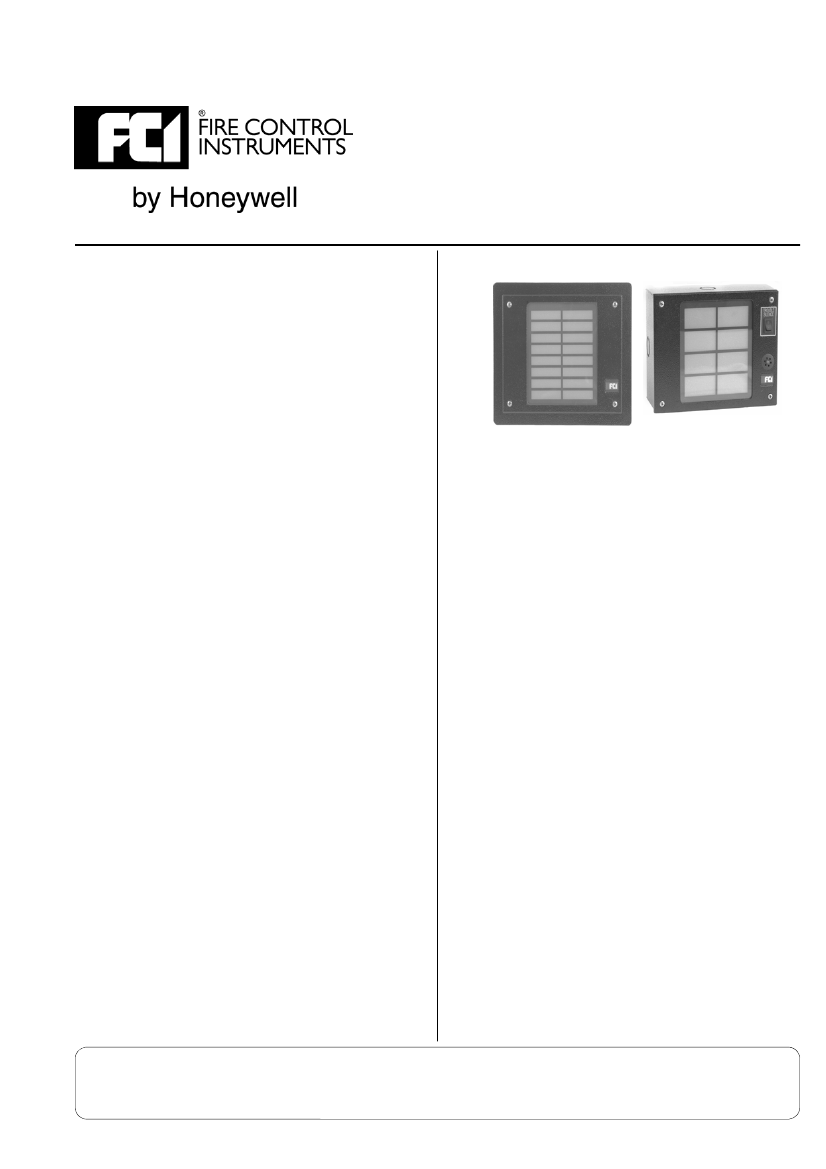

M08, M16

Series

Mini-Annunciators, Back-Lit

Description

The M08, M16 Series Mini-Annunciators provide

remote annunciation in a compact, versatile, and

distinctive design.

The Mini-Annunciators are manufactured in eight or

sixteen zone versions, and are back-lit with either

high intensity led or incandescent lamp indicators.

These units are UL Listed for either interior or op-

tional weatherproof applications. The incandescent

lamp units are available with dual lamp configuration

as an option for unsupervised operation. The annun-

ciator is supplied with a surface back box, while a

flush trim ring is also supplied for flush mounted ver-

sions. The cabinet is 16- gauge steel with a black

textured epoxy finish. Red finish is available as an

option.

A lettering kit is furnished to allow application of cus-

tom zone designations to the 1/8-inch Lexan name-

plate. Optional factory lettering is also available.

Other optional accessories include a Remote Trou-

ble Indicator with Reset Keyswitch and a Lamp Test

Switch.

M16

Features

•

Supervised indicators for use with FCI control

panels.

8 or 16-zone capacity.

Backlit operation.

Dual lamp incandescent operation

Remote trouble indicator (optional)

Remote reset keyswitch (optional)

Lamp test switch (optional)

Weatherproof mounting (optional)

Ordering Information

Part Number Description

138-92311

138-92511

138-94311

138-92411

138-92611

138-94411

138-42311

138-42511

138-44311

138-42411

138-44411

M08-8-zone LED annunciator

M08R 8-zone LED w/RT1, lamp test &

reset switch

M08W 8-zone LED, weatherproof

M08-Inc 8-zone incandescent lamp

M08R/Inc 8-zone incandescent lamp

with RT1, lamp test & reset switch

M08-W/Inc 8-zone incandescent lamp,

weatherproof

M16 16-zone LED annunciator

M16-R 16-zone LED w/RT1, lamp test

& reset switch

M16-W 16-zone LED, weatherproof

M16-Inc 16-zone incandescent lamp,

w/RTI, lamp test & reset switch

M16-W/Inc 16-zone incandescent

lamp, weatherproof

Specifications

Operating Voltage:

(Lamp style)

Alarm Current:

Incandescent Lamp

LED

Legend size:

Eight zone

Sixteen zone

Dimensions:

Surface mount

Flush mount

Weatherproof

24 VDC

(common positive)

.080 amp./zone

.012 amp./zone

2 lines of 10 characters per

zone (18 point letters)

2 liens of 12 characters per

zone (14 point letters)

8.5” W x 6.4” H, x 3.4” D

(21.6 W x 16.3 H x 8.6 D cm)

10.4” W x 8.25” H x 3.1” D

(26.3 W x 21 H x 8 D cm)

.9” H x 3.25” D

(2.2 H x 8.3 D cm)

GAMEWELL-FCI

12 Clintonville Road, Northford, CT 06472 - Tel: (203) 484-7161 - Fax: (203) 484-7118

Specifications are for information only, are not intended for installation purposes, and are subject to change without notice. No responsibility is assumed by Gamewell-FCI for their use.

www.gamewell-fci.com

9020-0326 Rev. F page 1 of 1
