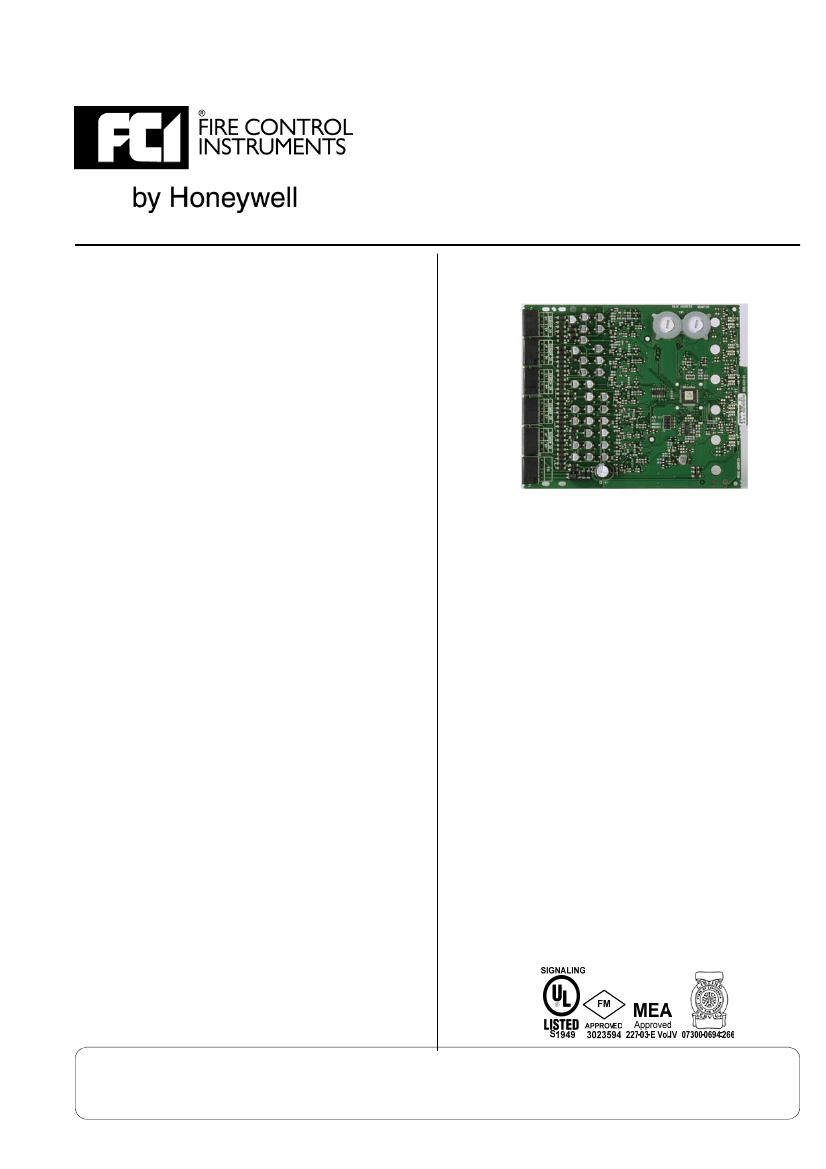

Velociti Series
MMI-10F
Description
The FCI Velociti™ Series, multi-mod ten input
monitor module (MMI-10F) provides ten (10), Style
B (Class B) or five (5), Style D (Class A)
supervised initiating device circuits (IDCs) suitable
for a wide range of monitoring applications.
The Velociti
TM
Series use a communication
protocol that substantially increases the speed of
communication between the sensors and certain
FCI analog addressable fire alarm controls. These
devices operate in a grouped fashion. If one of the
devices in the group has a status change, the
panel’s microprocessor stops the group poll and
concentrates on the single device. The net effect is
response speed up to five times greater than
earlier designs.
Each supervised circuit may be connected to any
normally open contact device such as manual
stations, tamper and supervisory switches,
waterflow switches, heat detectors, 4-wire smoke
sensors, etc.
The MMI-10F connects to the signaling line circuits
(SLC) of the FCI analog addressable series fire
alarm control panels. Each of the MMI-10F circuits
occupies its own address on the system’s SLC
allowing each to be fully programmable in its
control-by-event sequence of operation.
The address of the first circuit is set with a pair of
rotary dials. Each remaining circuit is automatically
assigned to its own subsequent address. The
MMI-10F module includes an address disable
jumper matrix that allows a maximum of two
unused addresses to be turned off to free these
addresses for other purposes. An additional jumper
setting selects either Style B or Style D circuit
configurations.
Each circuit has its own status LED that flashes to
indicate proper polling and lights steadily when the
output has been activated.
Velociti
™
and E3 Series
™
are trademarks of Fire Control Instruments.
™
Multi-Mod Ten
Input Monitor Module
MMI-10F
Features
•
Each MMI-10F monitor module provides ten (10),
Style B (Class B) or five (5), Style D (Class A)
individually addressable, individually programmable
initiating device circuits.
•
Ideal for applications requiring monitoring of normally
open contact devices.
•
Removable wiring terminal blocks allow ease of
installation and servicing.
•
Terminal blocks can accommodate 12 to 18 AWG
wire.
•
Flexible jumper configuration feature allowing one or
two monitoring circuit addresses to be disabled.
•
Individual LED indicators.*
•
Ideal for retrofit applications.
•
As many as sixty (60), initiating device circuits in one
(1), 12” x 24” x 6.5” cabinet.
•
Two (2), mounting cabinets available for two (2),
(MBB-2 cabinet) to six (6), (MBB-6 cabinet)
MMO-6RS.
•
Bicolor LEDs flash green whenever the sensor is
addressed, and light steady red on alarm.*
Note: *Only the red LED is operative in panels that do not
operate in Velociti™ mode.
An ISO 9001-2000 Company
GAMEWELL-FCI
12 Clintonville Road, Northford, CT 06472 - Tel: (203) 484-7161 - Fax: (203) 484-7118
Specifications are for information only, are not intended for installation purposes, and are subject to change without notice. No responsibility is assumed by Gamewell-FCI for their use.
www.gamewell.fci.com
9020-0631 Rev. B page 1 of 2
©2006 Gamewell-FCI. All rights reserved.
Description (continued)
Two Multi-Mod units can be mounted in one MBB-2
cabinet. Additional mounting options include the
MCH-6 chassis that can accommodate six (6),
Multi-Mod modules. The MCH-6 chassis can be
installed in a custom cabinet or can be mounted in
the MBB-6 cabinet allowing up to six (6), Multi-Mod
modules in one cabinet.
The MMI-10F is ideal for applications where
centralized location of circuits is required. As many
as sixty (60), initiating device circuits may be
located in a cabinet that is only 12.6” H x 24” W x
6.5” D in dimension saving valuable wall space in
mechanical rooms and electrical closets and
reducing cost of installation.
Specifications
Operating
Voltage:
Stand-by Current:
Alarm Current:
Maximum IDC
Wire Resistance:
Maximum IDC
Voltage:
Maximum IDC
Current:
Temperature
Range:
Humidity
Dimensions:
MBB-2
MBB-6
15-32 VDC
3.5 mA
60 mA (with all ten LEDs lit)
40 Ohms
12 VDC
1 mA
32˚ F to 120˚ F (0˚ to 49˚ C)
10 to 85% (non-condensing)
6.8” H x 5.8” W x 1.25” D
(17.3 x 14.7 x 3.2 cm)
12.25” H x 9.25” W x 3.32” D
(31.2 x 23.5 x 8.4 cm)
12.63” H x 24” W x 6.5” D
(32.1 x 60.1 x 16.5 cm)
Ordering Information
Model
MMI-10F
MBB-2
MBB-6
MCH-6
Description
Multi-mod 10 input module
Backbox, 2 unit
Backbox, 6 unit, requires MCH-6
6-unit mounting chassis
GAMEWELL-FCI
12 Clintonville Road, Northford, CT 06472 - Tel: (203) 484-7161 - Fax: (203) 484-7118
www.gamewell.fci.com
9020-0631 Rev. B page 2 of 2
