Series 60
Description

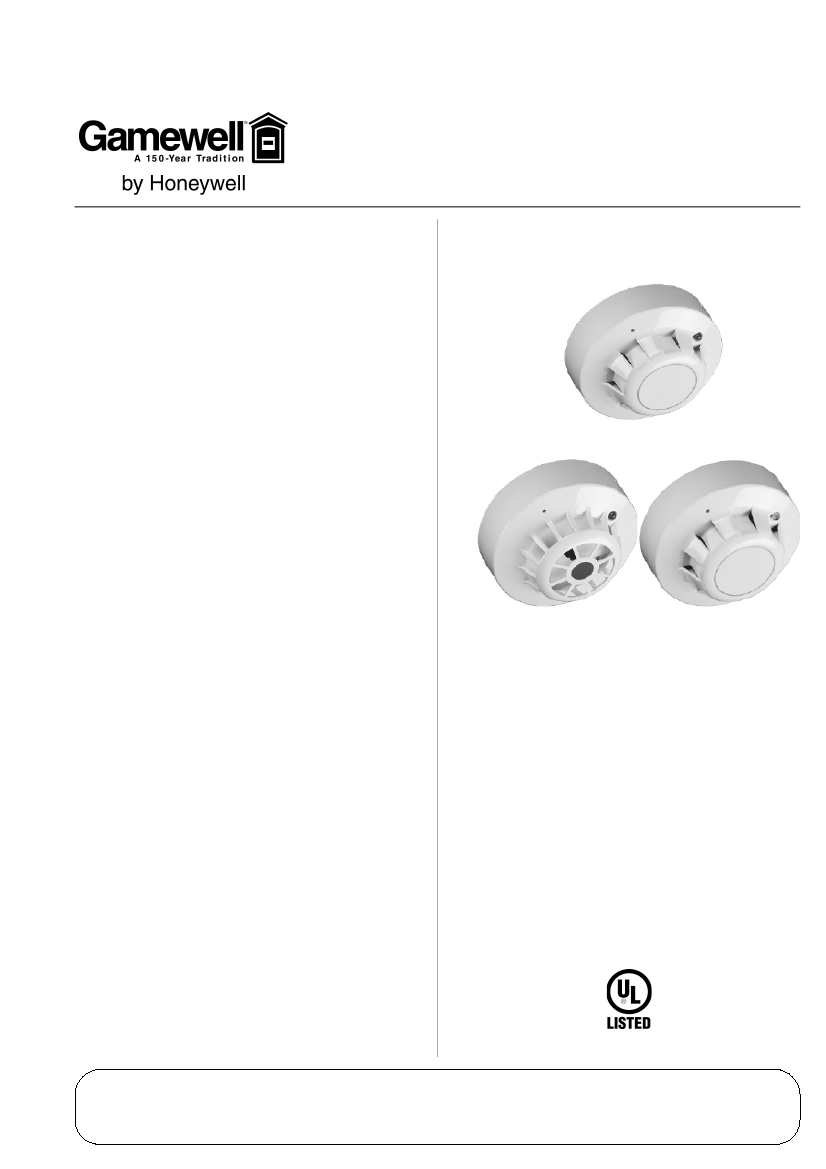

The Gamewell Series 60 Conventional Smoke Detectors
are comprised of ionization, photoelectric, combination
photo/heat, and rate-of-rise/fixed-temperature thermal
detectors (135°F, 160°F, 210°F [57.2°C, 71.1°C, 98.8°C]).
These detectors are carefully designed and rigorously
tested to ensure that they meet all standards, codes and
the demands of today’s environments.
The detectors are designed for two-wire operation. All the
detectors in the Series 60 product line have the same
external dimensions. The housing of the ionization and
photoelectric detectors is identical. The external alarm indi-
cator is a light-emitting (red) diode (LED) which is clearly
visible. The ion detector is distinguished from the photo-
electric detector by the color of the alarm indicating LED.
The ion's LED is red while the photoelectric’s LED is clear
during normal operation. Thermal detectors are readily dis-
tinguished from smoke detectors by open webs that allow
the free movement of air around the exposed thermistor.
IONIZATION
Conventional Two-Wire
Smoke Detectors
Operation
The Gamewell 71034 ionization smoke detector operates
on the ionization principle using twin compensating cham-
bers with one single-sided ionizing radiation source. The
ionization chamber system is a reference chamber con-
tained inside an outer smoke chamber. The outer smoke
chamber has smoke inlets, which are fitted with an insect
resistant mesh. At the junction between the reference and
smoke chambers is the sensing electrode which converts
variations in the chamber currents to a voltage. This volt-
age produces a signal which latches the detector into
alarm when a preset threshold level is reached.
The Gamewell 71033 photoelectric smoke detector oper-
ates on the forward light-scattering principle. It uses a hori-
zontal optical bench which houses an infrared emitter and
sensor arranged radially to detect forward scattered light.
The sensing chamber is a black molding configured as a
labyrinth, which prevents ambient light from penetrating the
chamber. The labyrinth has a fine gauze cover to prevent
insects from migrating into the chamber. The detector will
change to the alarm state when reflected light is of suffi-
cient amplitude to turn on the SCR that sends the alarm
signal.
THERMAL
PHOTOELECTRIC
Features
•
Full range of detectors including:
- Ionization.
- Photoelectric.
- Combination photo/heat.
- Rate-of-rise/fixed temperature.
•
Full range of bases, including:
-
Standard 4.0” (10.16 cm), 6.0” (15.24 cm), or
6.0” (15.24 cm) low-profile.
- 6.0” (15.24 cm) base with flashing red or green LED.
- 6.0” (15.24 cm) base with sounder.
- 6.0: (15.24 cm) base with relay and flashing green LED.
An ISO 9001-2000 Company
SIGNALING
S1195
GAMEWELL-FCI
12 Clintonville Road, Northford, CT 06472 - Tel: (203) 484-7161 - Fax: (203) 484-7118
©2006 Gamewell-FCI. All rights reserved.
Specifications are for information only, are not intended for installation purposes, and subject to change without notice. No responsibility is assumed by GamewelI-FCI for their use.
www.gamewell-fci.com
CS-2484 Rev. B page 1 of 3
Operation (Continued)
The Gamwell Series 60 thermal detector operates as
a combination rate or rise/ fixed temperature detector
(71035 @ 135°F [57.2°C], 71035-160 @ 160°F
[71.1°C], 71035-210 @ 210°F [98.8°C]). It contains a
pair of matched temperature coefficient thermistors
within a white polycarbonate housing. One thermistor
is exposed, is in good thermal contact with the sur-
rounding air, and responds quickly to changes in air
temperature. The other thermistor is insulated from
the surrounding air and responds more slowly. The
detector responds as a rate-of-rise detector when a
temperature difference develops rapidly, causing the
ratio of the resistances of the thermistors to exceed
the factory preset level. The detector responds as a
fixed temperature detector when the sum of the
resistances of the insulated thermistor and fixed
resistor compared to the resistance of the exposed
thermistor reaches a preset level.
The Gamewell 71041 combination photo/heat detec-
tor incorporates the principles of the 71033 photo-
electric smoke detector with the fixed temperature
characteristics found in the 71035 thermal detector.
The Series 60 conventional detector bases will
accept any Series 60 detector heads. The bases
have a wide interior diameter for ease of access to
wire and terminals. The design of the base is such
that the detector will fit in one way only and that a
simple clockwise motion is required to plug in a
detector.
The 71036 base (4.0" [10.16 cm) will mount directly
to a 3.5" (8.89 cm) octagonal box (Raco 110 or
equal) or a 4.0" (10.16 cm) octagonal box (Raco 125
or equal) with a round cover/plaster ring (Raco 727
or equal). The other Series 60 bases (6.0" [15.24cm])
will mount directly to a 3.5" (8.89 cm) octagonal box
(Raco 110 or equal); to a 4.0" (10.16 cm) octagonal
box (Raco 125 or equal); or to a 4.0" (10.16 cm)
square backbox (Raco 190 or equal).
TYPE/MODEL NUMBER:
•
Ionization
•
Photoelectric
(Dual chamber) smoke detectors
Gamewell 71034.
Smoke detectors Gamewell 71033
Photoelectric smoke detectors
Gamewell 71033 using a horizontal
optical bench housing the infrared
emitter and sensor arranged radially
to detect forward scattering light.
•
Combination
photoelectric/
heat
Detector Gamewell 71443 using a
horizontal optical bench along with
fixed temperature (135°F [57.2°C])
capabilities.
•
Fixed
temperature/
rate-of-rise
Electronic thermal detector
Gamewell 71035 (135°F [57.2°C])
or 71035-160 (160°F [71.1°C]) or
71035-210 (210°F[98.8°C]).
The contractor shall furnish and install where indi-
cated on plans, bases which are compatible with all
available Series 60 detectors.
Standard 4.0" (10.16 cm), 6.0"(15.24 cm), and
6.0"(15.24 cm) low-profile bases (Gamewell 71036,
71086, and 71086-LOW, respectively) shall use stan-
dard screw/crimp style terminals and shall provide
terminals for remote LEDs.
Where indicated on the plans, the contractor shall
furnish bases with a power-indicating flashing LED in
the base (Gamewell 71086-RED or 71086-GREEN)
which shall use standard screw/crimp style terminals
and shall provide terminals for remote LEDs. When
required, the contractor shall furnish Gamewell
71393 bases with a power indicating flashing green
LED in the base plus a relay with two sets of voltage-
free change over contacts (Form-C), may be used as
a two-or four-wire base, shall use standard screw/
crimp style terminals and shall provide terminals for
remote LEDs.
Where indicated on the plans, the contractor shall
furnish bases Gamewell 71086-SNDR with a sepa-
rately powered (24 volt) internal sounder rated at
85 dB @ 10 feet
(3.048 m).
The bases shall use stan-
dard screw/crimp style terminals and shall provide
terminals for remote LEDs.
Engineering Specifications
General Specification:
The contractor shall furnish and install where indi-
cated on the plans, (insert TYPE/MODEL NUMBER
below). The combination detector head and twist lock
base shall be UL Listed as compatible with the alarm
panel. The base shall permit interchange with
Gamewell’s other Series 60 detectors to facilitate
modifications to the installation. The detector shall
contain an integral LED that latches when the unit
goes into alarm. RF transient techniques shall be
employed to minimize false alarms.
GAMEWELL-FCI
12 Clintonville Road, Northford, CT 06472 - Tel: (203) 484-7161 - Fax: (203) 484-7118
www.gamewell-fci.com
CS-2484 Rev. B page 2 of 3
Specifications:
Photoelectric, combination
photo/heat, or ionization:
30 to 45
µA
@ 24 volts.
Alarm Voltage:
6 to 28 volts.
Normal Alarm Output:
52 mA @ 24 volts.
Remote Alarm Output:
20 mA maximum, diode gated.
Temperature Range:
Photo/Comb/Ion/
Thermal
32
°
F to 140
°
F (0
°
C to 60
°
C)
Thermal:
-5
°
F to 195
°
F
(-20.5
°
C to 90.5
°
C)
Humidity:
0% to 95% relative humidity
(no condensation)
Recommended
Spacing:
Per NFPA codes.
Alarm Current:
6.0
(15.24 cm)
detector base with
relay:
72 mA @ 24 volts.
Standby Current:
Ordering Information:
71033
71034
71443
71035
71035-160
71035-210
71036
71086
71086-RED
Conventional photoelectric smoke
detector head.
Conventional ionization smoke detec-
tor head.
Conventional combination photo/heat
smoke detector head.
Conventional thermal heat detector
head (135°F [57.2°C]).
Conventional thermal heat detector
head (160°F [71.1°C]).
Conventional thermal heat detector
head (210°F [98.8°C]).
Conventional 4.0"
(10.16 cm)
detector
base.
Conventional 6.0"
(15.24 cm)
detector
base.
Conventional 6.0"
(15.24 cm)
detector
base with flashing power-indicating
red LED.
Conventional 6.0"
(125.24 cm)
detector
base with flashing power-indicating
green LED.
Conventional 6.0"
(15.24 cm)
detector
base with sounder.
Conventional 4.0" (10.16 cm)
detector base with relay and flashing
power-indicating green LED.
Conventional 6.0"
(15.24 cm)
low-pro-
file detector base.
71086-GREEN
71086-SNDR
71393
71086-LOW
GAMEWELL-FCI
12 Clintonville Road, Northford, CT 06472 - Tel: (203) 484-7161 - Fax: (203) 484-7118
www.gamewell-fci.com
CS-2484 Rev. B page 3 of 3
