MKC03-24S05M1 Overview

Power Supply Module,

MKC03-24S05M1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum input voltage	36 V
Minimum input voltage	18 V
JESD-30 code	R-MDIP-T12
Number of terminals	12
Maximum operating temperature	85 °C
Minimum operating temperature	-45 °C
Maximum output current	0.5 A
Nominal output voltage	5 V
Package body material	METAL
encapsulated code	DIP
Encapsulate equivalent code	DIP12/24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

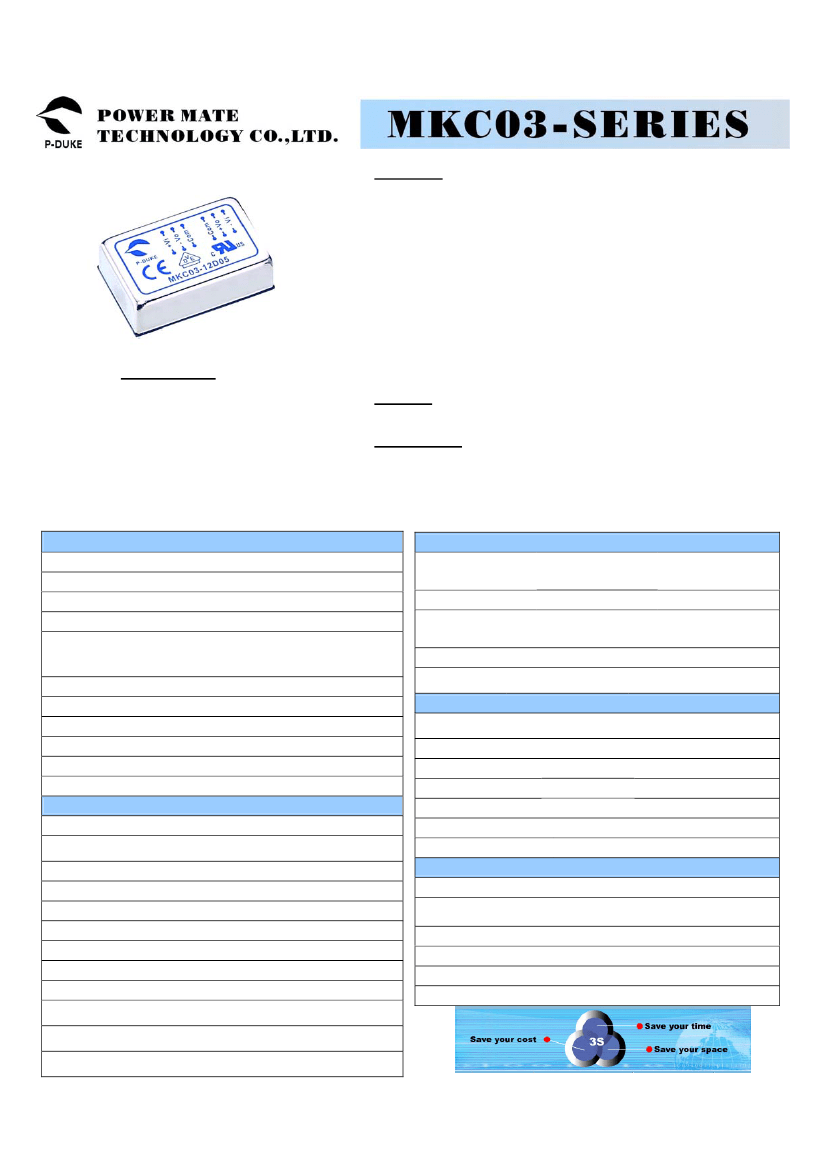

FEATURES

1 / 3

APPLICATIONS

Wireless Network

Telecom/Datacom

Industry Control System

Measurement Equipment

Semiconductor Equipment

•

3 WATTS REGULATED OUTPUT POWER

•

OUTPUT CURRENT UP TO 0.5A

•

STANDARD 1.25 X 0.80 X 0.40 INCH

•

HIGH EFFICIENCY UP TO 80%

•

2:1 WIDE INPUT VOLTAGE RANGE

•

FIVE-SIDED SHIELD

•

FIXED SWITCHING FREQUENCY (300KHz)

•

STANDARD 24 PIN DIP PACKAGE & SMD TYPE PACKAGE

•

OVER CURRENT PROTECTION

•

OUTPUT 1 / OUTPUT 2 ISOLATION (DS TYPE)

•

CE MARK MEETS 2006/95/EC, 93/68/EEC AND 2004/108/EC

•

UL60950-1, EN60950-1 AND IEC60950-1 LICENSED

•

ISO9001 CERTIFIED MANUFACTURING FACILITIES

•

COMPLIANT TO RoHS EU DIRECTIVE 2002/95/EC

OPTIONS

SMD TYPE, M1 TYPE

DESCRIPTION

The MKC03 series offer 3 watts of output power from a package in an IC

compatible 24pin DIP configuration without derating to 82ºC ambient

temperature. MKC03 series have 2:1 wide input voltage of 9-18, 18-36 and

36-75VDC.

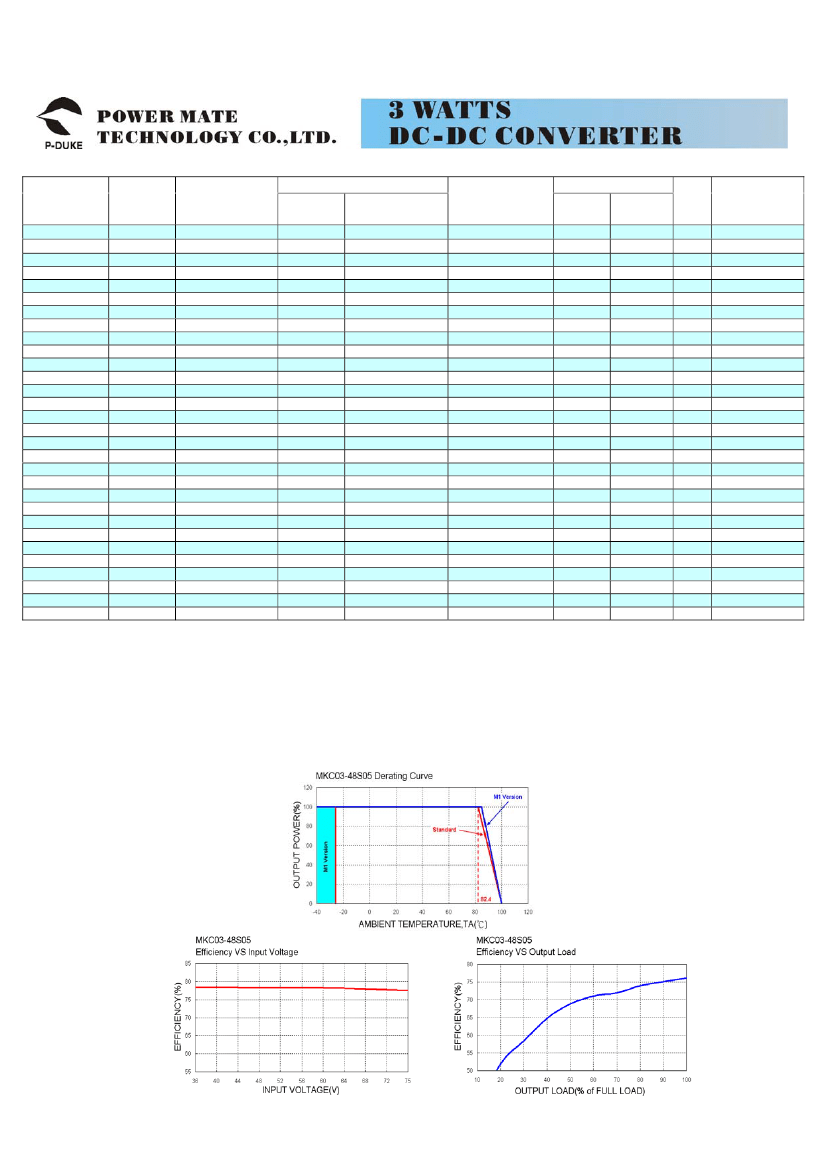

T E C H N I C A L S P E C I F I C AT I O N

OUTPUT SPECIFICATIONS

Output power

Voltage accuracy

Minimum load

Line regulation

Load regulation

LL to HL at Full Load

No Load

Single

to Full Load Dual

Full load and nominal Vin

All specifications are typical at nominal input, full load and 25ºC otherwise noted

INPUT SPECIFICATIONS

3 Watts max.

± 1%

± 0.2%

± 1%

± 5%

See table

±0.02%

/ ºC, max.

200μS

180% typ.

Input voltage range

Input filter

Input surge voltage

100mS max.

12V input

24V input

48V input

12V nominal input

24V nominal input

48V nominal input

9 – 18VDC

18 – 36VDC

36 – 75VDC

Pi type

36VDC

50VDC

100VDC

20mAp-p

350mS,max.

Input reflected ripple current Nominal Vin and full load

Start up time

Nominal Vin and

constant resistive load

Standard

M1 (Note 6)

Power up

Cross regulation (Dual) Asymmetrical load 25% / 100% FL

Ripple and noise

Temperature coefficient

Transient response recovery time 25% load step change

Over load protection

Short circuit protection

% of FL at nominal input

20MHz bandwidth

ENVIRONMENTAL SPECIFICATIONS

Operating ambient

temperature

Maximum case temperature

Storage temperature range

Thermal impedance

Thermal shock

Nature convection

-25ºC ~ +85ºC (with derating)

-40ºC ~ +85ºC (non-derating)

100ºC

-55ºC ~ +105ºC

20ºC/Watt

MIL-STD-810F

5% to 95% RH

Continuous, automatics recovery

GENERRALINPUT SPECIFICATIONS

Efficiency

Isolation voltage

Isolation resistance

Isolation capacitance

Switching frequency

Approvals and standard

Case material

Base material

Potting material

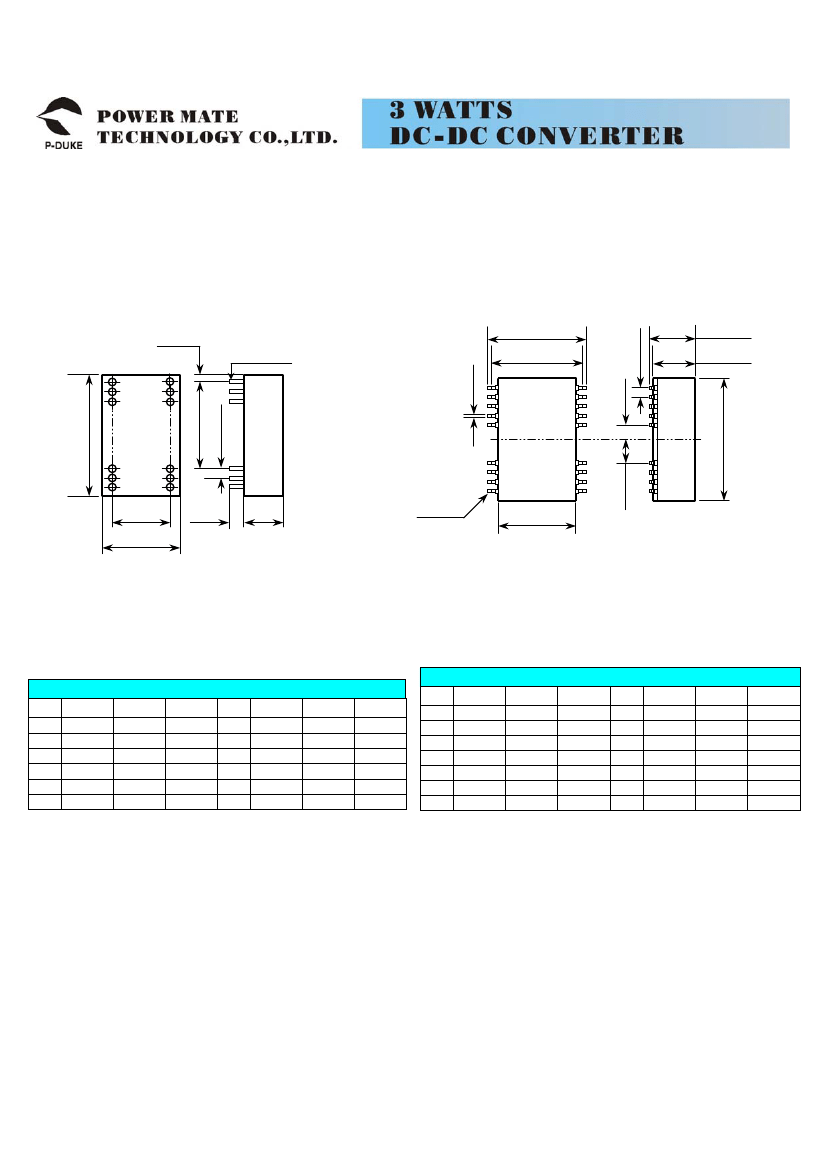

Dimensions

Weight

MTBF (Note 1)

Input to Output to Case

DS type, Output to Output

See table

500VDC, min.

10 ohms, min.

300pF, max.

300KHz, typ.

IEC60950-1, UL60950-1, EN60950-1

Nickel-coated copper

Non-conductive black plastic

Epoxy (UL94-V0)

1.25 X 0.80 X 0.40 Inch

(31.8 X 20.3 X 10.2 mm)

DIP

16g (0.55oz)

SMD

18g (0.62oz)

BELLCORE TR-NWT-000332

3.069 x 10 hrs

MIL-HDBK-217F

2.003 x 10 hrs

Vibration

Relative humidity

EMC CHARACTERISTICS

EMI

ESD

Radiated immunity

Fast transient (Note 7)

Surge (Note 7)

Conducted immunity

EN55022

EN61000-4-2

EN61000-4-3

EN61000-4-4

EN61000-4-5

EN61000-4-6

Air

Contact

8KV

6KV

10 V/m

Class A

Perf. Criteria A

2KV Perf. Criteria B

1KV Perf. Criteria B

10 Vr.m.s

Perf. Criteria A
