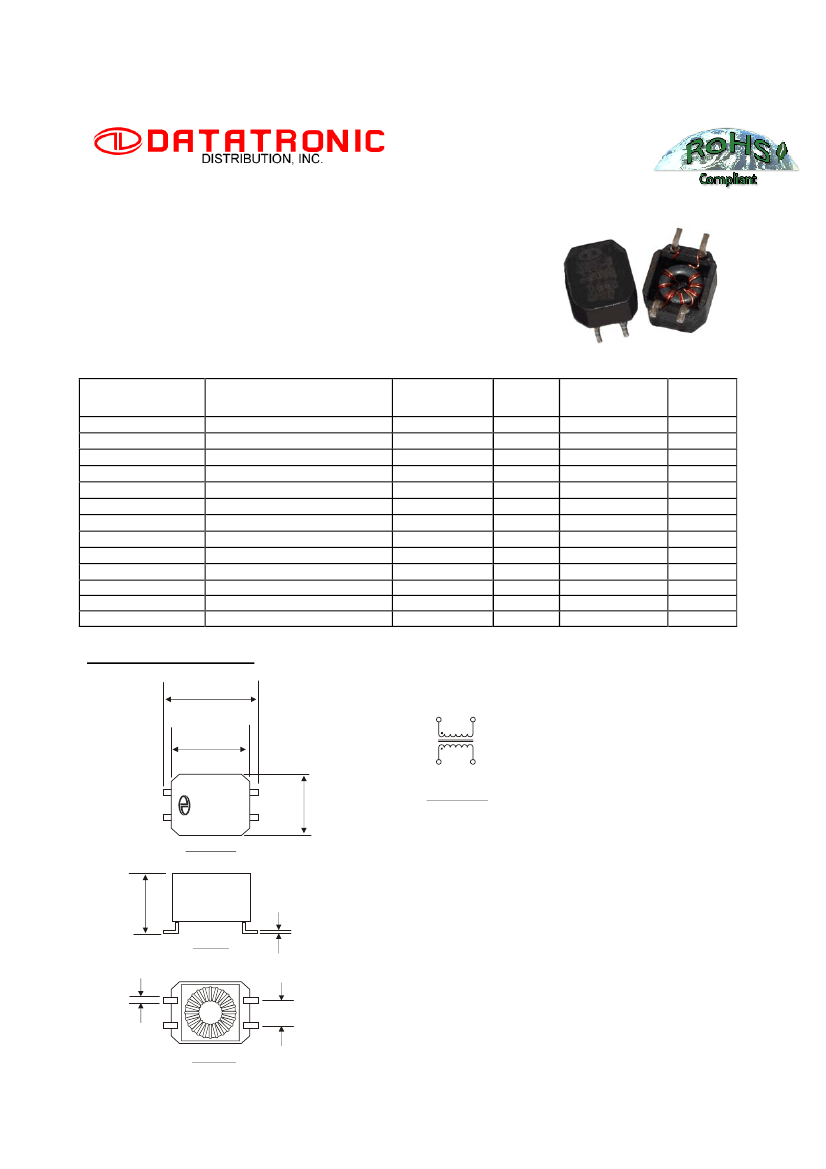

DR332-2 Series DATA LINE Low Profile SMD CHOKE
Features
Inductance Range from 5 µH to 4.7mH
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +125°C
Wide Frequency Range Over 100 MHz
Laser Marking
Tinned Leads with Leaded Solder is Available
(Note 3)
Custom Inductance Values Available
ELECTRICAL SPECIFICATIONS AT 25ºC
Part Number
DR332-1-502C
DR332-2-602C
DR332-2-602D
DR332-1-113C
DR332-1-253C
DR332-1-253D
DR332-1-513C
DR332-1-513D
DR332-2-104C
DR332-1-474C
DR332-1-105C
DR332-1-225C
DR332-1-475C
Inductance
5
μH
+/- 30% @ 100KHz
6
μH
+/- 30% @ 100KHz
6
μH
+/- 30% @ 100KHz
11
μH
+/- 30% @ 100KHz
25
μH
+/- 30% @ 100KHz
25
μH
+/- 30% @ 100KHz
51
μH
+/- 30% @ 100KHz
51
μH
+/- 30% @ 100KHz
100
μH
+/- 30% @ 100KHz
470
μH
+/- 30% @ 100KHz
1.0 mH -30/+50% @ 100KHz
2.2 mH -30/+50% @ 10KHz
4.7 mH -30/+50% @ 10KHz
Leakage
Ind. (nH typ)
50
50
400
50
150
1500
200
2000
180
200
250
250
300
DCR
(Ω typ)
0.100
0.022
0.022
0.120
0.130
0.130
0.160
0.160
0.200
0.200
0.200
0.400
0.550
Rated Current
(A max)
1.2
2.5
2.5
0.8
0.8
0.8
0.8
0.8
0.5
0.7
0.7
0.5
0.4
HIPOT
(Vdc)
250
250
250
250
250
250
250
250
250
750
750
750
750
MECHANICAL OUTLINES
0.362 (9.2)
1
0.28 (7.1)
MAX
2
1
2
3
4
2
-
2
3
3
X
X
X
X
WC
WO
Y C
Y
4
3
0.236 (6.0)
MAX
SCHEMATIC
TOP VIEW
0.189 (4.8)
MAX
FRONT
0.024 (0.6)
0.012 (0.3)
NOTES:
1. All dimensions are shown in inches “IN” (millimeters “mm”).
2. Rated voltage 80VDC, 42VAC.
3. For non-RoHS parts replace SM prefix with 42- (e.g. DR332-
2-502C becomes 42-332-2-502C).
4. Terminal finish is compliant to RoHS requirements. Solder in
accordance with J-STD-020C.
0.098 (2.5)
BOTTOM
