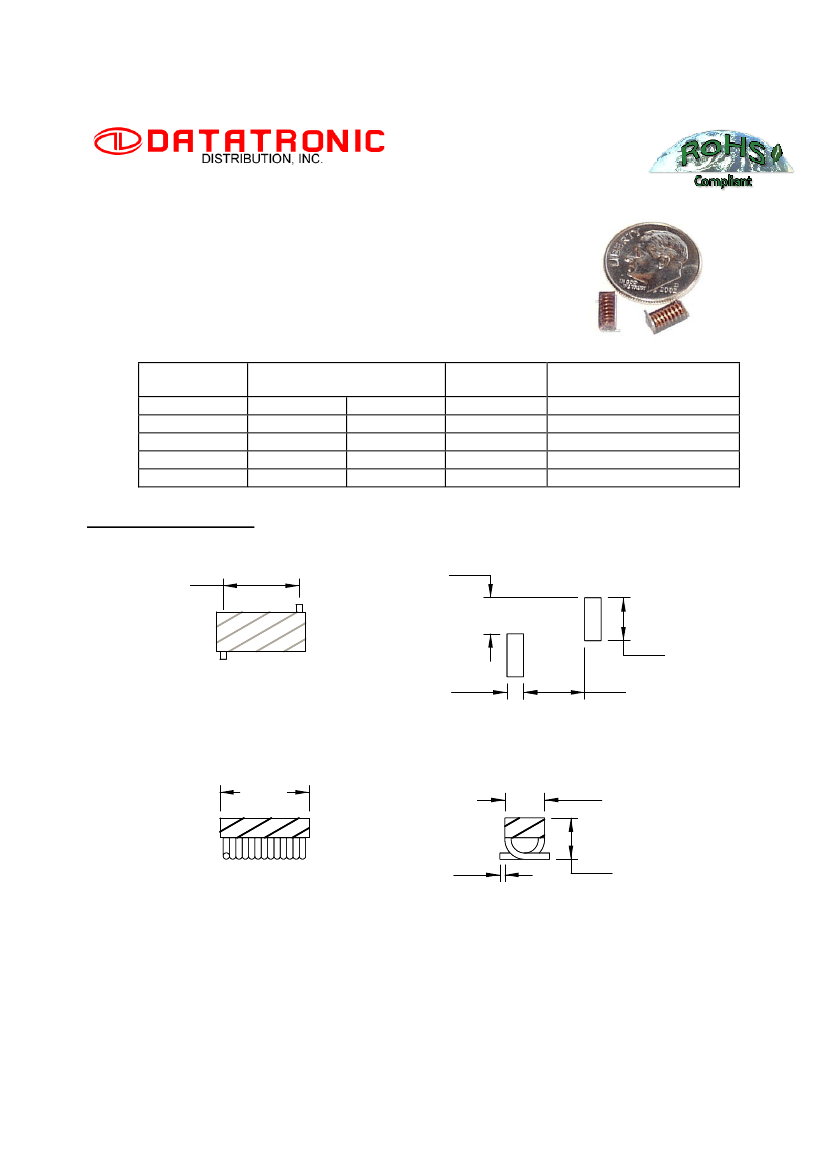

SMD INDUCTOR DR355-2 SERIES

Features

Low Profile Surface Mount Design

Suitable for Reflow soldering

Inductance Range from 17.5nH to 43nH

Operating Temp. -40°C to +125°C

Tinned Leads with Leaded Solder is Available

(note 4)

ELECTRICAL SPECIFICATIONS AT 25ºC

INDUCTANCE (nH)

@ 0A

@150MHz

17.5±5%

@150MHz

22.0±5%

@150MHz

28.0±5%

@150MHz

35.5±5%

@150MHz

43.0±5%

DCR (mΩ)

MAX.

4.5

5.2

6.0

6.8

7.9

MAX. RATED CURRENT

(A) (TYP.)

4.0

PART NO.

DR355-2-183

DR355-2-223

DR355-2-283

DR355-2-363

DR355-2-433

MECHANICAL OUTLINES

5.84 +/-0.25

2.79

3.30

1.27

4.70

SUGGESTED PAD LAYOUT

6.84

3.05

.58 +/-0.38

3.18

NOTE:

All dimensions shown are in “mm”.

All dimensions are reference unless other specified

Tape and reel quantity, 1000 pcs/reel

For non-RoHS parts replace DR prefix with 42- (e.g. DR355-2 becomes 42-355-2)

Terminal finish is compliant to RoHS requirements. Solder in accordance with J-STD-020C
