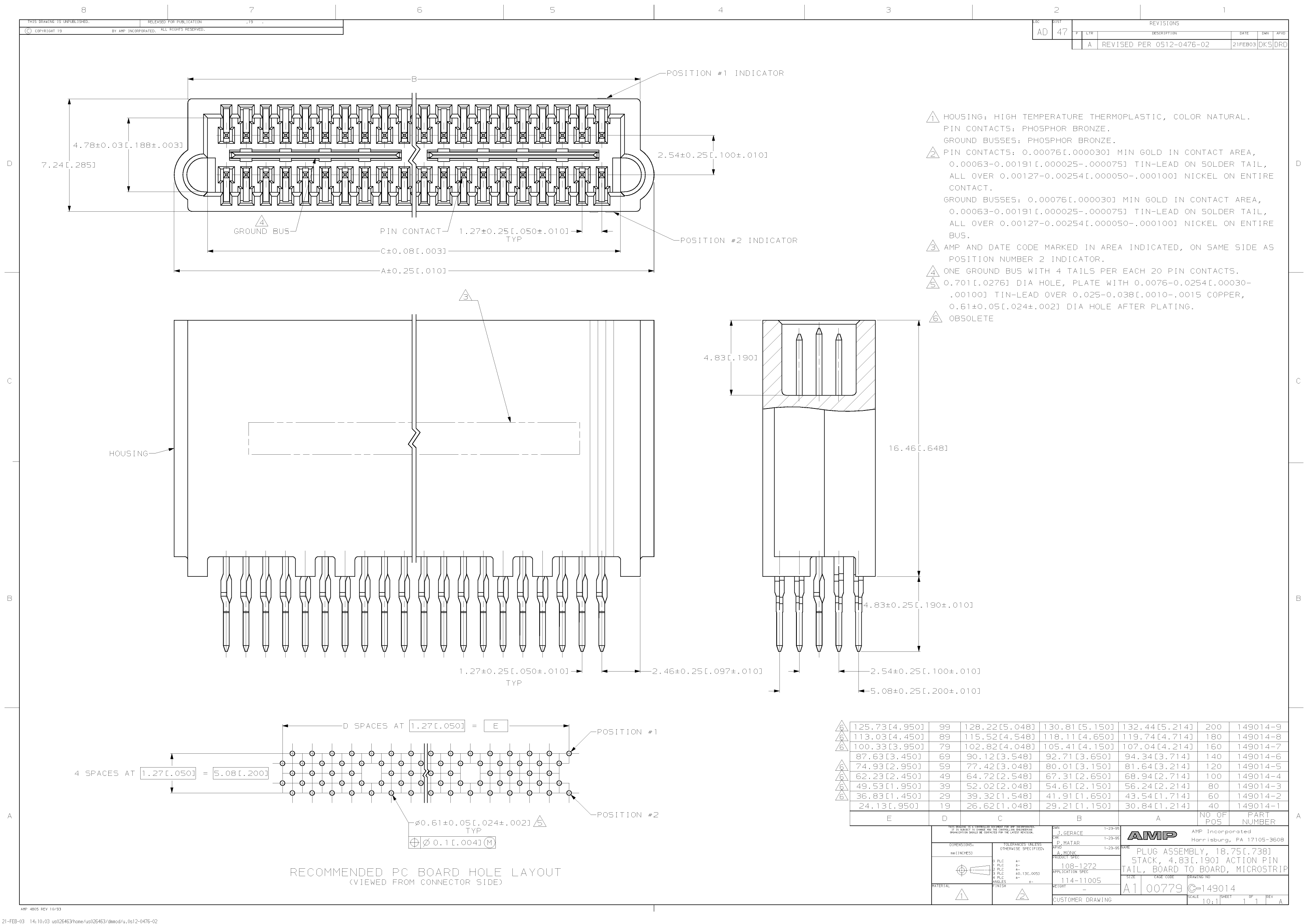

Preview

149014-7: Description160 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, PRESS FIT, PLUG; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

149014-7 Overview

160 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, PRESS FIT, PLUG

149014-7 Parametric

Parameter Name	Attribute value
Objectid	1429332837
Reach Compliance Code	unknown
Other features	ACTION PIN, STAGGERED CONFIGURATION
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	149014
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	160

Preview

Download Datasheet

View All

149014-7 Related Products

	149014-7	149014-4	149014-5	149014-8	149014-2	149014-3	149014-6	ATS-18B-193-C1-R0	149014-9
Description	160 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, PRESS FIT, PLUG	100 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, PRESS FIT, PLUG	HEADER CONNECTOR,PCB MNT,RECEPT,120 CONTACTS,PIN,0.05 PITCH,COMPLIANT FIT TERMINAL,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,PIN,0.05 PITCH,COMPLIANT FIT TERMINAL,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,60 CONTACTS,PIN,0.05 PITCH,COMPLIANT FIT TERMINAL,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,80 CONTACTS,PIN,0.05 PITCH,COMPLIANT FIT TERMINAL,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,140 CONTACTS,PIN,0.05 PITCH,COMPLIANT FIT TERMINAL,NATURAL	Heat Sink Assembly	200 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, PRESS FIT, PLUG
Objectid	1429332837	1429332807	300542607	300542610	300542604	-	300542608	-	1429332855
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow	unknown	-	unknown
Other features	ACTION PIN, STAGGERED CONFIGURATION	ACTION PIN, STAGGERED CONFIGURATION	HIGH-TEMP, STACK HEIGHT=0.738"	HIGH-TEMP, STACK HEIGHT=0.738"	HIGH-TEMP, STACK HEIGHT=0.738"	HIGH-TEMP, STACK HEIGHT=0.738"	HIGH-TEMP, STACK HEIGHT=0.738"	-	ACTION PIN, STAGGERED CONFIGURATION
Body/casing type	PLUG	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	PLUG
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD STACKING CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	-	MALE
Manufacturer's serial number	149014	149014	149014	149014	149014	149014	149014	-	149014
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	-	BOARD
Number of rows loaded	2	2	3	3	3	3	3	-	2
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	-	PRESS FIT
Total number of contacts	160	100	120	180	60	80	140	-	200
body width	-	-	0.285 inch	0.285 inch	0.285 inch	0.285 inch	0.285 inch	-	-
subject depth	-	-	0.648 inch	0.648 inch	0.648 inch	0.648 inch	0.648 inch	-	-
body length	-	-	3.214 inch	4.714 inch	1.714 inch	2.214 inch	3.714 inch	-	-
Contact to complete cooperation	-	-	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	-	-
Contact completed and terminated	-	-	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	-	-
Contact material	-	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	-
contact mode	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-
Contact style	-	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	-	-
Insulator color	-	-	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	-	-
insulator material	-	-	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	POLYETHYLENE	-	-
Plug contact pitch	-	-	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	-	-
Match contact row spacing	-	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	-
Number of connectors	-	-	ONE	ONE	ONE	ONE	ONE	-	-
PCB row number	-	-	5	5	5	5	5	-	-
PCB contact pattern	-	-	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	-	-
PCB contact row spacing	-	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	-	-
Plating thickness	-	-	30u inch	30u inch	30u inch	30u inch	30u inch	-	-
polarization key	-	-	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	-	-
Guideline	-	-	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	-	-
reliability	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-
Terminal length	-	-	0.19 inch	0.19 inch	0.19 inch	0.19 inch	0.19 inch	-	-
