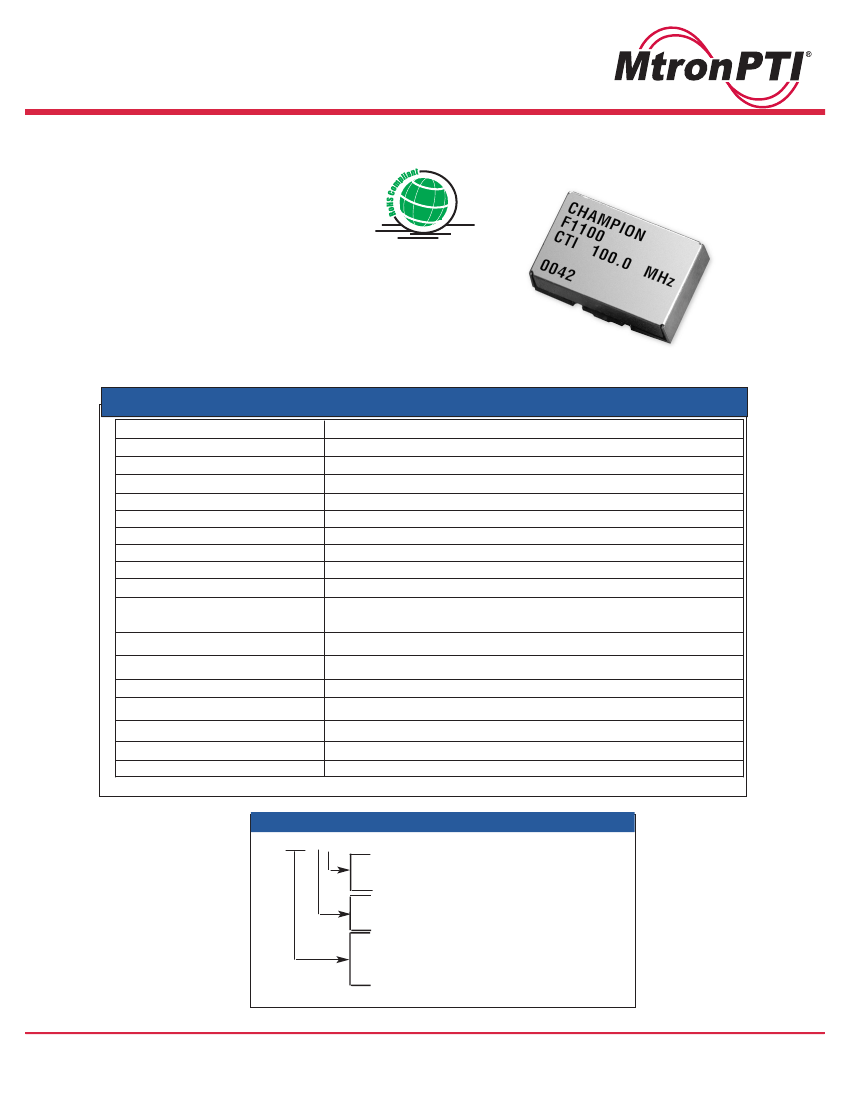

F1100C Series
4 pin DIP FR-4, 5.0 Volt, CMOS/TTL, Clock Oscillator
F1100C Series
THIS PRODUCT IS OBSOLETE AND NOT RECOMMENDED FOR NEW
Crystal Clock Oscillators
5V FR-4 Surface Mount
DESIGNS.
FR-4 Based SMT
65MHz to 105MHz Frequency Range
-10oC to 70oC Operating Temperature
”M” Models Operate from -40oC to 85oC
40/60% Symmetry Standard
45/55% Available
±100ppm Stability Standard
OBSOLETE
Tighter Stabilities Available
±20ppm Stability:- Contact Factory
±25ppm Stability: F1125C
±50ppm Stability: F1150C
Hermetically Sealed Crystal for Predictable Long Term Aging & Reliability
Tri-State Output Standard
E L E C T R I C A L S P E C I F I C AT I O N S
MODEL
Frequency Range (MHz)
Frequency Stability (ppm)
Overall
-10°C to 70°C
Temperature Range (°C)
Operating
Storage
Supply Voltage (V)
Supply Current (mA)
Output Specifications
Output
-40°C to +85°C
-40°C to +85°C
+5.0 ±5%
<30
CMOS
0.9 VCC
0.1 VCC
15pF
<3 (20 - 80% VCC)
40/60 @ 0.5VCC
5ps RMS @ 100MHz
<10
Inclusive of calibration, temperature, voltage, load, shock,vibration, aging
±100
F1100C
65 to 105
“0” Level (VOL)
“1” Level (VOH)
Load
TR & TF (ns)
Symmetry (%)
Jitter (Typical)
Start up Time (ms)
PA R T N U M B E R I N G G U I D E
F11XXCXX -
Specify Frequency
“Blank” = -10oC to 70oC Operating Temperature
“M” = -40oC to 85oC Operating Temperature
“Blank” = 40/60% Symmetry
“S” = 45/55 Symmetry
“25” = ±25ppm (-10 to 70C only)
“50” = ±50ppm
“00” = ±100ppm
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI 1-800-762-8800.
2553 N. Edgington Street, Franklin Park, IL 60131
Phone: 847.451.1000
Fax: 847.451.7585
Revision: 09-27-10
800-888-1499 or www.champtech.com
F1100C Series
4 pin DIP FR-4, 5.0 Volt, CMOS/TTL, Clock Oscillator
THIS PRODUCT IS NOT RECOMMENDED FOR NEW DESIGNS.
PLEASE REFER TO THE M1 PRODUCT SERIES.
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI 1-800-762-8800.
Revision: 03-01-07
