SPECIFICATIONS
Electrical Rating:
Contact Resistance:
Insulation Resistance:
Withstanding:
Mechanical Life:
Electrical Life:
Temperature Rise:
Solder Ability of Terminal:
Irrush Current:
Ambient Temperature:
Ambient Humidity:
Degree of Protection:
Applicability for Appliance:
Proof Tracking Resistance:
Degree of Pollution:
8
16A 250VAC 20A 125VAC
<20mΩ
>1000MΩ (500VDC between open contacts)
>1500V 1 minute
>30000 cycles
>10000 cycles
Max 30°C at terminal
Max 350°C, 3S (no pressure may be placed in
The terminals when soldering by hand)
140A
10T85
Max. 85%
IP20
If Class II
175 Index (PTI)
Normal
9
A
A
B
B
C
Pole Function
A
SPDT
1-1a
Function
——-
——-
B
1-1b
C
D
Panel Out-Cut
Z
0.7~1.25 [.028-.049]
1.25~2.0 [.049~.079]
2.0~3.0 [.079~.118]
E
Y
11.1~11.2 [.437-.441]
11.1~11.2 [.437~.441]
11.1~11.2 [.437~.441]
X
29.6~29.7 [1.165~1.169]
30.1~30.2 [1.185~1.189]
30.45~30.45 [1.199~1.203]
D
Series
SWT
Switch
Type
42
Snap in
Rocker
Poles
X
S=Single
D=Double
Function
X
1=On None On
2=On
None Off
F
RoHS compliant
Rev.
Description
Date
Approved
Terminals
X
QS=Quick
Connect St.
QB=Quick
Connect Bent
Housing Color
XX
BK=Black OR=Orange
GY=Gray BL=Blue
YL=Yellow GN=Green
RD=Red WT=White
Actuator Color
XX
BK=Black OR=Orange
GY=Gray BL*=Blue
YL*=Yellow GN*=Green
RD*=Red WT*=White
*Add “L” to Illuminate
Actuator Marking
X
See Table
E
F
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
Date
12/23/13
12/23/13
12/23/13 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
SWT-42-S-X-QS-XX-XX-X
G
7
8
9
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

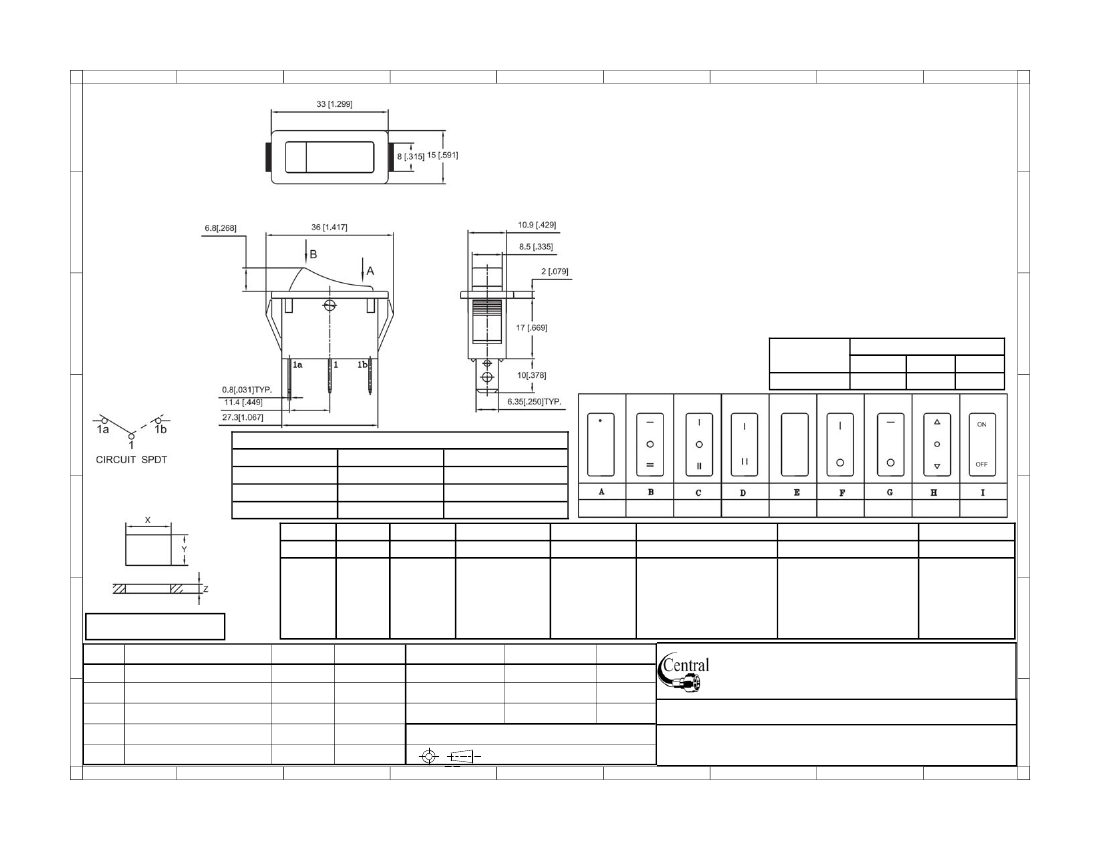

Description: Snap in Rocker Switch
1
2
3
4
