Z86L0608PSG datasheet, PDF - EEWORLD Datasheet

Z86L0608PSG: DescriptionMicrocontroller, 8-Bit, MROM, 8MHz, CMOS, PDIP18, PLASTIC, DIP-18; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，30 Pages; ManufacturerIXYS; Environmental Compliance

Download Datasheet Parametric Compare View All

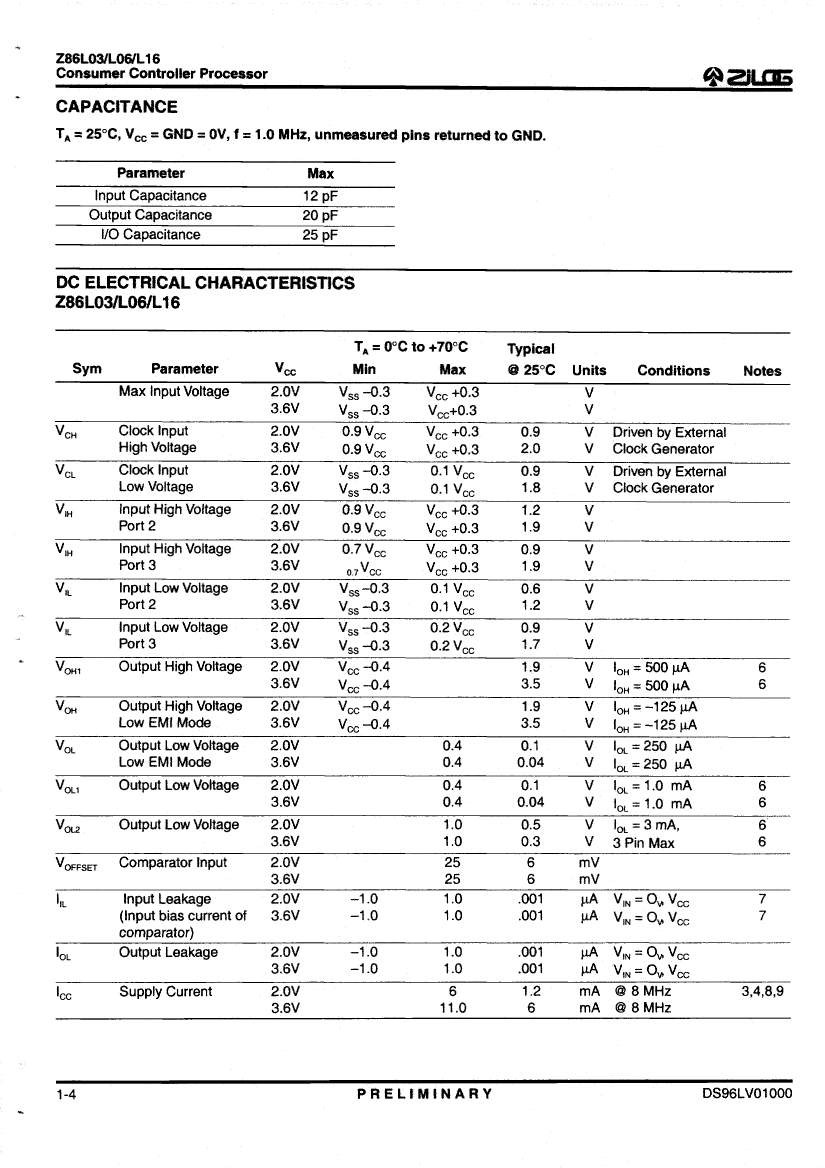

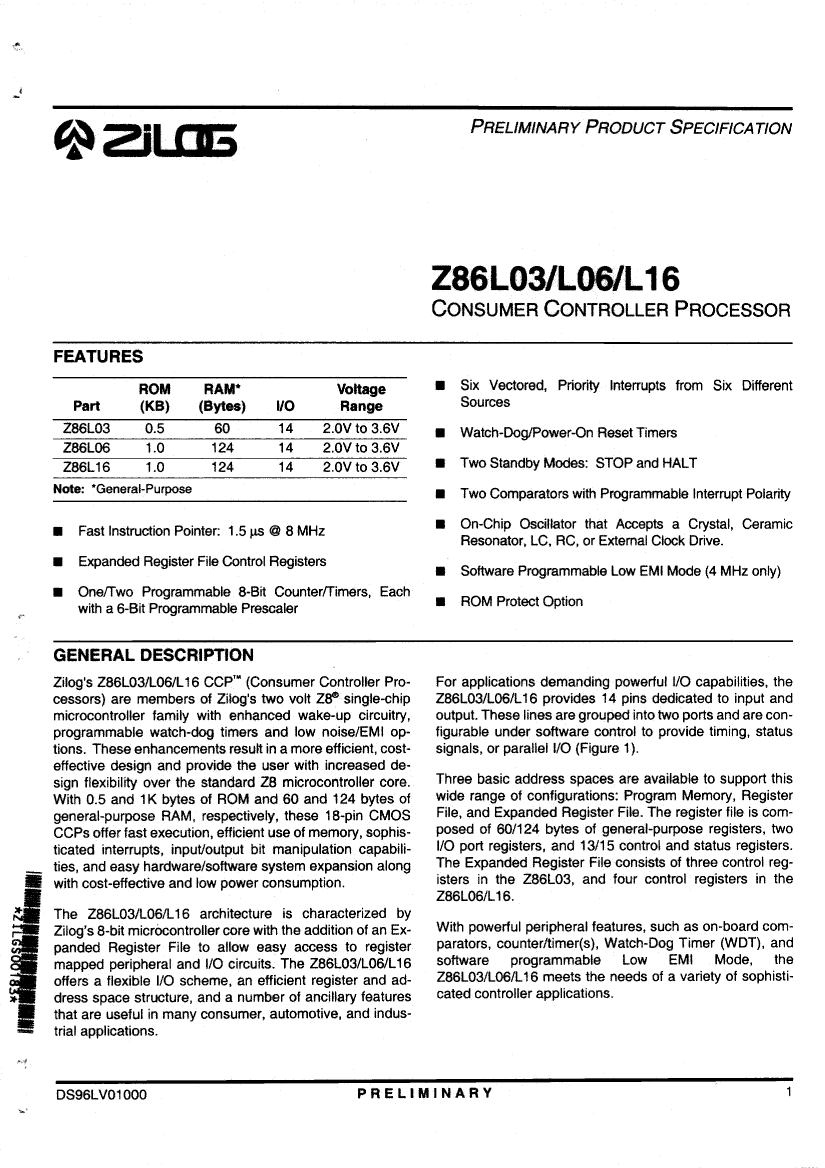

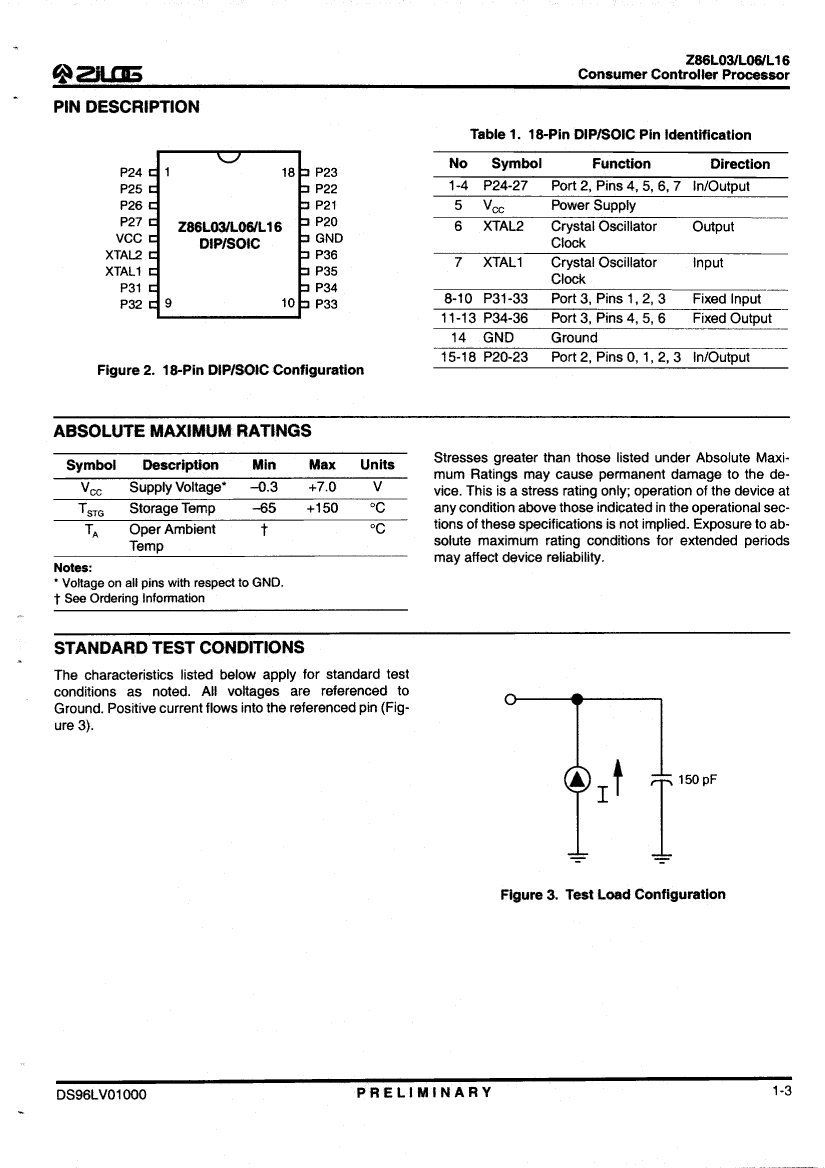

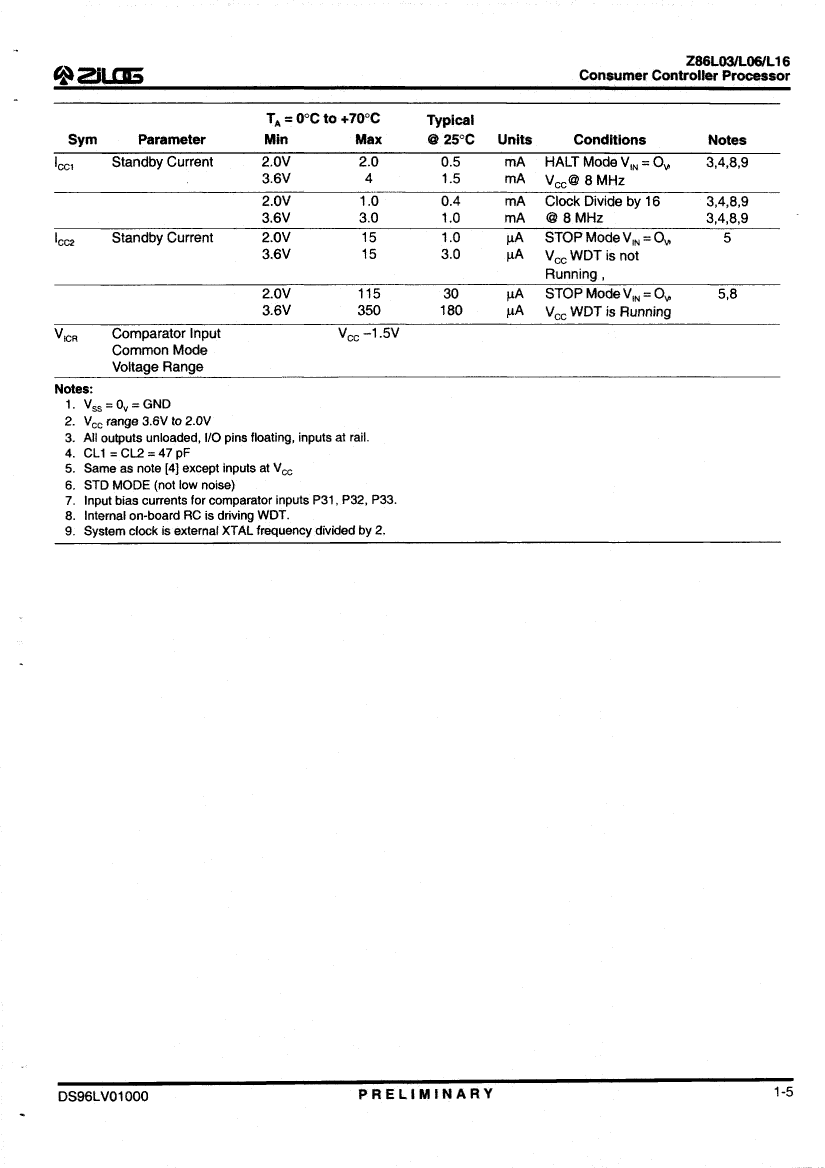

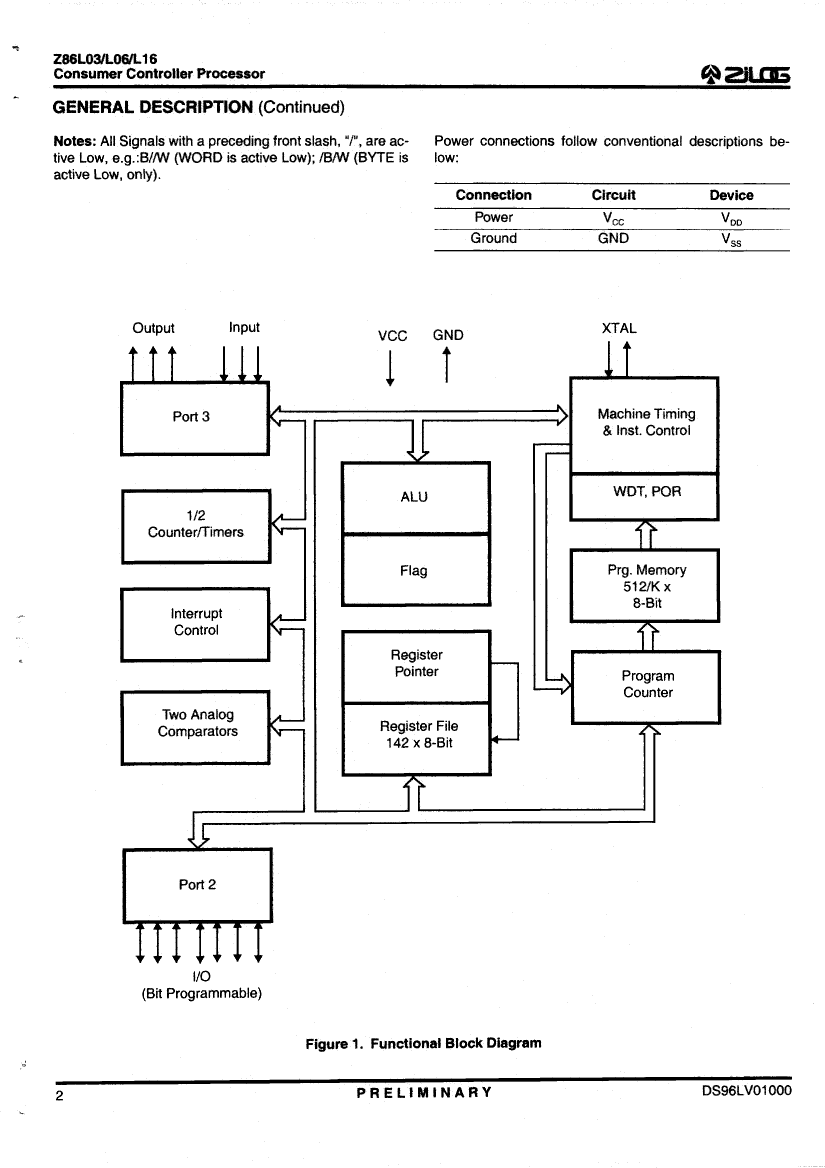

Z86L0608PSG Overview

Microcontroller, 8-Bit, MROM, 8MHz, CMOS, PDIP18, PLASTIC, DIP-18

Parameter Name	Attribute value
Is it lead-free?	Lead free
Parts packaging code	DIP
package instruction	PLASTIC, DIP-18
Contacts	18
Reach Compliance Code	compliant
Has ADC	NO
Other features	ROM PROTECT; OPTIONAL LOW EMI MODE
Address bus width
bit size	8
boundary scan	NO
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T18
JESD-609 code	e3
length	22.86 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	3
Number of I/O lines	14
Number of serial I/Os
Number of terminals	18
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
RAM (number of words)	124
rom(word)	1024
ROM programmability	MROM
Maximum seat height	4.24 mm
speed	8 MHz
Maximum slew rate	11 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	2 V
Nominal supply voltage	3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

	Z86L0608PSG
Description	Microcontroller, 8-Bit, MROM, 8MHz, CMOS, PDIP18, PLASTIC, DIP-18
Is it lead-free?	Lead free
Parts packaging code	DIP
package instruction	PLASTIC, DIP-18
Contacts	18
Reach Compliance Code	compliant
Has ADC	NO
Other features	ROM PROTECT; OPTIONAL LOW EMI MODE
bit size	8
boundary scan	NO
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T18
JESD-609 code	e3
length	22.86 mm
low power mode	YES
Number of external interrupt devices	3
Number of I/O lines	14
Number of terminals	18
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	70 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
RAM (number of words)	124
rom(word)	1024
ROM programmability	MROM
Maximum seat height	4.24 mm
speed	8 MHz
Maximum slew rate	11 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	2 V
Nominal supply voltage	3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1
