Z86C3012TSC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z86C3012TSC

Z86C3012TSC: DescriptionMicrocontroller, 8-Bit, MROM, 12MHz, CMOS, CC-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，41 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z86C3012TSC Overview

Microcontroller, 8-Bit, MROM, 12MHz, CMOS, CC-28

Z86C3012TSC Parametric

Parameter Name	Attribute value
Parts packaging code	MODULE
package instruction	,
Contacts	28
Reach Compliance Code	unknown
Has ADC	NO
Other features	OPTIONAL LOW EMI MODE; ROM/RAM PROTECT; TWO STANDBY MODES
Address bus width
bit size	8
boundary scan	NO
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-XXMA-X28
low power mode	YES
Number of DMA channels
Number of external interrupt devices	6
Number of I/O lines	24
Number of serial I/Os
Number of terminals	28
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
RAM (number of words)	236
rom(word)	4000
ROM programmability	MROM
speed	12 MHz
Maximum slew rate	20 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

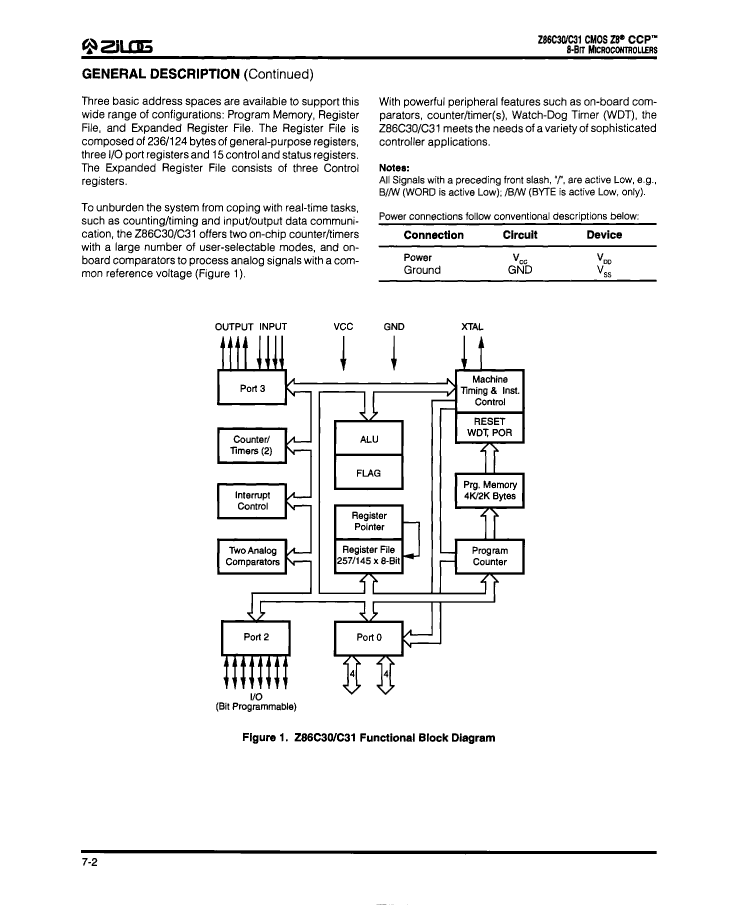

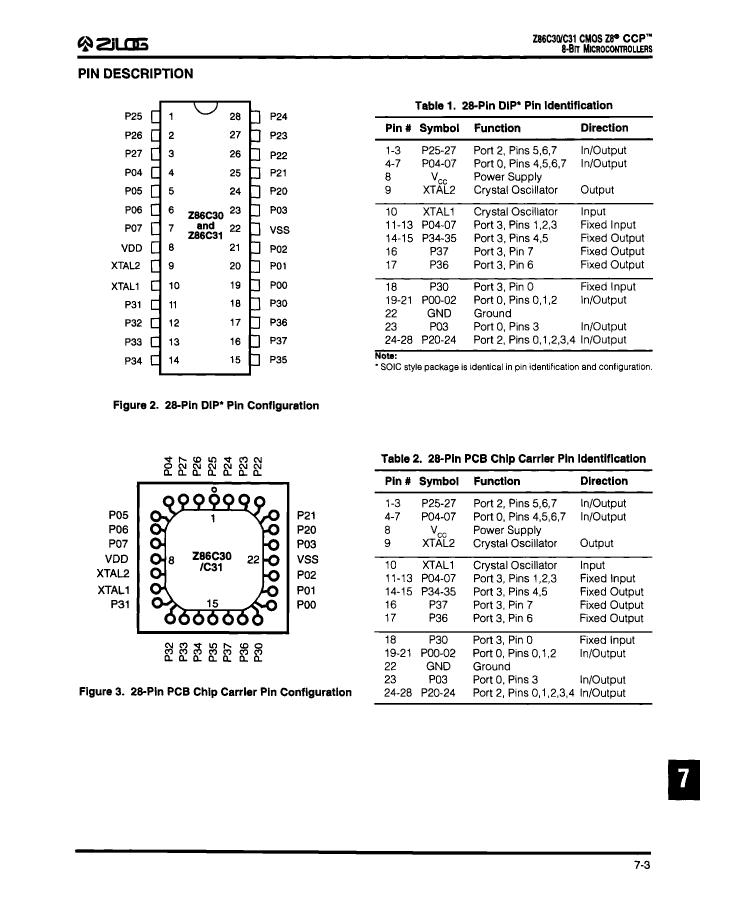

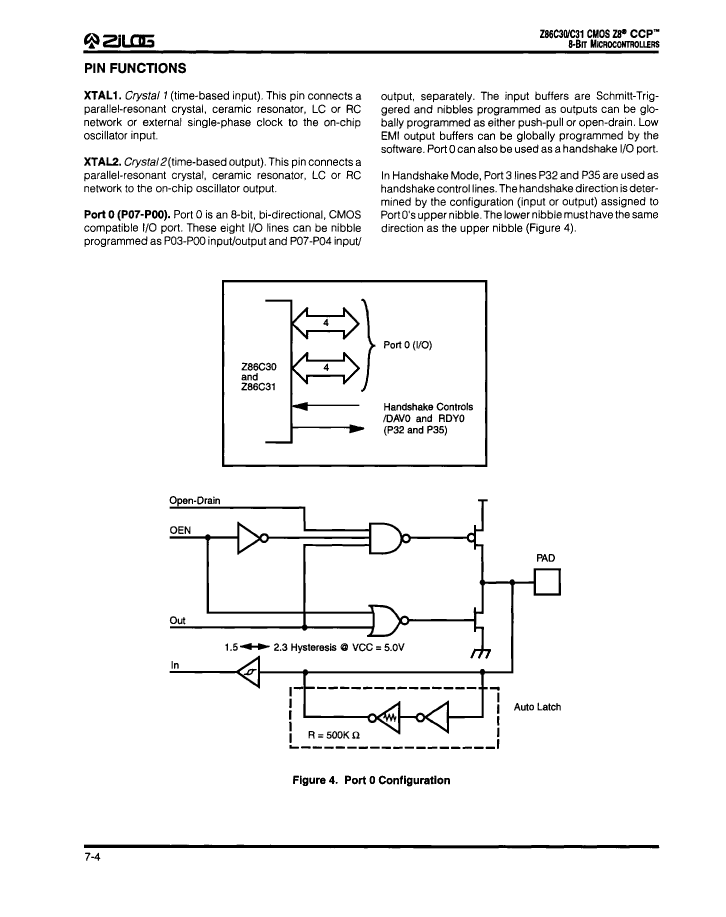

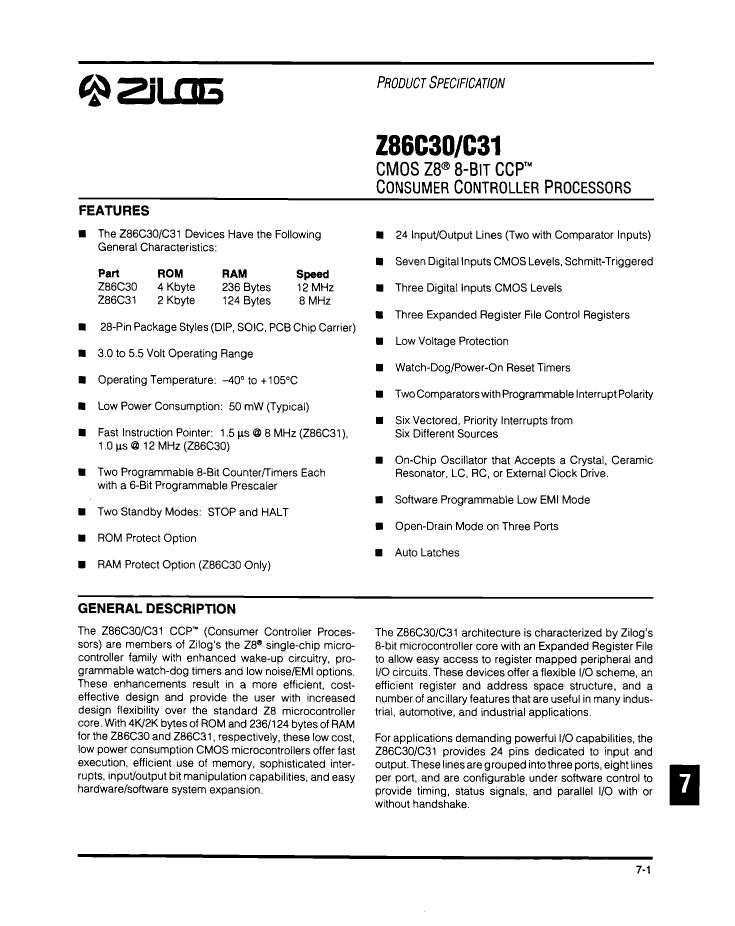

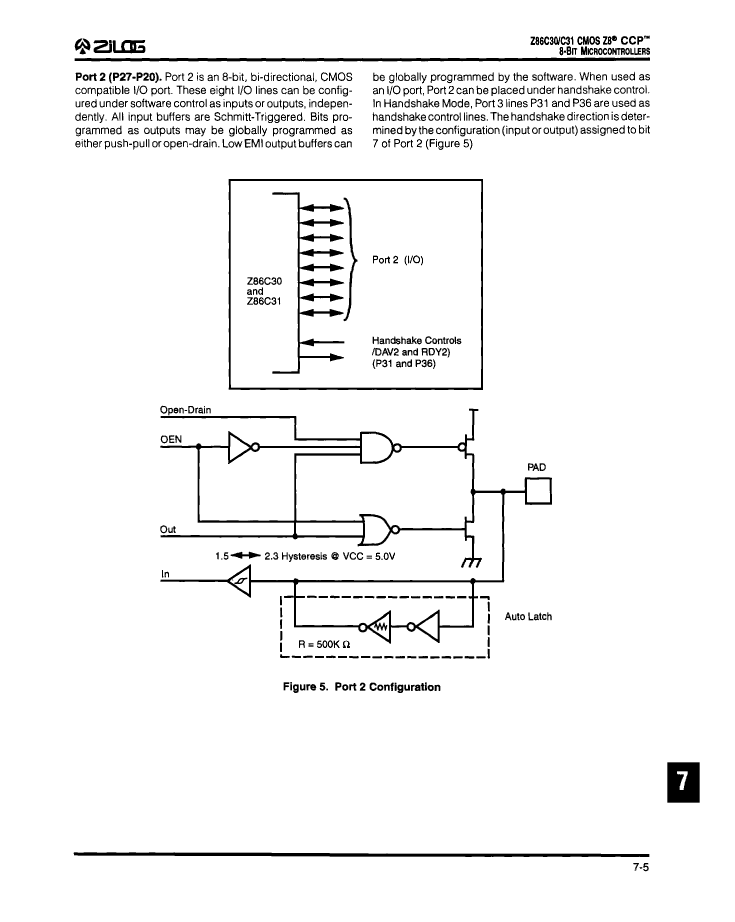

Preview

Download Datasheet

View All

Z86C3012TSC Related Products

	Z86C3012TSC	Z86C3108SEC	Z86C3012PEG	Z86C3012PEC
Description	Microcontroller, 8-Bit, MROM, 12MHz, CMOS, CC-28	Microcontroller, 8-Bit, MROM, 8MHz, CMOS, PDSO28, PLASTIC, SOIC-28	IC 8-BIT, MROM, 12 MHz, MICROCONTROLLER, PDIP28, PLASTIC, DIP-28, Microcontroller	IC 8-BIT, MROM, 12 MHz, MICROCONTROLLER, PDIP28, PLASTIC, DIP-28, Microcontroller
Parts packaging code	MODULE	SOIC	DIP	DIP
package instruction	,	SOP,	DIP,	DIP,
Contacts	28	28	28	28
Reach Compliance Code	unknown	unknown	unknown	unknow
Has ADC	NO	NO	NO	NO
Other features	OPTIONAL LOW EMI MODE; ROM/RAM PROTECT; TWO STANDBY MODES	OPTIONAL LOW EMI MODE; ROM PROTECT; TWO STANDBY MODES	OPTIONAL LOW EMI MODE; ROM/RAM PROTECT; TWO STANDBY MODES	OPTIONAL LOW EMI MODE; ROM/RAM PROTECT; TWO STANDBY MODES
bit size	8	8	8	8
boundary scan	NO	NO	NO	NO
maximum clock frequency	12 MHz	8 MHz	12 MHz	12 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO
JESD-30 code	S-XXMA-X28	R-PDSO-G28	R-PDIP-T28	R-PDIP-T28
low power mode	YES	YES	YES	YES
Number of external interrupt devices	6	6	6	6
Number of I/O lines	24	24	24	24
Number of terminals	28	28	28	28
Number of timers	2	2	2	2
On-chip data RAM width	8	8	8	8
On-chip program ROM width	8	8	8	8
Maximum operating temperature	70 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C
PWM channel	NO	NO	NO	NO
Package body material	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	SMALL OUTLINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	236	124	236	236
rom(word)	4000	2000	4096	4096
ROM programmability	MROM	MROM	MROM	MROM
speed	12 MHz	8 MHz	12 MHz	12 MHz
Maximum slew rate	20 mA	20 mA	20 mA	20 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	UNSPECIFIED	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal location	UNSPECIFIED	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	-	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
encapsulated code	-	SOP	DIP	DIP
