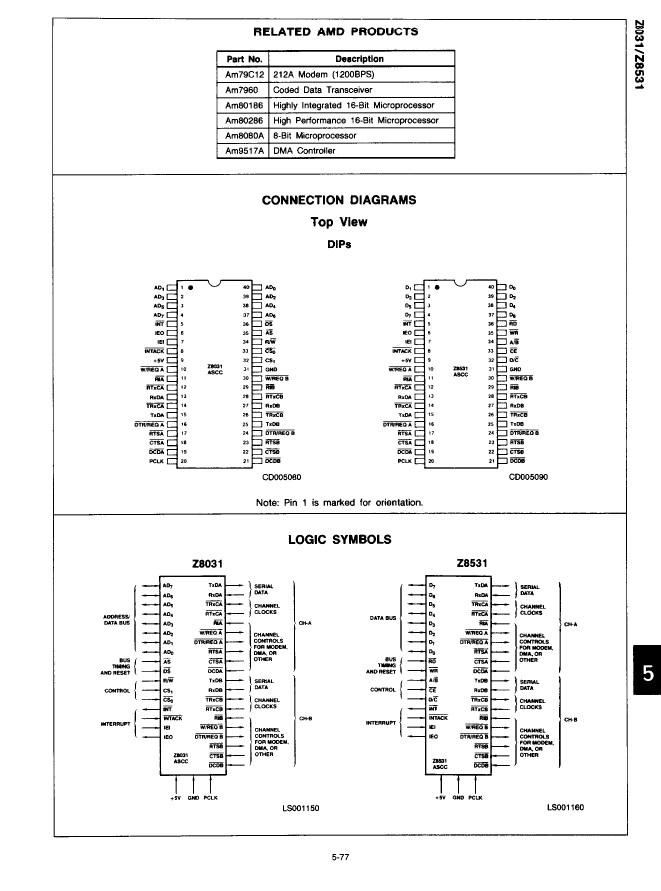

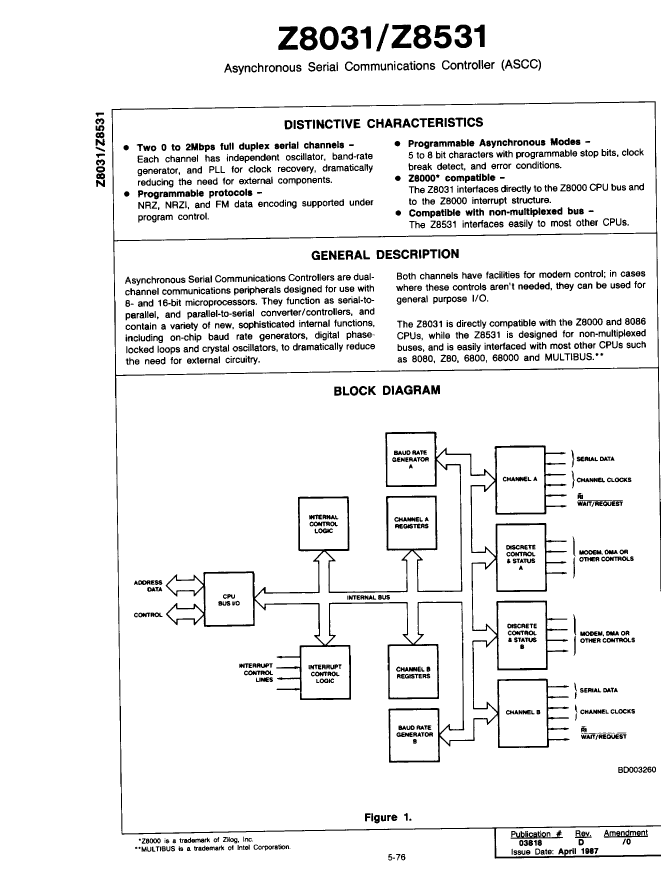

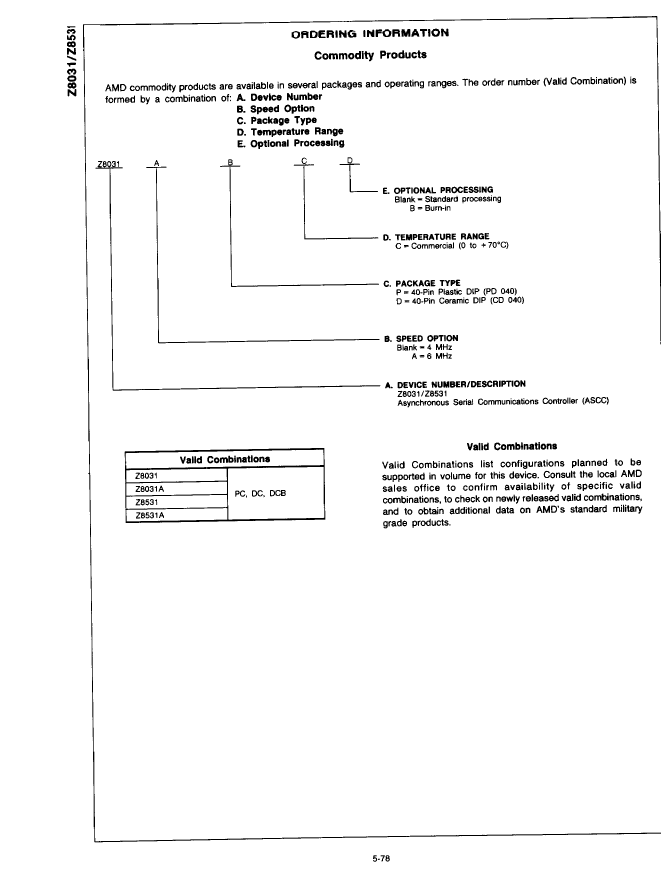

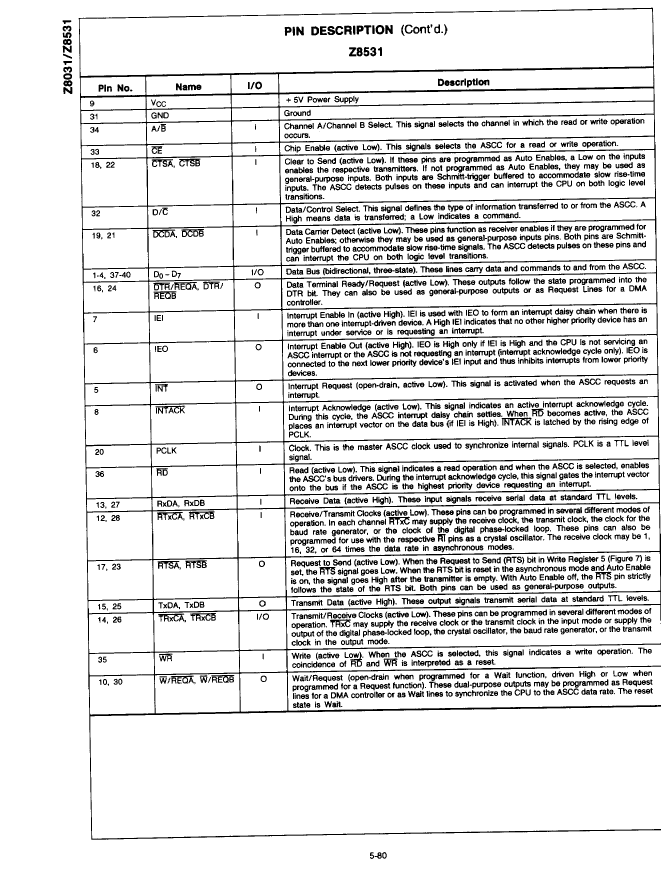

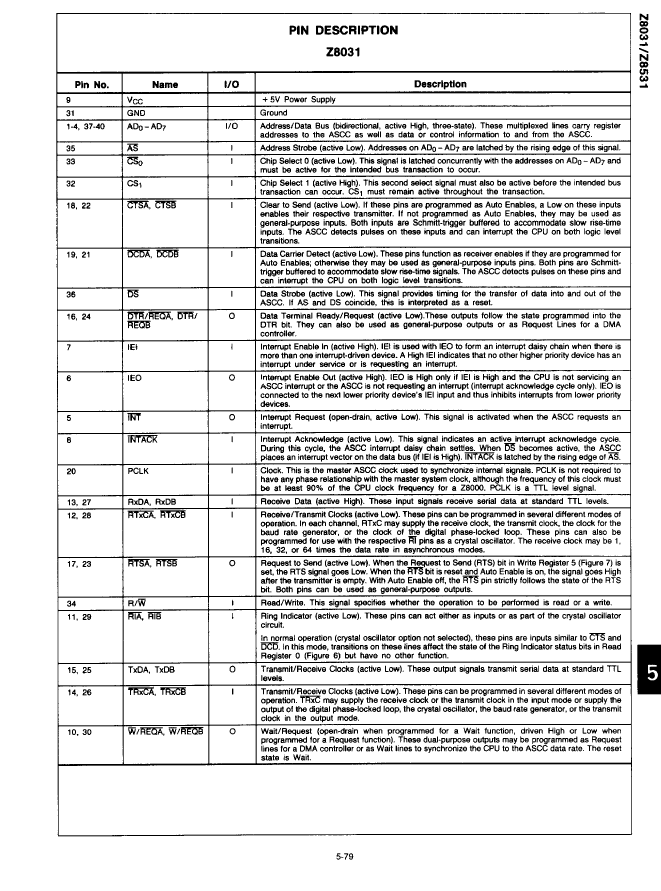

Preview

Z8531APCT: DescriptionMicro Peripheral IC, MOS, PDIP40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，29 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

Z8531APCT Overview

Micro Peripheral IC, MOS, PDIP40

Z8531APCT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP40,.6
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	NO
technology	MOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

Z8531APCT Related Products

	Z8531APCT	Z8531APCB	Z8531APCTB	Z8031DIT	Z8031DIB	Z8031DCTB	Z8031PCT
Description	Micro Peripheral IC, MOS, PDIP40	Micro Peripheral IC, MOS, PDIP40	Micro Peripheral IC, MOS, PDIP40	Micro Peripheral IC, MOS, CDIP40	Micro Peripheral IC, MOS, CDIP40	Micro Peripheral IC, MOS, CDIP40	Micro Peripheral IC, MOS, PDIP40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6
Reach Compliance Code	unknown	unknown	unknown	compliant	compliant	compliant	compliant
JESD-30 code	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40	R-XDIP-T40	R-XDIP-T40	R-XDIP-T40	R-PDIP-T40
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Number of terminals	40	40	40	40	40	40	40
Maximum operating temperature	70 °C	70 °C	70 °C	85 °C	85 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	MOS	MOS	MOS	MOS	MOS	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	-	-
