Miniature DC–33.5GHz
Latching SPDT Coaxial Switch
PaRT NuMbeR
CCR-33K
DeSCRiPTioN

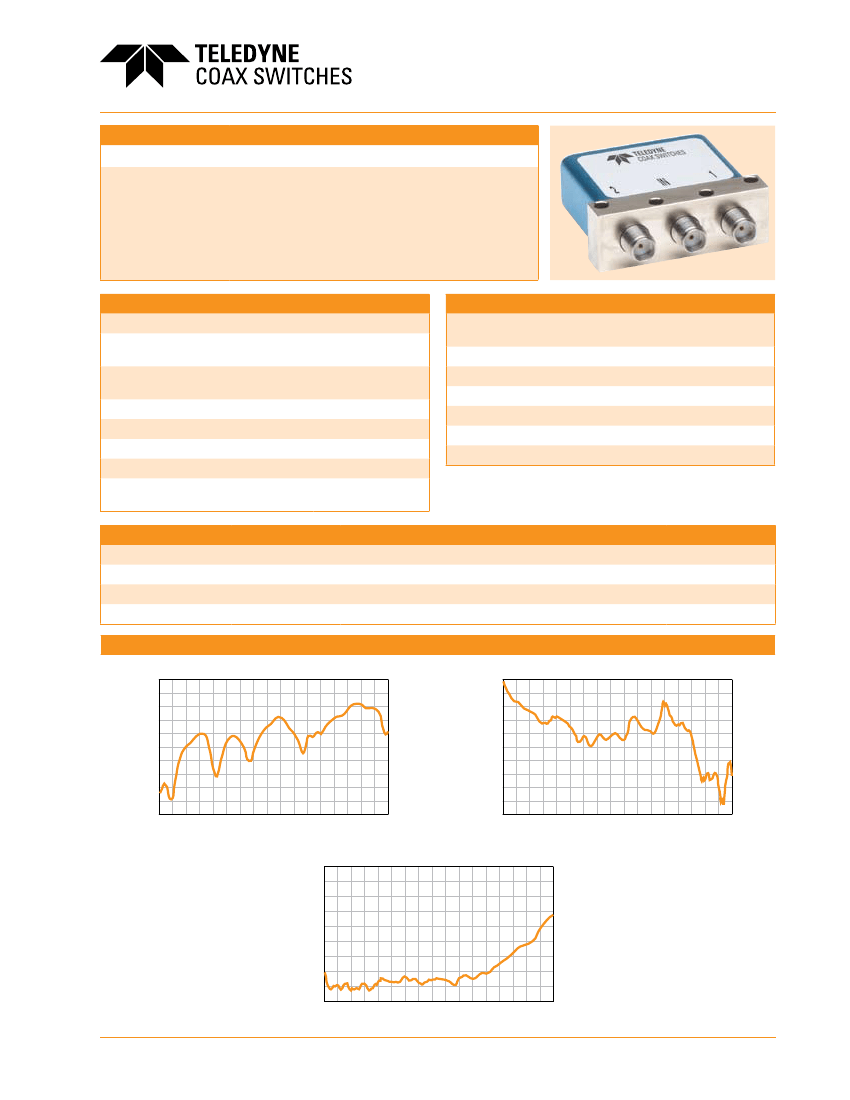

Miniature DC–33.5GHz Latching SPDT Coaxial Switch
Series CCR-33K
Series CCR-33K switches are broadband SPDT, electromechanical coaxial switches
designed for application frequencies above 26.5GHz. The CCR-33K offers excellent
insertion loss repeatability across the full bandwidth and ultra low intermodulation
(PIM) characteristic. The switch life is characterized at 5 million cycles. The
CCR-33K is designed to switch a microwave signal from a common input to either of
the two outputs. The characteristic impedance is 50 Ohms. The switches are small
with connector spacing compatible with K connectors. The design is compatible with
the two most common mounting hole patterns.
eNViRoNMeNTaL aND PHYSiCaL CHaRaCTeRiSTiCS
Operating Temperature
Vibration (MIL-STD-202 Method 214,
Condition D, non-operating)
Shock (MIL-STD-202 Method 213,
Condition D, non-operating)
Typical Contact
Life
RF Power
Connector Type
Humidity (Moisture Seal)
Weight
–40°C to 65°C
10 g’s RMS
Frequency Range
500 g’s
5,000,000
cycles
2W CW carry only
K or 2.92 mm
Available
1.65 oz. (46.78g)
(max.)
Characteristic Impedance
Operate Time
Release Time
Actuation Voltage Available
Actuation Current
eLeCTRiCaL CHaRaCTeRiSTiCS
Form Factor
SPDT,
break before make
DC–33.5 GHz
50
W
20 ms (max.)
20 ms (max.)
12
15
28
V
200 160 90 mA
PeRFoRMaNCe CHaRaCTeRiSTiCS
parameter
DC–6 GHz
0.20
70
1.20:1
6–12 GHz
0.40
70
1.40:1
12–18 GHz
0.50
70
1.50:1
18–26.5 GHz
0.60
50
1.50:1
26.5–33.5 GHz
0.75
40
1.70:1
Insertion Loss, dB
Isolation, dB
VSWR
TYPiCaL PeRFoRMaNCe CuRVeS
Return Loss
-5
-10
-15
-20
-25
0
-0.05
-0.1
-0.15
-0.2
Insertion Loss
dB
-30
-35
-40
-45
-50
-55
0
2
4
6
8
10 12 14 16 18 20 22 24 26 28 30 32 34
dB
-0.25
-0.3
-0.35
-0.4
-0.45
-0.5
0
2
4
6
8
10 12 14 16 18 20 22 24 26 28 30 32 34
Frequency (GHz)
Isolation
-5
-15
-25
-35
Frequency (GHz)
dB
-45
-55
-65
-75
-85
-95
0
2
4
6
8
10 12 14 16 18 20 22 24 26 28 30 32 34
Frequency (GHz)
© 2007 Teledyne Coax Switches
(800) 351-7368 • www.teledynecoax.com
CCR-33K Page 1
CCR-33KL Rev --
Series CCR-33K
Miniature DC–33.5GHz
Latching SPDT Coaxial Switch

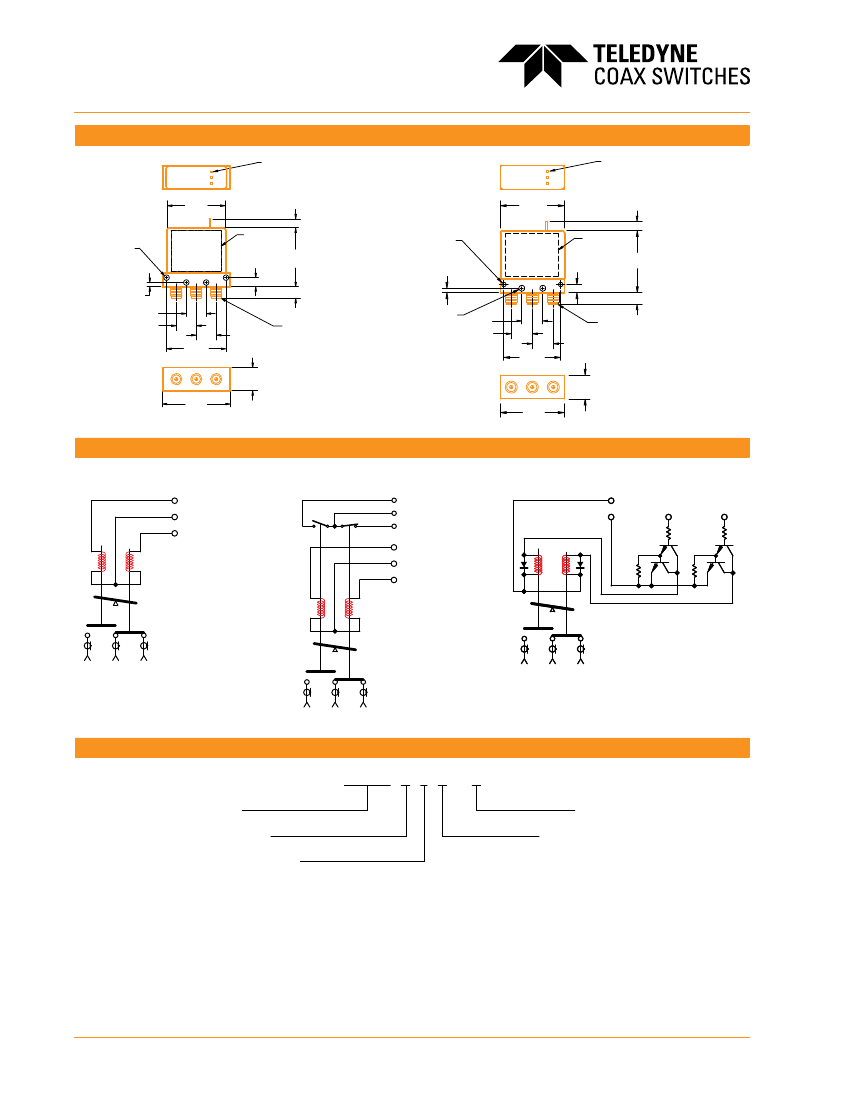

MeCHaNiCaL ouTLiNe
3X POWER INPUT TERMINALS.
+2
–C
+1
+2
–C
+1
3X POWER INPUT TERMINALS.
1.34
(34.03)
.250 (6.35) MAX
4X Ø.120 THRU
MTG HOLES
2
IN
1
1.34
(34.03)
.250 (6.35) MAX
2X Ø.093 THRU
MTG HOLES
MARKING
Optional Narrow Width Body
Standard Model
H H = 1.30 (33.02) MAX.
TTL Model
H = 1.80 (45.72) MAX.
.27 (6.86) MAX
2X Ø.120 THRU
MTG HOLES
.440 (11.17)
.440 (11.17)
1.190
(30.23)
.52 (13.21)
DIMENSIONS IN INCHES (MILLIMETERS)
.52 (13.21)
1.34
(30.04)
3X K FEMALE CONNECTOR
.440 (11.17)
MARKING
.200 (5.08)
.093 (2.36)
.440 (11.17)
.440 (11.17)
1.312
(33.32)
.440 (11.17)
Standard Width Body
Standard Model
H H = 1.30 (33.02) MAX.
TTL Model
H = 1.80 (45.72) MAX.
.27 (6.86) MAX
2X.093 (2.36)
2
IN
1
2X.170 (4.32)
3X K FEMALE CONNECTOR
1.50
(38.1)
SCHeMaTiC DiaGRaM
Latching Switch (Analog)
+2
-C
+1
Latching Switch with Indicator
B
C
A
Latching Switch with TTL Driver
Vsw
COM
LOGIC INPUT
2
1
}
POWER INPUT
TERMINALS
}
INDICATOR
TERMINALS
+2
-C
+1
}
POWER INPUT
TERMINALS
2
IN
1
2
IN
1
2
IN
1
PaRT NuMbeRiNG SYSTeM
CCR-33 K 6 C - N
Series
Connectors
Actuator Voltage
Connector
K:K Female
actuator Voltage
6: 28 Vdc Latching
7: 15 Vdc Latching
8: 12 Vdc Latching
actuator Type
O: No Indicator Contacts
C: Indicator Contacts
D: Self Cutoff Only
E: Indicators and Self Cutoff
options
T: TTL Drivers with Diodes
N: Narrow Body
R: Positive + Common
M: Moisture Seal
Options
Actuator Type
For other options, contact factory.
CCR-33K Page 2
Specifications are subject to change without notice
© 2007 Teledyne Coax Switches
CCR-33KL Rev --
